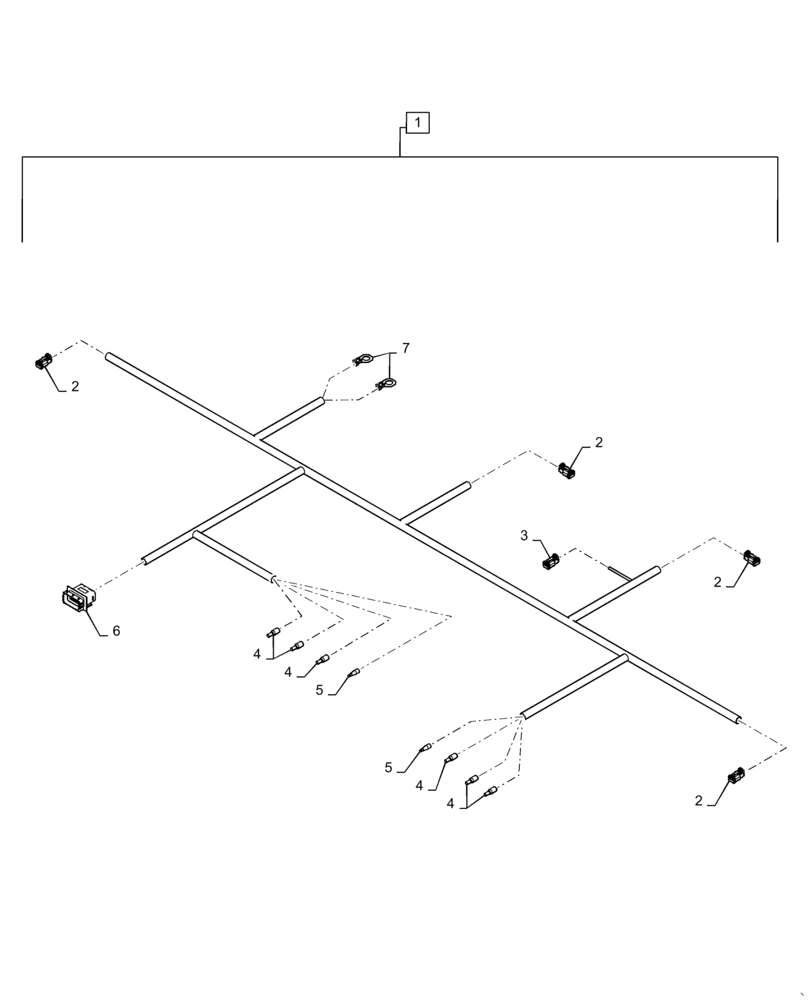

Запчасти Case 570N EP (55.100.DP[05]) - LOW PROFILE CANOPY WIRE HARNESS (55) - ELECTRICAL SYSTEMS

1

84386688

WIRE HARNESS

Complete, Incl 2 - 7

1шт.

2

84277193

ELEC CONNECTOR

RH Driving Lights, 2 Way Receptacle, X-653

1шт.

2

84277223

LOCK

X-653

1шт.

2

84277237

TERMINAL

X-653

2шт.

2

84277193

ELEC CONNECTOR

Rear Work Lights, 2 Way Receptacle, X-644

1шт.

2

84277223

LOCK

X-644

1шт.

2

84277237

TERMINAL

X-644

2шт.

2

84277193

ELEC CONNECTOR

Rear Work Lights, 2 Way Receptacle, X-645

1шт.

2

84277223

LOCK

X-645

1шт.

2

84277237

TERMINAL

X-645

2шт.

2

84277193

ELEC CONNECTOR

LH Driving Lights, X-654

1шт.

2

84277223

LOCK

X-654

1шт.

2

84277237

TERMINAL

X-654

2шт.

3

84277534

ELEC CONNECTOR

Rotating Beacon, 2 Way Receptacle, X-650

1шт.

3

84277220

LOCKING TAB,Wedge Lock

X-650

1шт.

3

84277237

TERMINAL

X-650

2шт.

4

84120010

TERMINAL CONNECTOR,Female, 1 Cavity

RH Rear Brake Light, 1 Way Receptacle, X-643

1шт.

4

84120010

TERMINAL CONNECTOR,Female, 1 Cavity

RH Rear Tail Light, X-642

1шт.

4

84120010

TERMINAL CONNECTOR,Female, 1 Cavity

RH Rear Turn Signal, X-640

1шт.

4

84120010

TERMINAL CONNECTOR,Female, 1 Cavity

LH LH Rear Turn Signal, X-648

1шт.

4

84120010

TERMINAL CONNECTOR,Female, 1 Cavity

LH Rear Tail Light, X-647

1шт.

4

84120010

TERMINAL CONNECTOR,Female, 1 Cavity

LH Rear Brake Light, X-646

1шт.

5

84120008

TERMINAL CONNECTOR,Female, 1 Cavity

Ground, X-641

1шт.

5

84120008

TERMINAL CONNECTOR,Female, 1 Cavity

Ground, X-649

1шт.

6

87714265

ELEC CONNECTOR

to Side Harness, 24 Way, X-551

1шт.

6

84128189

PLUG

X-551

17шт.

6

84190314

CABLE TERMINAL

X-551

2шт.

6

87708544

CABLE TERMINAL

X-551

4шт.

6

87747320

CABLE TERMINAL

X-551

1шт.

7

NSS

NOT SOLD SEPARAT

M10 Ground Terminal, X-656, Incl in 1

1шт.

7

NSS

NOT SOLD SEPARAT

M10 Ground Terminal, X-657, Incl in 1

1шт.
