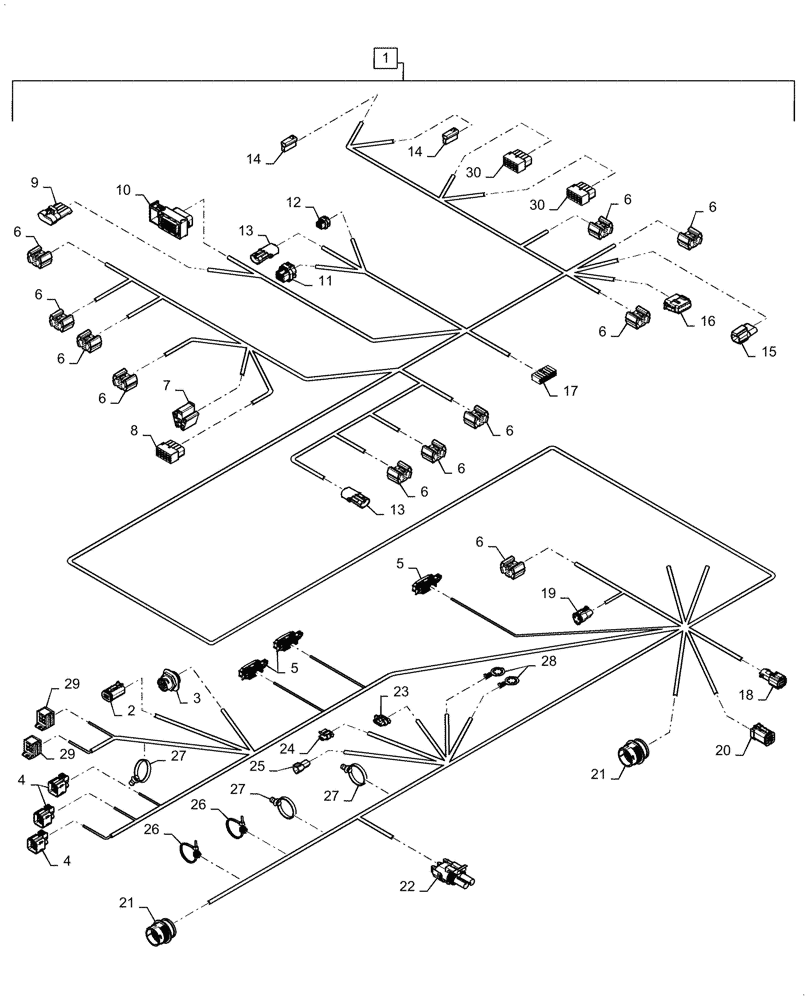

Запчасти Case 570N EP (55.100.DP[01]) - SIDE CONSOLE HARNESS (55) - ELECTRICAL SYSTEMS

1

47714167

WIRE HARNESS

Side Console Harness, Incl 2 - 30

1шт.

1

47714168

WIRE HARNESS

Side Console Harness, Incl 2 - 30

1шт.

2

87694101

ELEC CONNECTOR,Female, 4 Cavities

Telematics Diagnostic, 4 Way Recptacle, X - 499

1шт.

2

84068583

PLUG,12 - 16 Ga, White

X - 499

1шт.

2

87694148

ELEC CONNECTOR

X - 499

1шт.

2

84391166

WIRE CONNECTOR,Male, 4 Pins

X - 499

1шт.

2

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

X - 499

1шт.

3

87736919

CONTACT HOUSING,Female, 9 Pole

Main Diagnostic, 9 Way Receptacle, X - 009

1шт.

3

87737472

JAM NUT,Hex, M35 x 1

X - 009

1шт.

3

87737474

LID

X - 009

1шт.

3

84068583

PLUG,12 - 16 Ga, White

X - 009

4шт.

4

84471904

HOLDER

Power Relay 1, 4 Way Receptacle, X - 016

1шт.

4

84471904

HOLDER

Power Relay 2, 4 Way Receptacle, X - 017

1шт.

4

84471904

HOLDER

Power Relay 3, 4 Way Receptacle, X - 018

1шт.

4

84301901

TERMINAL

20 GA

2шт.

4

84301909

8 GA

TERMINAL

2шт.

5

84380518

FUSE BOX

Fuse Block, 48 Way Recptacle, X - 012

1шт.

5

84342278

CONNECTING BLOCK

TPA, X - 012

6шт.

5

87686742

PLUG

X - 012

4шт.

5

87680656

CONTACT

X - 012

36шт.

5

87686739

CABLE TERMINAL,Female, Tin, 2.00 - 3.00mm

X - 012

7шт.

5

84286327

SEAL

X - 012, Use with 87680656

4шт.

5

87680710

SEAL

X - 012, Use with 87686739

7шт.

5

48079529

SEAL

Blue, Cover, X - 012

1шт.

5

84380518

FUSE BOX

Fuse Block, 48 Way Recptacle, X - 013

1шт.

5

84342278

CONNECTING BLOCK

TPA, X - 013

6шт.

5

87686742

PLUG

X - 013

6шт.

5

87680656

CONTACT

X - 013

37шт.

5

87686739

CABLE TERMINAL,Female, Tin, 2.00 - 3.00mm

X - 013

4шт.

5

84286327

SEAL

X - 013, Use with 87680656

6шт.

5

87680710

SEAL

X - 013, Use with 87686739

4шт.

5

48079529

SEAL

Blue, Cover, X - 013

1шт.

5

84380518

FUSE BOX

Fuse Block, 48 Way Recptacle, X - 014

1шт.

5

84342278

CONNECTING BLOCK

TPA, X - 014

6шт.

5

87686742

PLUG

X - 014

16шт.

5

87680656

CONTACT

X - 014

30шт.

5

87686739

CABLE TERMINAL,Female, Tin, 2.00 - 3.00mm

X - 014

2шт.

5

87680710

SEAL

X - 014, Use with 87686739

2шт.

5

48079529

SEAL

Blue, Cover, X - 014

1шт.

6

87697780

ELEC CONNECTOR,Female, 6 Cavities

Differencial Lock Switch, 6 Way Receptacle, X - 187

1шт.

6

87697780

ELEC CONNECTOR,Female, 6 Cavities

Front Work Lights Switch, X - 137

1шт.

6

87697780

ELEC CONNECTOR,Female, 6 Cavities

Driving Lights Switch, X - 138

1шт.

6

87697780

ELEC CONNECTOR,Female, 6 Cavities

4WD Switch, X - 023

1шт.

6

87697780

ELEC CONNECTOR,Female, 6 Cavities

Ride Control Switch, X - 024

1шт.

6

87697780

ELEC CONNECTOR,Female, 6 Cavities

Rear Worklights, X - 112

1шт.

6

87697780

ELEC CONNECTOR,Female, 6 Cavities

3 Point Hitch, X - 147

1шт.

6

87697780

ELEC CONNECTOR,Female, 6 Cavities

PTO Switch, X - 231

1шт.

6

87697780

ELEC CONNECTOR,Female, 6 Cavities

Rotating Beacon, X - 118

1шт.

6

87697780

ELEC CONNECTOR,Female, 6 Cavities

Dome Light, X - 120

1шт.

6

87697780

ELEC CONNECTOR,Female, 6 Cavities

Loader Coupler, X - 145

1шт.

7

87693713

ELEC CONNECTOR,Female, 6 Cavities

Ignition Switch, 6 Way Receptacle, X - 021

1шт.

8

84159859

ELEC CONNECTOR,Female, 10 Cavities

SAHR Brake Switch, 10 Way Receptacle, X - 098

1шт.

9

87697723

ELEC CONNECTOR,Male, 4 Cavities

Radio Speakers, 4 Way Receptacle, X - 105

1шт.

9

87689643

CLIP,4.8mm ID

X - 105

1шт.

10

87699386

MULTIPOLE CONNECTOR,Female, 24 Pole

to Cab Harness, 24 Way Receptacle, X - 020

1шт.

10

87714248

LOCKING TAB,Wedge Lock

X - 020

1шт.

10

84128189

PLUG

X - 020

3шт.

11

82016219

MULTIPOLE CONNECTOR,Female, 26 Pole

Instrument Cluster, 26 Way Receptacle, X - 028

1шт.

11

82017049

PLUG

X - 028

8шт.

12

82028493

MULTIPOLE CONNECTOR,Female, 26 Pole

Instrument Cluster, 26 Way Receptacle, X - 029

1шт.

12

82017049

PLUG

X - 029

11шт.

13

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Audible Alarm, 2 Way Receptacle, X - 030

1шт.

14

87697531

ELEC CONNECTOR,Female, 2 Cavities

Power Socket, 2 Way Receptacle, X - 182

1шт.

14

87697531

ELEC CONNECTOR,Female, 2 Cavities

Power Socket, 2 Way Receptacle, X - 181

1шт.

15

87711966

PLUG

PTO Diode, 2 Way Receptacle, X - 149

1шт.

15

87712180

ELEC CONNECTOR

X - 149

1шт.

15

84535086

DIODE

PTO, X - 149

1шт.

16

87700156

CONTACT HOUSING,Female, 12 Pole

Telematics Module, X - 498

1шт.

16

84807680

PLUG

X - 498

4шт.

16

87705198

WEDGE

X - 498

1шт.

16

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

X - 498

1шт.

16

87700155

ELEC CONNECTOR,Female, 12 Cavities

X - 498

1шт.

17

84164979

ELEC CONNECTOR

Radio, 13 Way Receptacle, X - 109

1шт.

18

84364890

ELEC CONNECTOR

Battery Power, 1 Way Receptacle, X - 123

1шт.

18

84423683

STOP

X - 123

1шт.

19

84277203

ELEC CONNECTOR

Hand Throttle, 3 Way Receptacle, X - 033

1шт.

19

84277224

LOCKING TAB,Wedge Lock

X - 033

1шт.

20

47416268

WIRE CONNECTOR

PTO Option to Jumper, 6 Way Receptacle, X - 084

1шт.

20

87694149

ELEC CONNECTOR

X - 084

1шт.

20

84068583

PLUG,12 - 16 Ga, White

X - 084

1шт.

21

84365917

ELEC CONNECTOR

To Front, 47 Way, X - 150

1шт.

21

87271930

NUT

X - 150

1шт.

21

84365917

ELEC CONNECTOR

X - 150

1шт.

21

87271930

NUT

X - 150

1шт.

21

84365916

WIRE CONNECTOR

X - 150

1шт.

21

84807680

PLUG

X - 150

17шт.

22

87692855

CONTACT HOUSING,Male, 2 Cavities

De-Clutch, 2 Way, X - 008

1шт.

23

87697724

ELEC CONNECTOR,Female, 4 Cavities

Loader Control, 4 Way Receptacle, X - 002

1шт.

23

87689643

CLIP,4.8mm ID

X - 002

1шт.

23

87689636

PLUG,Red, Taxi Seal Connector Cavity

X - 002

1шт.

24

87693821

ELEC CONNECTOR,Female, 2 Cavities

EH Clam, 2 Way Receptacle, X - 039

1шт.

24

87705073

STOP LOCK

X - 039

1шт.

25

84277204

ELEC CONNECTOR

To Washer Bottle, 3 Way Receptacle, X - 130

1шт.

25

84277225

WIRE CONNECTOR

X - 130

1шт.

26

84536921

CABLE TIE,203.2mm L

Cable Tie With Fir Tree

2шт.

27

87668737

CABLE TIE,203.2mm L, Nylon, Black

Cable Tie With Fir Tree

3шт.

28

87486319

TERMINAL

M10 Ring Terminal

1шт.

29

84153826

HOLDER

Timer/Holder, 9 Way Receptacle, X - 148

1шт.

29

84153826

HOLDER

Flasher/Holder, 9 Way Receptacle, X - 010

1шт.

30

84159859

ELEC CONNECTOR,Female, 10 Cavities

Enter/ESC Switch, X - 026

1шт.

30

84159859

ELEC CONNECTOR,Female, 10 Cavities

Up/Down Switch, X - 027

1шт.
