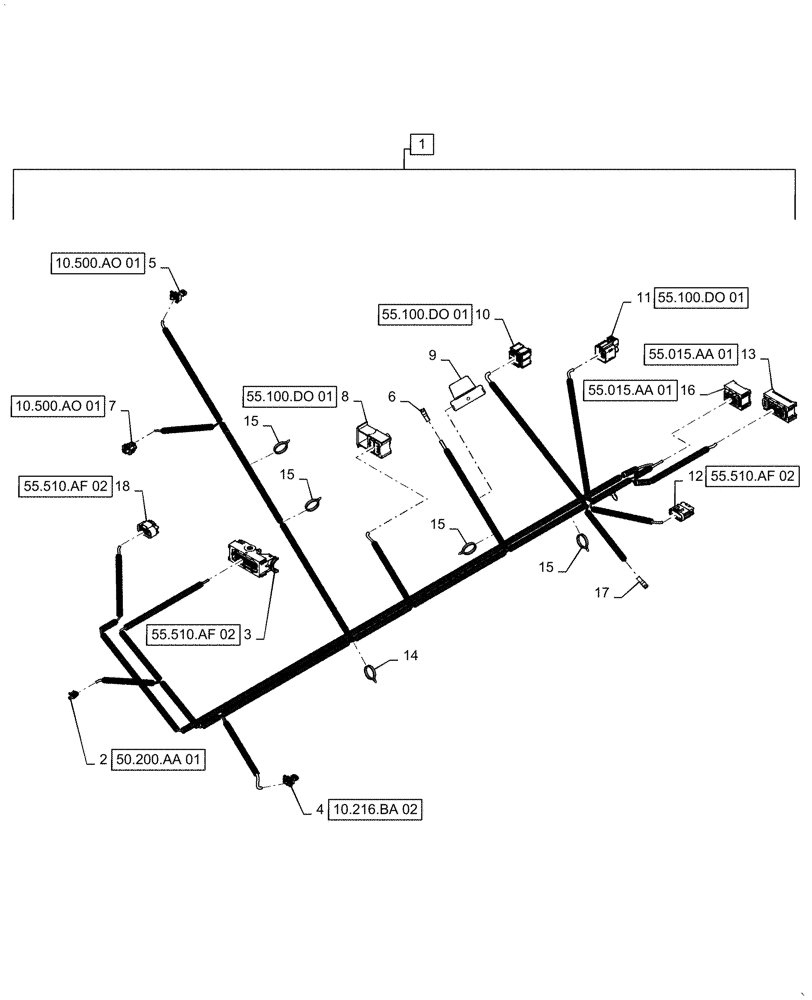

Запчасти Case 570N EP (55.015.AB[04]) - ENGINE WIRE HARNESS - BSN NHC739062 (55) - ELECTRICAL SYSTEMS

1

47714192

WIRE HARNESS

Assembly, Engine, Incl 2 - 13, 16 - 18

1шт.

2

87687239

CONTACT HOUSING,Female, 1 Pole

A/C Clutch, X - 473

1шт.

3

84154706

ELEC CONNECTOR,Female, 62 Cavities

62 Way Receptacle, Engine Interface, X - 470

1шт.

3

84154659

WIRE CONNECTOR

Cover, X - 470

1шт.

4

87709663

ELEC CONNECTOR,Female, 3 Cavities

3 Way Receptacle, Water In Fuel Switch, X - 463

1шт.

5

84607243

ELEC CONNECTOR,Female, 2 Cavities

2 Way Receptacle, Air Temp Sensor, X - 474

1шт.

6

84401295

TERMINAL

Ring Terminal, Battery Power, X-508

1шт.

7

87709793

WIRE CONNECTOR,Female, 2 Cavities

2 Way Receptacle, Gas Temp Sensor, X - 476

1шт.

8

84356962

WIRE CONNECTOR,Female, 8 Cavities

9 Way Receptacle, GCU, X - 469

1шт.

9

84177914

FUSE HOLDER

In Line Fuse Holder, GCU Fuse Holder (60A), X - 466

1шт.

10

84423679

MODULE

8 Way Receptacle, Fuse Block, X - 448

1шт.

10

84520004

RETAINER

X - 448

1шт.

11

84471904

HOLDER

Holder, 4 Way Receptacle, Main Relay, X - 464

1шт.

11

84301901

TERMINAL

X - 464, 20 GA

2шт.

11

84301909

X - 464, 8 GA

TERMINAL

2шт.

12

87698254

ELEC CONNECTOR

10 Way Receptacle, Engine Interface to Front, X - 496

1шт.

12

87694140

ELEC CONNECTOR

X - 496

1шт.

12

87745379

PLUG

X - 496

5шт.

13

84474047

ELEC CONNECTOR,Female, 94 Cavities

94 Way Receptacle, ECU, X - 461

1шт.

13

84474050

ELEC CONNECTOR

X - 461

1шт.

13

84474552

ELEC CONNECTOR

X - 461

1шт.

13

84474553

WIRE CONNECTOR

X - 461

1шт.

13

84474555

RETAINER

X - 461

1шт.

14

84209958

MOUNT

Retention Clip

1шт.

14

84292402

CABLE TIE,203mm L

Retention Clip

2шт.

15

87668737

CABLE TIE,203.2mm L, Nylon, Black

Cable Tie With Fir Tree Clip

5шт.

16

84474053

ELEC CONNECTOR,Female, 60 Cavities

60 Way Receptacle, ECU, X - 462

1шт.

16

84474054

WIRE CONNECTOR

X - 462

1шт.

16

84474554

ELEC CONNECTOR

X - 462

1шт.

16

84474556

RETAINER

X - 462

1шт.

17

84398828

TERMINAL,3/8" Ring, SAE 8

Ring Terminal, Grd Stud Inside Firewall, X-510

2шт.

18

87698252

ELEC CONNECTOR,Female, 10 Cavities

10 Way Receptacle, Electric Valve, X - 471

1шт.

18

87694140

ELEC CONNECTOR

X - 471

2шт.
