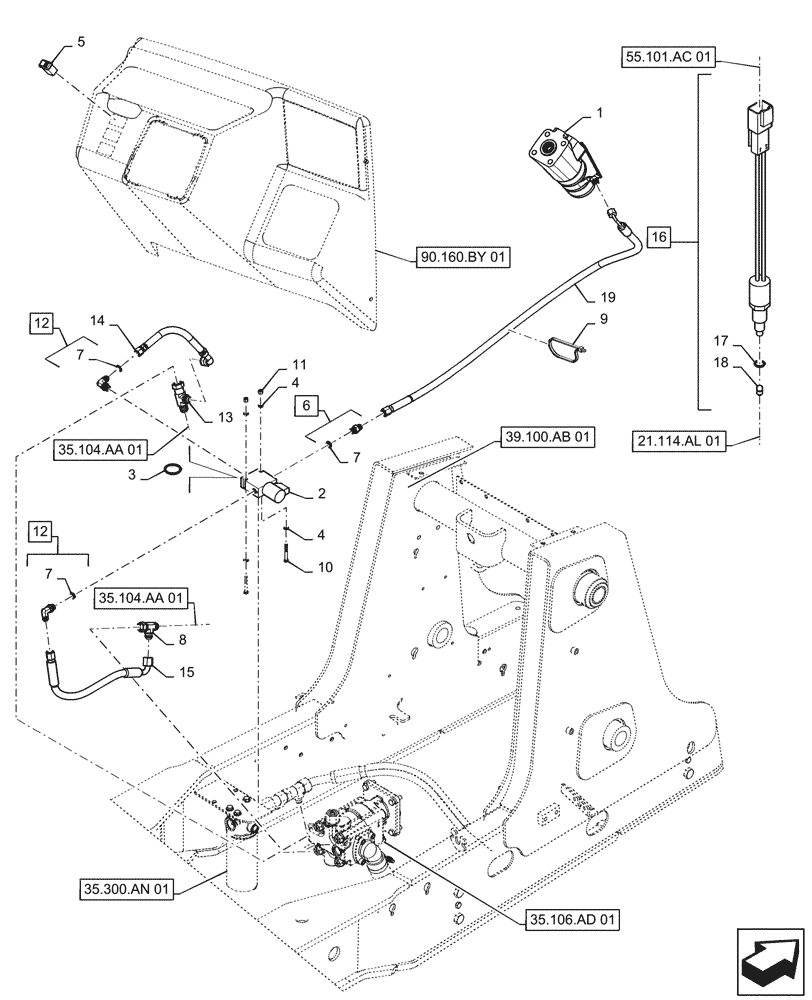

Запчасти Case 570N EP (41.910.AA[01]) - VAR - 423011 - COMFORT STEERING, 4WD (41) - STEERING

1

84379517

PUMP

Steering, Dual Displacement

1шт.

2

87382811

SOLENOID VALVE

2 Position, 3 Way

1шт.

3

329483A1

SEAL KIT

Services Ref 2

1шт.

4

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

4шт.

5

87585817

SWITCH

Fast Steer, Comfort

1шт.

6

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 7

2шт.

7

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Incl in 6, 12

1шт.

8

86511870

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

9

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.

10

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

2шт.

11

393392

LOCK NUT,Prev Torque, M6 x 1, Cl 8

2шт.

12

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 7

1шт.

13

86632549

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run x 3/4"-16 Br

1шт.

14

47933026

HYDRAULIC HOSE,10mm ID, 530mm L, SAE100R6

Fast Steer Return, Used with Shimadzu Pump

1шт.

15

47982549

HYDRAULIC HOSE

Fast Steer Pressure, Used with Shimadzu Pump

1шт.

16

87578910

SENSOR

Transmission Shift Position, Incl 17 - 18

1шт.

17

87578908

O-RING,0.103" Thk x 0.237" ID, -108, Cl 6, 90 Duro

1шт.

18

NSS

NOT SOLD SEPARAT

Pin, Position Sensor, Incl In 16

1шт.

19

84356649

HOSE ASSY.

Dual Speed Steer Pilot

1шт.
