(41.200.BD[02]) - HYDRAULIC STEERING VALVE

Запчасти Case 570N EP (41.200.BD[02]) - HYDRAULIC STEERING VALVE (41) - STEERING

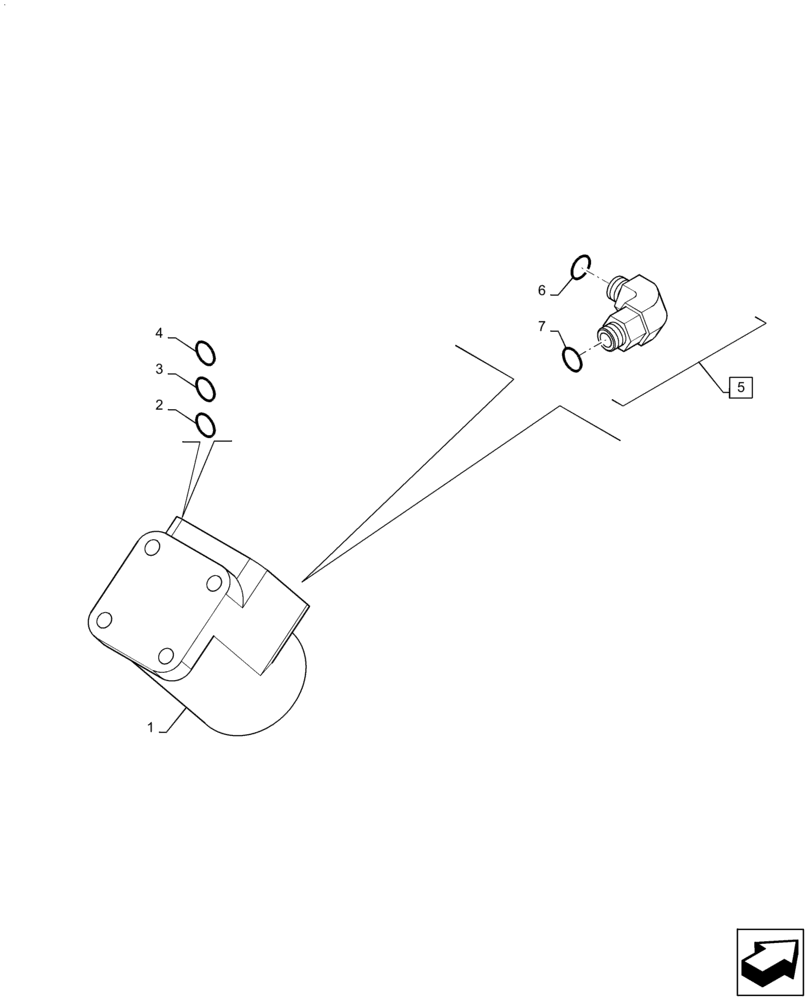

Схема запчастей Case 570N EP - (41.200.BD[02]) - HYDRAULIC STEERING VALVE (41) - STEERING
7
2
1
4
5
6
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87751598

STEERING VALVE

Valve Assy

1шт.

2

87661956

SEAL KIT

Services Ref 1

1шт.

3

87661957

HYD PUMP REPAIR KIT

Services Ref 1

1шт.

4

87661958

HYD PUMP REPAIR KIT

Services Ref 1

1шт.

5

9992307

90 ELBOW,90 Degree, 13/16"-16 x 3/4"-16 Adj, ORFS

Incl 6 - 7

1шт.

6

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

Выбрано товаров: 7
