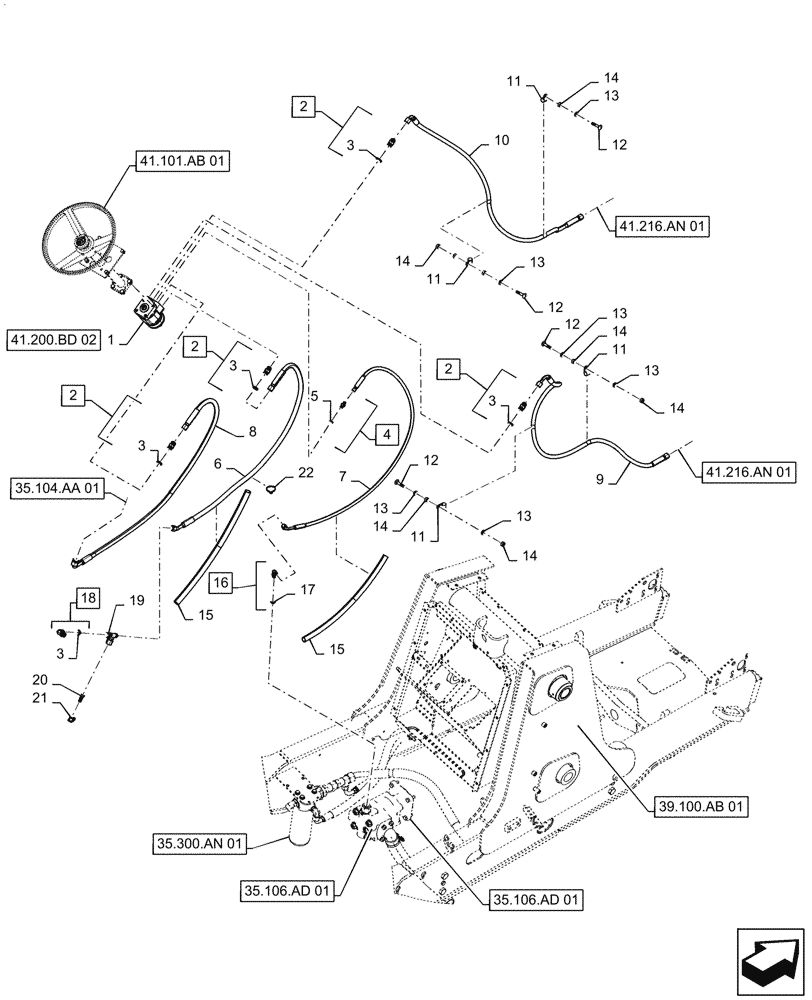

Запчасти Case 570N EP (41.200.BD[01]) - HYDRAULIC STEERING LINES (41) - STEERING

1

87751598

STEERING VALVE

Valve, Load Sense, Dynamic Signal

1шт.

See Fig 41.200.BD (02) For Service Parts

1шт.

2

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 3

4шт.

3

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Incl in 2, 18

4шт.

4

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

Incl 5

1шт.

5

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Incl in 4

1шт.

6

47394127

HOSE

Steering Pressure

1шт.

7

47394129

HOSE

Steering Pilot

1шт.

8

47604822

HYDRAULIC HOSE

Steering Return

1шт.

9

84368621

HYDRAULIC HOSE

LH Steering

1шт.

10

84368895

HYDRAULIC HOSE

RH Steering

1шт.

11

86624005

CLAMP,19mm, Coat, 10.3mm Bolt Hole, P Type

4шт.

12

86512426

CARRIAGE BOLT,Sq Nk, M10 x 50mm, Cl 8.8

4шт.

13

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

7шт.

14

86500689

NUT,M10 x 1.5, Cl 10

7шт.

15

87452021

PROTECTIVE SLEEVE,19mm ID x 650mm L

Hose

2шт.

16

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 17

1шт.

17

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Incl in 16

1шт.

18

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 3

1шт.

19

86511870

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

20

192834A1

COUPLING

Diagnostic Tube

1шт.

21

H434163

DUST CAP

1шт.

22

L11541

CABLE TIE,203.2mm L, Nylon

1шт.
