(39.140.AM[01]) - VAR - 747899 - REAR COUNTERWEIGHT WITH PTO ACCESS, 600 LBS

Запчасти Case 570N EP (39.140.AM[01]) - VAR - 747899 - REAR COUNTERWEIGHT WITH PTO ACCESS, 600 LBS (39) - FRAMES AND BALLASTING

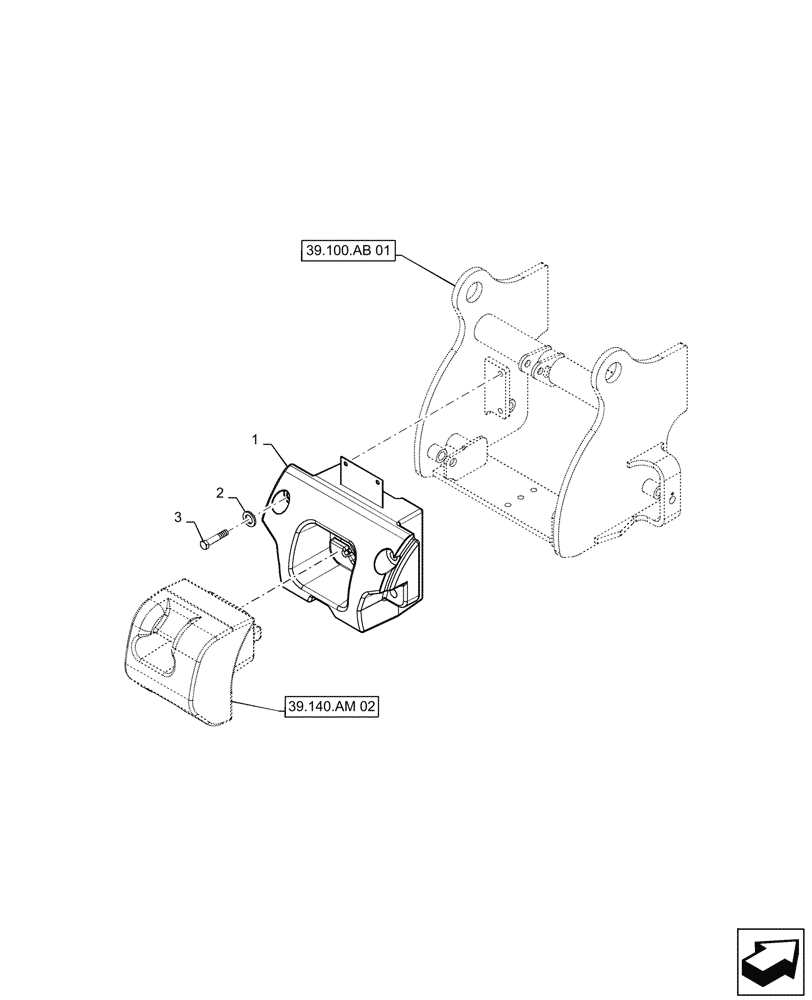

Схема запчастей Case 570N EP - (39.140.AM[01]) - VAR - 747899 - REAR COUNTERWEIGHT WITH PTO ACCESS, 600 LBS (39) - FRAMES AND BALLASTING
39.100.ab 01
3
2
1
39.140.am 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87695373

COUNTERWEIGHT

With PTO Access, 600 LBS

1шт.

2

87313544

WASHER,22mm ID x 44mm OD x 5 mm Thk

4шт.

3

87516998

SPECIAL BOLT,Hex, M20 x 2.5 x 100mm, Class 10.9

4шт.
