(35.701.BR[01]) - HYD CONNECTOR, W/O RIDE CONTROL

Запчасти Case 570N EP (35.701.BR[01]) - HYD CONNECTOR, W/O RIDE CONTROL (35) - HYDRAULIC SYSTEMS

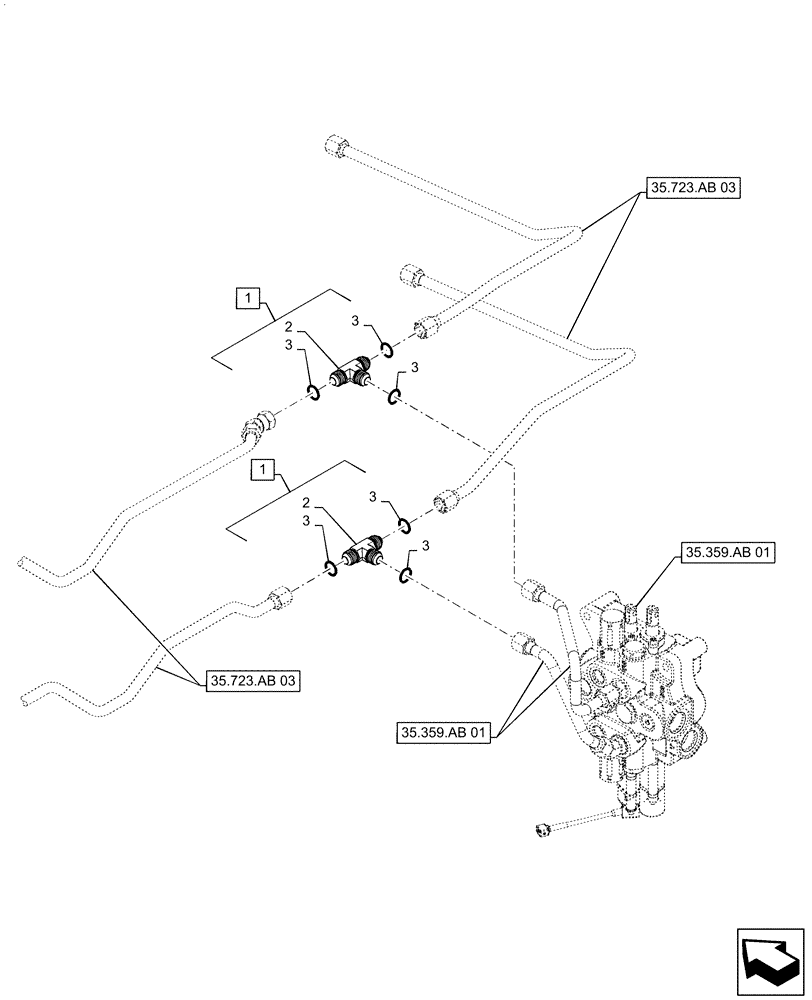

Схема запчастей Case 570N EP - (35.701.BR[01]) - HYD CONNECTOR, W/O RIDE CONTROL (35) - HYDRAULIC SYSTEMS
35.723.ab 03
1
3
3
2
3
3
1
3
2
3
35.359.ab 01
35.359.ab 01
35.723.ab 03
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

16985

TEE,7/8"-14, 37 Degree

Assembly, Incl 2 (Qty 1), 3 (Qty 3)

2шт.

2

NSS

NOT SOLD SEPARAT

Tee, Incl in 1

2шт.

3

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

6шт.
