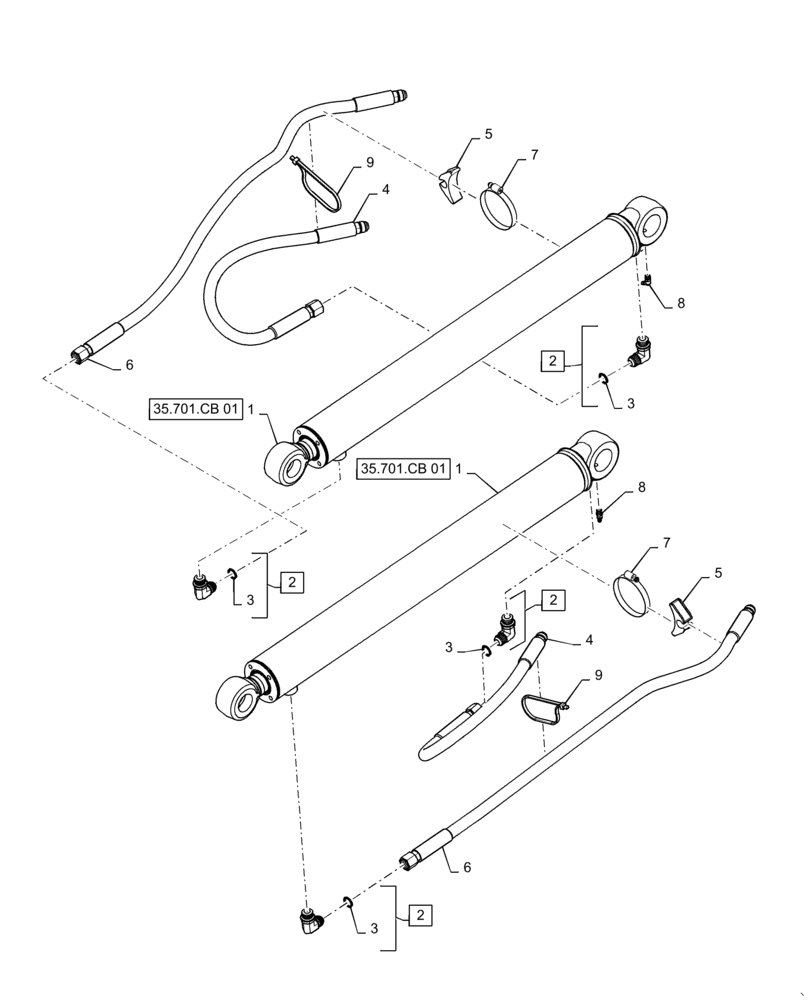

Запчасти Case 570N EP (35.701.AX[01]) - HYDRAULIC LINES, LOADER LIFT CYLINDER (35) - HYDRAULIC SYSTEMS

1

87384876

LIFT CYLINDER,Double Acting, 44.4mm Rod, 766mm Stroke

82.6mm x 44.4mm CE Gray

2шт.

See Fig 35.701.CB (01) For Service Parts

1шт.

1

87384876R

REMAN-HYD CYLINDER

82.6mm x 44.4mm

2шт.

1

87384876C

CORE-HYD CYLINDER

Return Number

2шт.

2

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

Incl 3

4шт.

3

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Used On Ref 2

4шт.

4

378172A1

HOSE ASSY.,9.53mm ID x 720mm L

Lift Cylinder Head End

2шт.

5

D142787

SPACER

Tube Support

2шт.

6

378173A1

HOSE ASSY.,9.53mm ID x 1090mm L

Lift Cylinder Rod End

2шт.

7

86625034

HOSE CLAMP,90.4mm - 114.3mm, Worm Gear

2шт.

8

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

2шт.

9

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.
