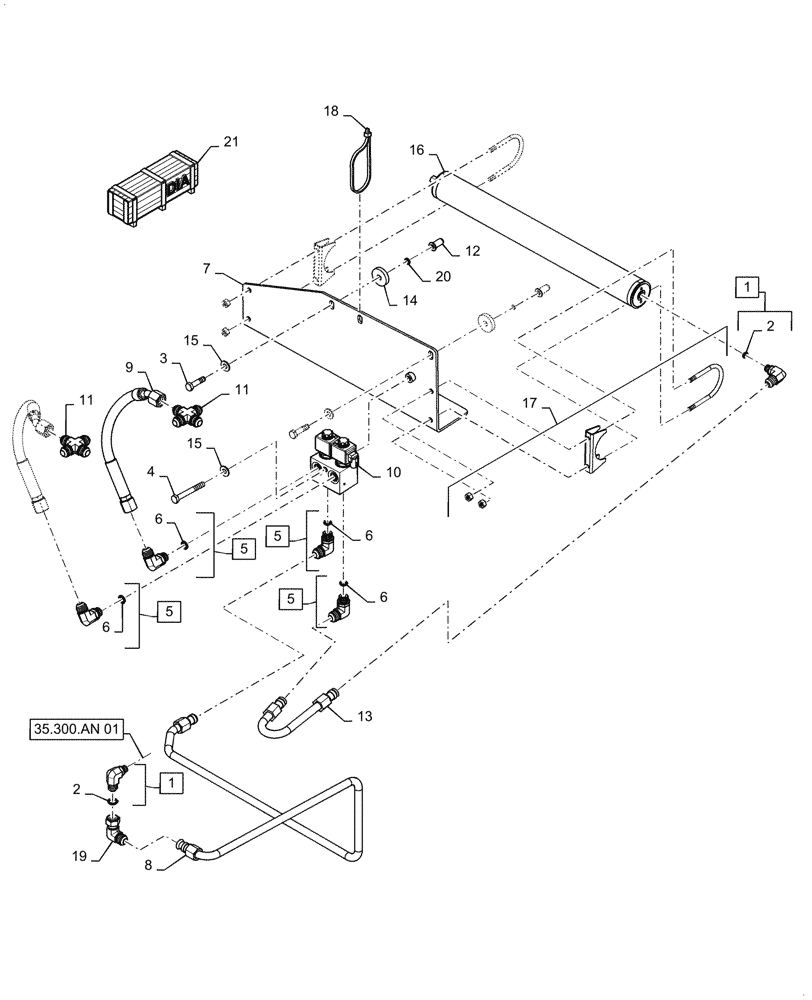

Запчасти Case 570N EP (35.701.AA[01]) - VAR - 747873 - ACCUMULATOR, RIDE CONTROL (35) - HYDRAULIC SYSTEMS

1

218-5600

ELBOW,90 Degree, 7/8"-14, 37 Degree x 3/4"-16, O-Ring

Incl 2

2шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

3

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

4

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

1шт.

5

86527

90 ELBOW,7/8" - 14 JIC x 3/4" - 16 ORB

Incl 6

4шт.

6

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

4шт.

7

47442464

BRACKET

Ride Control

1шт.

8

47606024

HYD TUBE

Ride Control T Port

1шт.

9

47606038

HYDRAULIC HOSE,12.5mm ID x 455mm L

Ride Control P1 & P2

2шт.

10

84348784

SOLENOID VALVE

Ride Control

1шт.

11

86513044

UNION CROSS,7/8" - 14 JIC x 7/8" - 14 JIC x 7/8" - 14 JIC x 7/8" - 14 JIC

2шт.

12

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

2шт.

13

87420696

HYD TUBE

1шт.

14

87423067

SPACER,11mm ID x 40mm OD x 8mm L

2шт.

15

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

3шт.

16

448284A1

ACCUMULATOR,275 Bar

Ride Control

1шт.

17

A13240

CLAMP,2-5/8" ID

2шт.

18

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.

19

182977

90 ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

20

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

2шт.

21

47879930

CONSTRUCTION DIA

DIA Kit, Ride Control (Order from Wholegoods Only) Incl 1 - 18

1шт.

To See the Full DIA Kit Composition Look For All the Figures Where the DIA Kit P/N is Shown

1шт.
