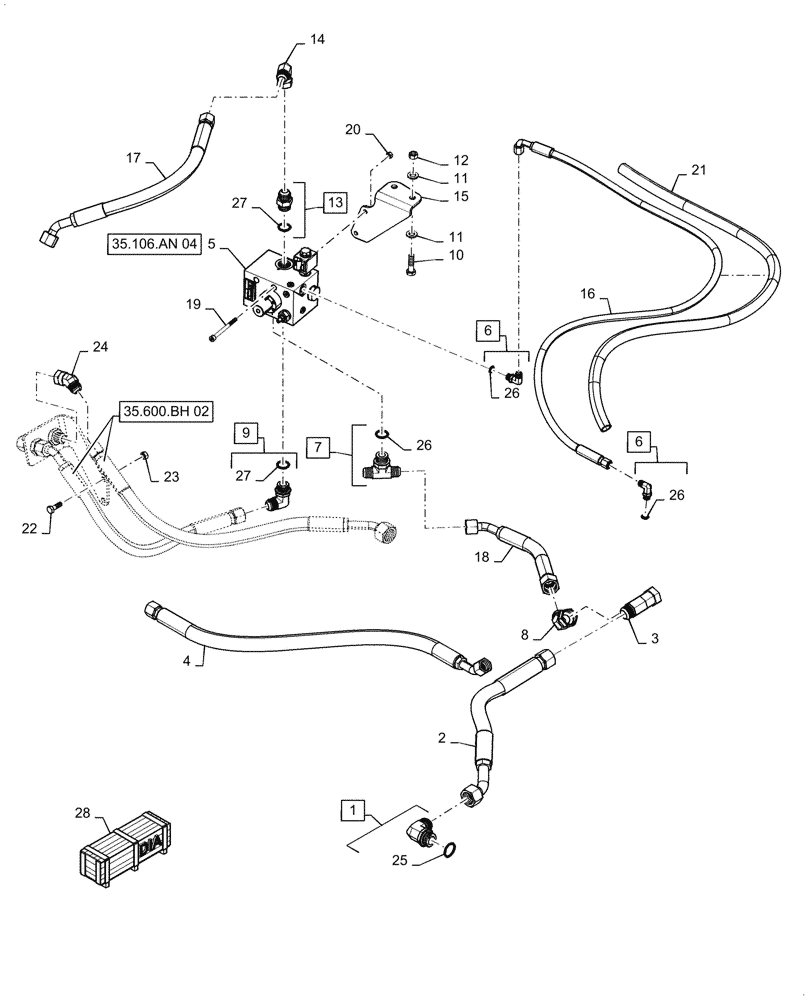

Запчасти Case 570N EP (35.600.BH[03]) - HIGH FLOW, AUXILIARY (35) - HYDRAULIC SYSTEMS

1

268277

90 ELBOW,1-5/16" - 12 JIC x 1-5/16" - 12 ORB

Incl 25

1шт.

2

84483645

HYDRAULIC HOSE,25mm ID x 508mm L, SAE 100R4

Return

1шт.

3

9618946

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12, Fem Sw Run

1шт.

4

47614849

HYDRAULIC HOSE,19mm ID x 885mm L, SAE 100R16

PTO Pump Pressure

1шт.

5

47569744

VALVE

1шт.

6

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 26

2шт.

7

87622774

TEE,-12, Male 37 Degree Fl, 1 1/16"-12, Adj Str Thd OR, Br

Incl 27

1шт.

8

86512961

45 ELBOW,45 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

1шт.

9

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 27

1шт.

10

412087

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.

11

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

4шт.

12

337475

NUT,M12, Cl 10

2шт.

13

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 27

1шт.

14

219603

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12, 37 Degree Fem Sw

1шт.

15

47721226

BRACKET

PTO Valve Mounting

1шт.

16

47616439

HYDRAULIC HOSE,10mm ID x 1760mm L, SAE 100R16

PTO Valve to Tank

1шт.

17

47616525

HYDRAULIC HOSE,19mm ID x 580mm L, SAE 100R16

PTO Supply

1шт.

18

47723531

HYDRAULIC HOSE,19mm ID x 375mm L, SAE 100R6

PTO Valve Return

1шт.

19

1960667

HEX SOC SCREW,M8 x 90mm, Cl 8.8

2шт.

20

43362

NUT,M8 x 1.25, Cl 10

2шт.

21

87491619

GUARD,19.1mm ID x 1400mm L

1шт.

22

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

23

86500689

NUT,M10 x 1.5, Cl 10

2шт.

24

219605

ELBOW,45 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

25

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

26

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

27

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3шт.

28

47634751

KIT

DIA Kit, Hi Flow Aux (Order from Whoelgoods Only) Incl 1 - 27

1шт.

To See the Full DIA Kit Composition Look For All the Figures Where the DIA Kit P/N is Shown

1шт.
