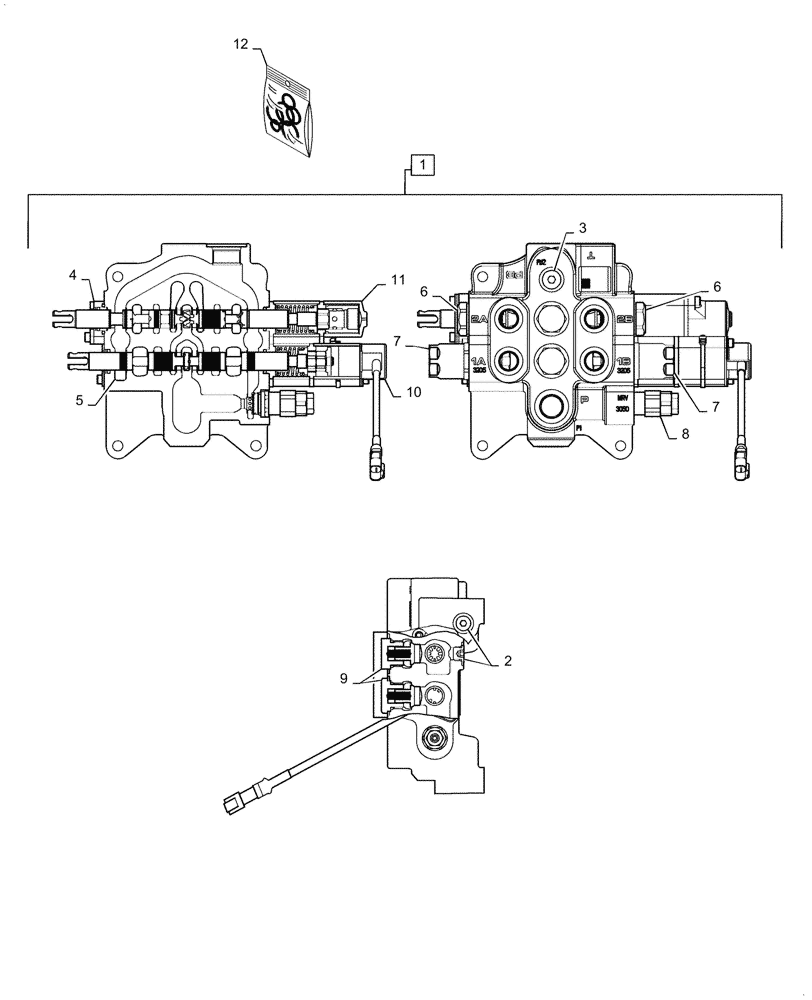

Запчасти Case 570N EP (35.359.AB[07]) - LOADER CONTROL VALVE, 2 SPOOL (35) - HYDRAULIC SYSTEMS

1

47603157

VALVE

2 Spool, Incl 2 - 11

1шт.

2

9625178

PLUG,9/16" - 18 ORB

Incl 13

2шт.

3

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

Incl 14

1шт.

4

84327674

KIT

Seal Plate Assy

1шт.

5

84315193

SEAL

Plate Assy

1шт.

6

81868381

CHECK VALVE,1-1/16" - 12

Anti Void Assy

2шт.

7

47537935

VALVE PRESSURE RELIE,221 Bar

2шт.

8

87610350

VALVE PRESSURE RELIE

1шт.

9

87426238

VALVE, CHECK

Incl 15

2шт.

10

87426227

DETENT

Endcap W/ Detent

1шт.

11

84296814

KIT

RTD End Group

1шт.

12

84296788

SEAL KIT

1шт.

13

272217

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

2шт.

14

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

15

87455975

O-RING

2шт.
