(35.359.AB[06]) - 4 IN 1 CONTROL VALVE, W ACCUMULATOR, ASSY

Запчасти Case 570N EP (35.359.AB[06]) - 4 IN 1 CONTROL VALVE, W ACCUMULATOR, ASSY (35) - HYDRAULIC SYSTEMS

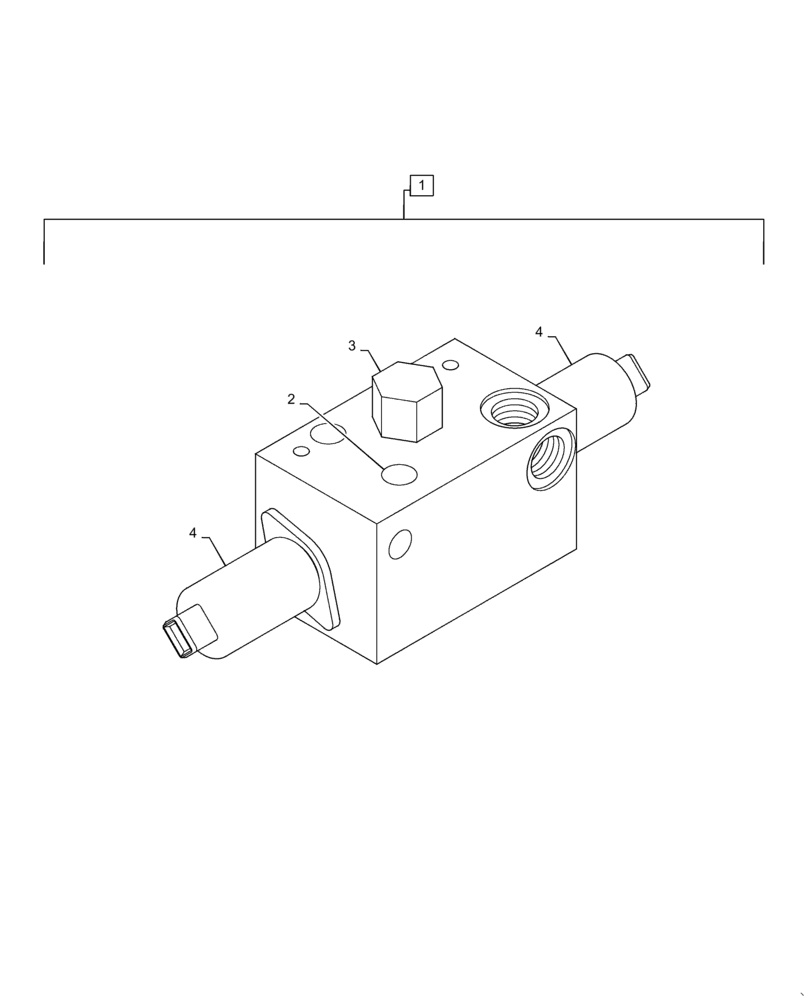

Схема запчастей Case 570N EP - (35.359.AB[06]) - 4 IN 1 CONTROL VALVE, W ACCUMULATOR, ASSY (35) - HYDRAULIC SYSTEMS
3
4
2
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47765053

CONTROL VALVE

4 in 1, With Check Valve & Accumulator, Incl 2 - 4

1шт.

2

87311363

ORIFICE,1.8mm ID

1шт.

3

47761897

VALVE, PRESSURE CONT

Reducing

1шт.

4

85827993

SOLENOID VALVE

2шт.

Выбрано товаров: 4
