(35.300.AN[01]) - HYDRAULIC OIL FILTER ASSY

Запчасти Case 570N EP (35.300.AN[01]) - HYDRAULIC OIL FILTER ASSY (35) - HYDRAULIC SYSTEMS

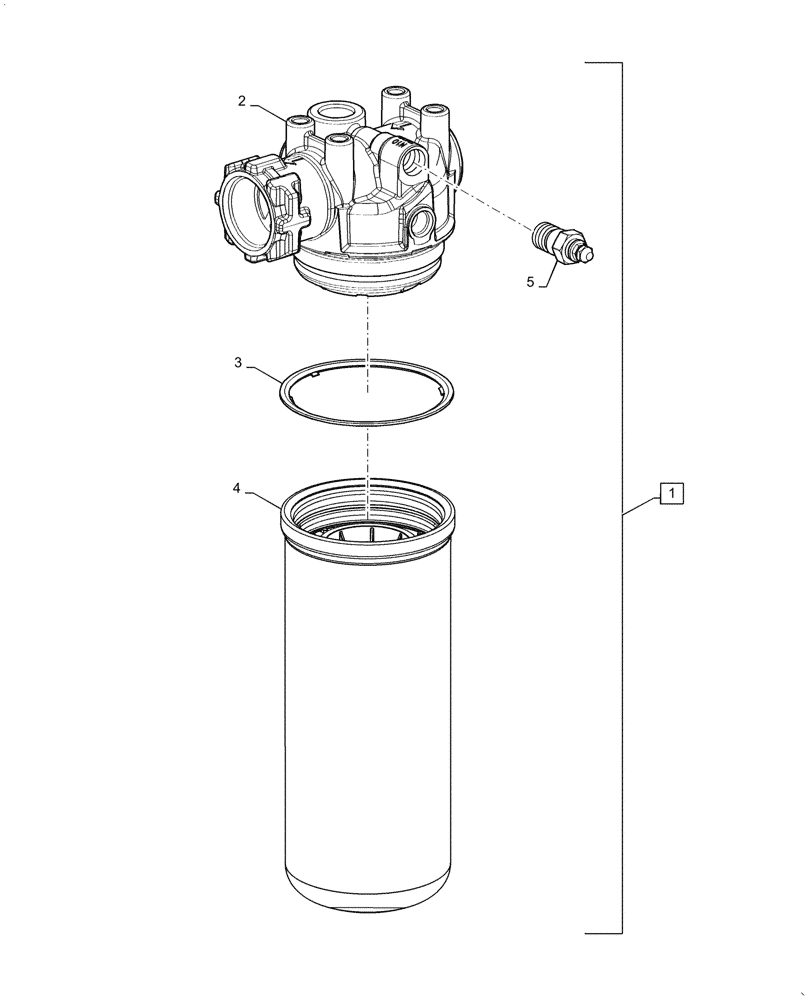

Схема запчастей Case 570N EP - (35.300.AN[01]) - HYDRAULIC OIL FILTER ASSY (35) - HYDRAULIC SYSTEMS
4
1
2
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47833568

HYDRAULIC OIL FILTER

Assembly, Incl 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

Filer Base, Incl in 1

1шт.

3

84274694

WEAR RING,3.45" ID x 3.94" OD x 0.05" Thk

Filter Sealing

1шт.

4

47833556

HYDRAULIC OIL FILTER,98.8mm OD x 239.8mm L x 500 Microns

Spin-on

1шт.

5

47597918

PRESSURE SWITCH

Hydraulic Filter Restriction

1шт.

Выбрано товаров: 5
