(35.220.AD[01]) - VAR - 747892 - FRONT LOADER AUXILIARY LINES

Запчасти Case 570N EP (35.220.AD[01]) - VAR - 747892 - FRONT LOADER AUXILIARY LINES (35) - HYDRAULIC SYSTEMS

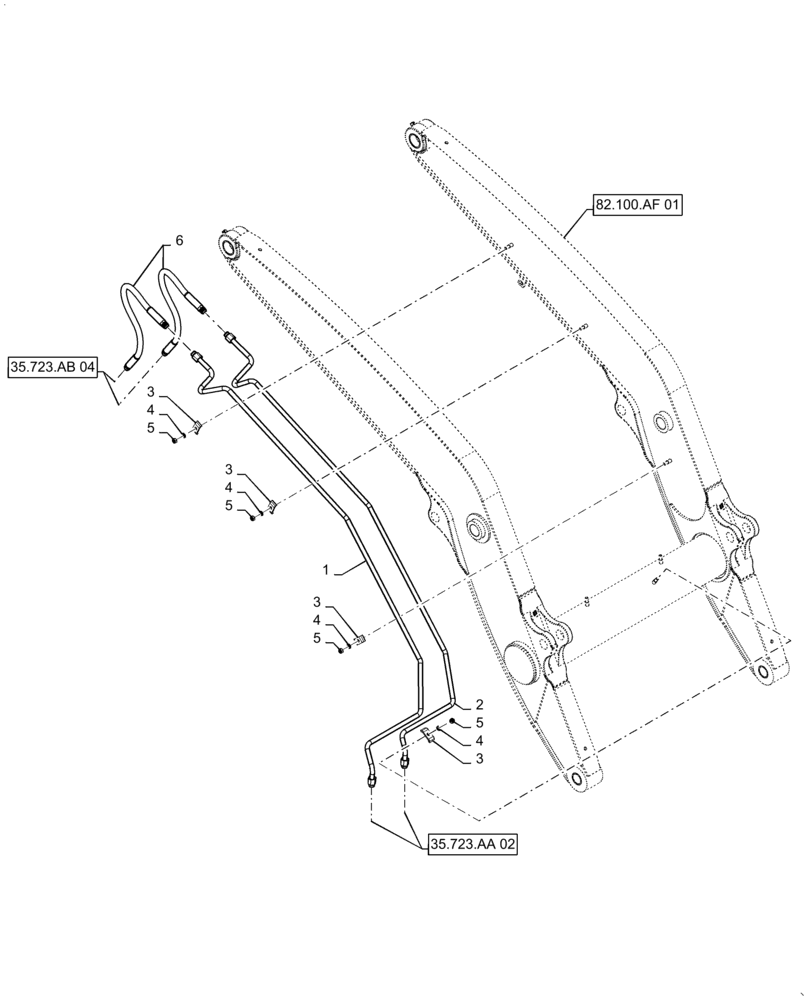

Схема запчастей Case 570N EP - (35.220.AD[01]) - VAR - 747892 - FRONT LOADER AUXILIARY LINES (35) - HYDRAULIC SYSTEMS
4
3
3
35.723.aa 02
5
4
5
35.723.ab 04
5
1
2
4
5
82.100.af 01
3
3
4
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47702178

TUBE

Loader Arm Auxilary Port B

1шт.

2

47702180

TUBE

Loader Arm Auxilary Port A

1шт.

3

D138055

CLAMP

Tube

4шт.

4

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

4шт.

5

86500689

NUT,M10 x 1.5, Cl 10

4шт.

6

138467A1

HOSE,12.7mm ID x 680mm L

Loader Arm Upright, Years: -20-MAY-15

2шт.

6

87429287

HYDRAULIC HOSE,7/8" - 14 JIC, 710mm L

Loader Arm Upright, Start Year: 20-MAY-15

2шт.

Выбрано товаров: 7
