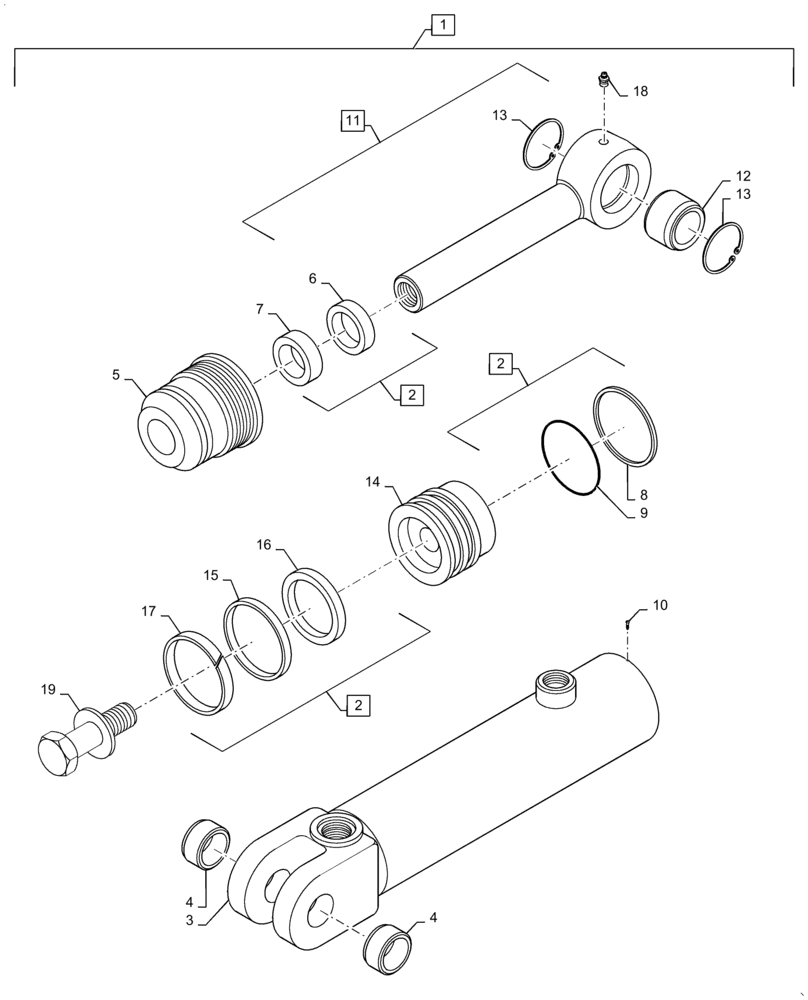

Запчасти Case 570N EP (35.116.AH[02]) - 3 POINT HITCH TILT CYLINDER (35) - HYDRAULIC SYSTEMS

1

86982482

CYLINDER ASSY.,Double Acting, 31.8mm Rod, 160mm Stroke

Three-Point Hitch Tilt, 64mm ID x 160mm strk, Incl 3 - 19

1шт.

2

86982384

SEAL KIT

Incl 6 - 9, 15 - 17

1шт.

3

137913A1

TUBE,356.5 mm Length

1шт.

4

D34359

BUSHING,25.63mm ID x 34.92mm OD x 15.75mm L

2шт.

5

118115A2

GLAND

Packing

1шт.

6

NSS

NOT SOLD SEPARAT

Wiper Seal, Incl in 2

1шт.

7

NSS

NOT SOLD SEPARAT

Seal, Incl in 2

1шт.

8

NSS

NOT SOLD SEPARAT

Back Up Ring, Incl in 2

1шт.

9

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 2

1шт.

10

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

11

137917A1

PISTON ROD

32mm, Incl 12 - 13

1шт.

12

D22200

BEARING,25.4mm ID x 36.5mm OD x 22.23mm L

Self Aligning

1шт.

13

271429

SNAP RING,1.625", Int, #162

2шт.

14

137528A1

PISTON

Cylinder

1шт.

15

NSS

NOT SOLD SEPARAT

Seal, Incl in 2

1шт.

16

NSS

NOT SOLD SEPARAT

Seal, Incl in 2

1шт.

17

NSS

NOT SOLD SEPARAT

Ring, Incl in 2

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

19

86982434

SPECIAL BOLT,3/4" - 16 x 2"

3/4" x 2"

1шт.
