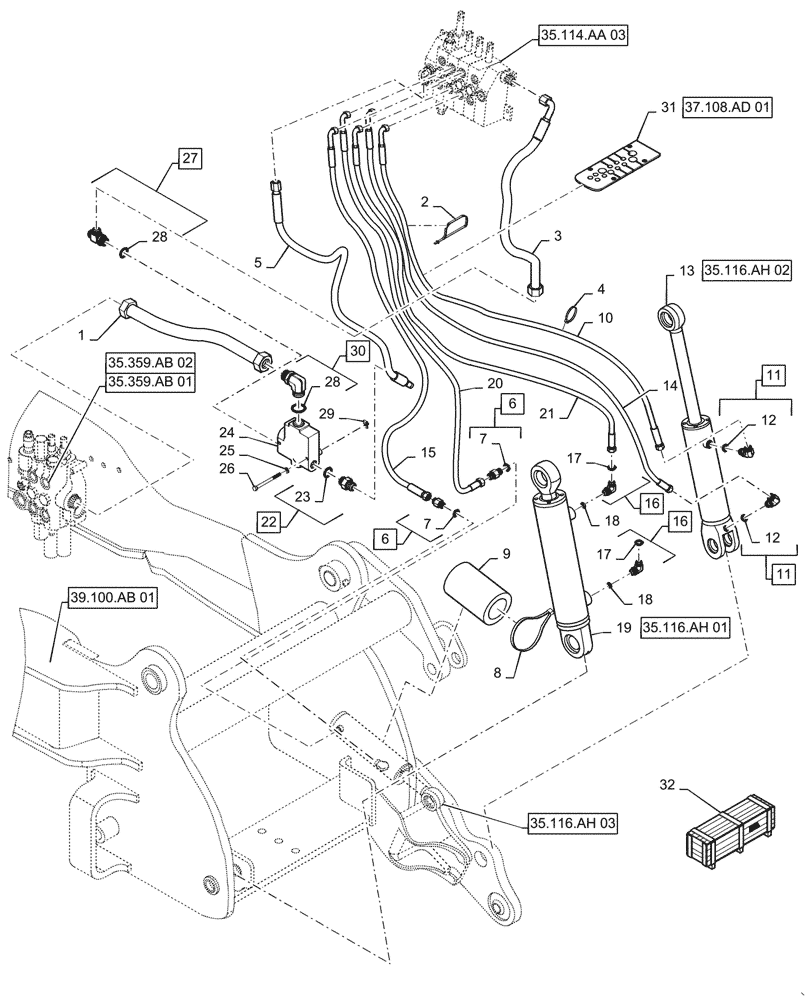

Запчасти Case 570N EP (35.114.AF[01]) - 3 POINT HITCH HYDRAULIC LINES (35) - HYDRAULIC SYSTEMS

1

87310473

HOSE ASSY.,19.05mm ID x 740mm L

Loader Valve To Flow Control Valve

1шт.

2

L18331

CABLE TIE,375.9mm L, Nylon, Black

Nylon

3шт.

3

47612033

HOSE,12.5mm ID x 1080mm L, SAE 100R6

Outlet Valve To Forward Control Valve

1шт.

4

L11541

CABLE TIE,203.2mm L, Nylon

Black Nylon

4шт.

5

86982083

HOSE ASSY.,12.5mm ID x 1100mm L

Flow Control Valve To Hitch Valve

1шт.

6

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

Incl 7

2шт.

7

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Incl in 6

2шт.

8

305342A1

STRAP,450mm L

Tie

1шт.

9

87682091

FOAM INSULATION

Pipe

1шт.

10

405837A3

HOSE ASSY.,6.35mm ID x 1450mm L

Tilt Rod

1шт.

11

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

Incl 12

2шт.

12

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Incl in 11

2шт.

13

86982482

CYLINDER ASSY.,Double Acting, 31.8mm Rod, 160mm Stroke

Tilt

1шт.

14

405838A3

HOSE ASSY.,6.35mm ID x 1630mm L

Head End

1шт.

15

405839A2

HOSE ASSY.,6.35mm ID x 1225mm L

Pitch Rod End

1шт.

16

86512937

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

Incl 17

2шт.

17

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Incl in 16

2шт.

18

86981925

RESTRICTOR

1/8 inch Orifice

2шт.

19

86982542

LIFT CYLINDER,Double Acting, 38.1mm Rod, 207.2mm Stroke

Three Point Hitch Gray

1шт.

20

410702A1

HOSE ASSY.,6.35mm ID x 975mm L

Pitch Cylinder

1шт.

21

87561383

HOSE ASSY.,6.3mm ID x 1130mm L, SAE 100R17

Lift Cylinder Head End

1шт.

22

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 23

1шт.

23

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Incl in 22

1шт.

24

87571180

CONTROL VALVE

Flow

1шт.

25

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

8шт.

26

86508569

BOLT,Hex, M6 x 70mm, Cl 8.8

2шт.

27

219604

TEE,1-1/16" - 12 ORB x 1-1/16" - 12 JIC x 1-1/16" - 12 JIC

Incl 28

1шт.

28

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Incl in 27 & 30

1шт.

29

833-40406

NUT,M6, U

Spring

10шт.

30

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 28

1шт.

31

399748A4

GROMMET

Hose

1шт.

32

87572246

CYLINDER HEAD

DIA Kit, Dual Tilt Cylinder (Order from Wholegoods only) Incl 10, 13, 14,

1шт.

To See the Full DIA Kit Composition Look For All the Figures Where the DIA Kit P/N is Shown

1шт.
