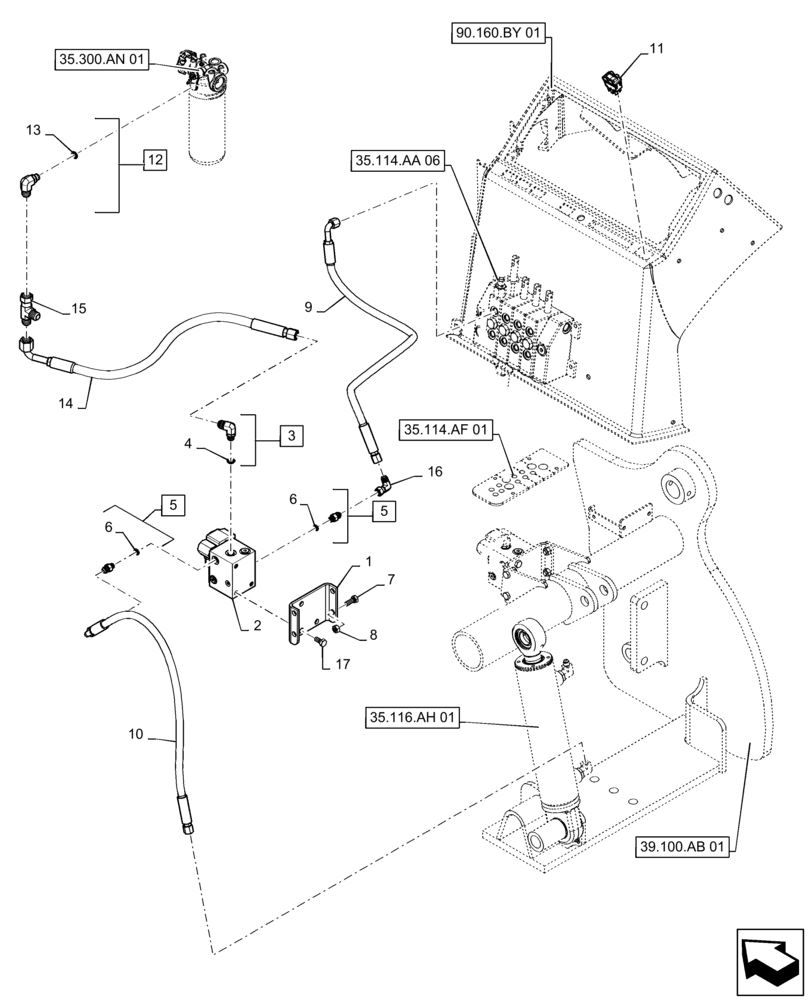

Запчасти Case 570N EP (35.114.AA[05]) - VAR - 747876, 747878 - 3 POINT HITCH, 5 SPOOL, SINGLE TILT, DUAL TILT, HOLDING VALVE (35) - HYDRAULIC SYSTEMS

1

84395094

BRACKET

1шт.

2

411316A1

VALVE, CONTROL

Lift Lock

1шт.

3

86512938

90 ELBOW,90 Degree, 37 Degree 3/4"-16 x 9/16"-18 ORB

Incl 4

1шт.

4

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

5

84384

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

Incl 6

2шт.

6

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

7

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

4шт.

8

86500689

NUT,M10 x 1.5, Cl 10

4шт.

9

405842A2

HOSE ASSY.,9.53mm ID x 950mm L

Lift, Head End

1шт.

10

87561386

HOSE ASSY.,10mm ID x 855mm L, SAE 100R17

Valve To Lift Cylinder Head End

1шт.

11

405512A1

ROCKER SWITCH

3 Point Hitch

1шт.

12

86625052

ELBOW,90 Degree, 7/8"-14, 37 Degree x 3/4"-16, O-Ring

Incl 13

1шт.

13

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

14

47610292

HOSE,12.5mm ID x 750mm L, SAE 100R16

Valve To Filter

1шт.

15

86513011

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

1шт.

16

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

1шт.

17

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

3шт.
