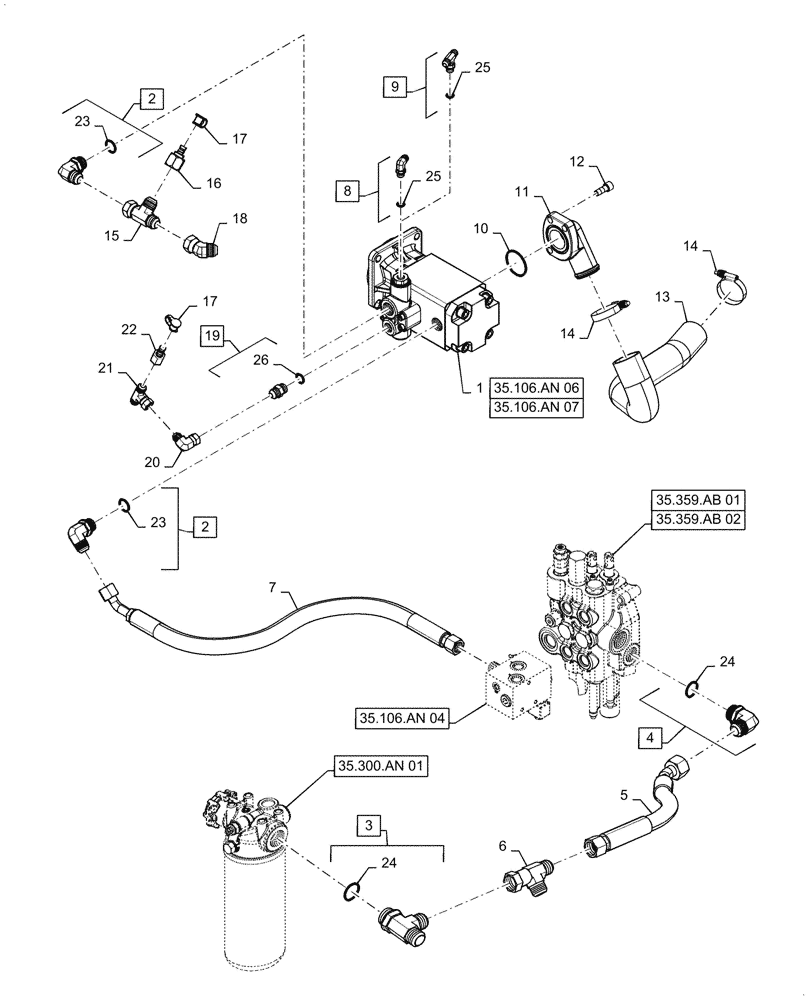

Запчасти Case 570N EP (35.104.AA[02]) - VAR - 745437 - SHIMADZU PTO PUMP & HYDRAULIC LINES (35) - HYDRAULIC SYSTEMS

1

47801619

HYDRAULIC PUMP

Tandem, PTO, Years: -29-OCT-16

1шт.

1

48030086

HYDRAULIC PUMP

Tandem, PTO, Start Year: 29-OCT-16

1шт.

2

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 23

2шт.

3

86513022

TEE,1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring run

Incl 24

1шт.

4

268277

90 ELBOW,1-5/16" - 12 JIC x 1-5/16" - 12 ORB

Incl 24

1шт.

5

84483645

HYDRAULIC HOSE,25mm ID x 508mm L, SAE 100R4

1шт.

6

9618946

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12, Fem Sw Run

1шт.

7

47614849

HYDRAULIC HOSE,19mm ID x 885mm L, SAE 100R16

PTO Pump Pressure

1шт.

8

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 25

1шт.

9

163335

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

Incl 25

1шт.

10

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

11

87727923

FLANGE

PTO Pump Inlet

1шт.

12

864-12030

HEX SOC SCREW,M12 x 30mm, Cl 8.8

3шт.

13

47982898

HYDRAULIC HOSE

Suction

1шт.

14

259044A1

CLAMP

2шт.

15

265978

TEE,1-1/16" - 12 JIC x 1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

16

D137625

QUICK MALE COUPLING,1 - 1/16" - 12UNF - 2B ID

1шт.

17

H434163

DUST CAP

2шт.

18

219605

ELBOW,45 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

19

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 26

1шт.

20

248974

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 Fem Sw

1шт.

21

86513015

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

22

192834A1

COUPLING

1шт.

23

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

24

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

2шт.

25

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

26

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
