(27.100.AB[02]) - REAR AXLE ASSY, WITH PTO

Запчасти Case 570N EP (27.100.AB[02]) - REAR AXLE ASSY, WITH PTO (27) - REAR AXLE SYSTEM

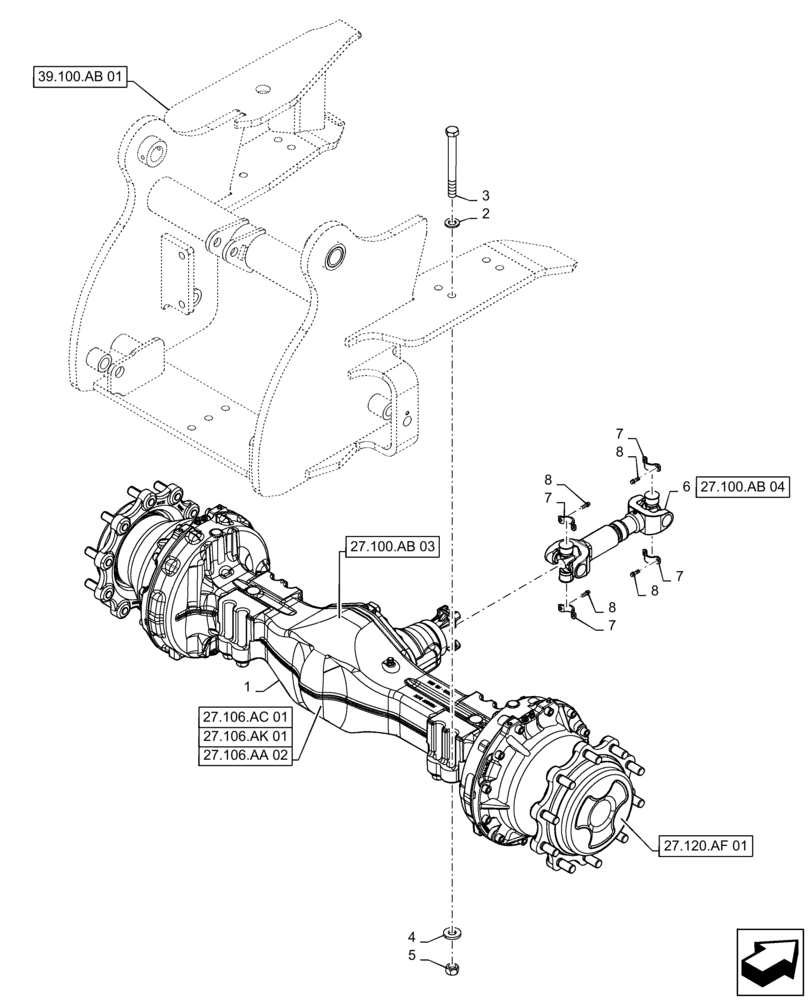

Схема запчастей Case 570N EP - (27.100.AB[02]) - REAR AXLE ASSY, WITH PTO (27) - REAR AXLE SYSTEM
7
3
8
2
27.100.ab 03
8
5
8
8
7
7
7
27.106.ak 01
27.120.af 01
39.100.ab 01
4
6
27.106.ac 01
1
27.106.aa 02
27.100.ab 04
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47484459

REAR AXLE

MR1, 17.6 To 1, CW

1шт.

1

47484459C

CORE-REAR AXLE

Core, MR1 Drive

1шт.

1

47484459R

REMAN-REAR AXLE

Reman, MR1 Drive

1шт.

2

87655047

SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm Thk

8шт.

3

827-20200

BOLT,Hex, M20 x 2.5 x 200mm, Cl 10.9

8шт.

4

87618533

WASHER,21mm ID x 46mm OD x 6.4mm Thk

Flat

8шт.

5

829-1420

NUT,M20, Cl 10

8шт.

6

47566698

DRIVE SHAFT,320mm L

Rear

1шт.

See Fig 27.100.AB (04) For Service Parts

1шт.

7

D137626

CLAMP,30.175mm D Clamping Pipe

Driveshaft Spider Bearing

4шт.

8

9637611

SCREW,Hex Flng, 5/16" - 24 x 3/4"

Driveshaft

8шт.
