(27.100.AB[01]) - REAR AXLE ASSY WITHOUT PTO

Запчасти Case 570N EP (27.100.AB[01]) - REAR AXLE ASSY WITHOUT PTO (27) - REAR AXLE SYSTEM

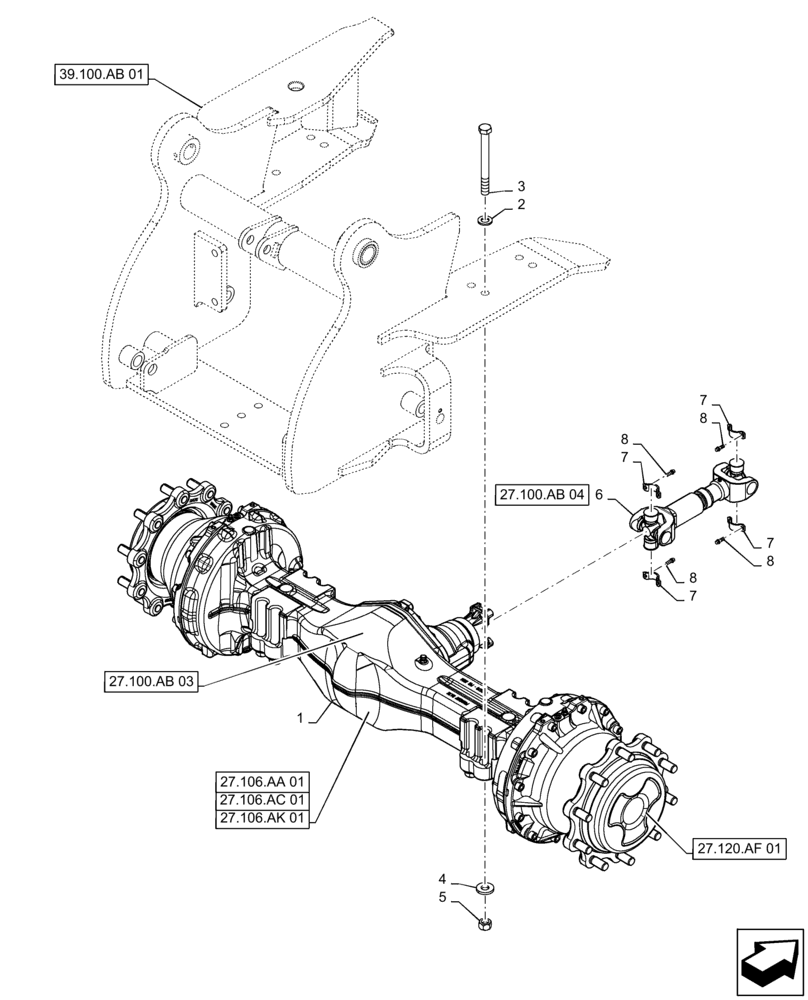

Схема запчастей Case 570N EP - (27.100.AB[01]) - REAR AXLE ASSY WITHOUT PTO (27) - REAR AXLE SYSTEM
8
39.100.ab 01
7
27.100.ab 03
8
7
3
27.106.ac 01
27.100.ab 04
7
5
6
27.106.aa 01
1
8
4
27.106.ak 01
8
2
7
27.120.af 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84178115

REAR AXLE

1шт.

1

84178115R

REMAN-AXLE

1шт.

1

84178115C

REAR AXLE

1шт.

2

87655047

SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm Thk

8шт.

3

827-20200

BOLT,Hex, M20 x 2.5 x 200mm, Cl 10.9

8шт.

4

87618533

WASHER,21mm ID x 46mm OD x 6.4mm Thk

8шт.

5

829-1420

NUT,M20, Cl 10

8шт.

6

87613924

DRIVE SHAFT

1шт.

See Fig 27.100.AB (04) For Service Parts

1шт.

7

D137626

CLAMP,30.175mm D Clamping Pipe

Driveshaft Spider Bearing

2шт.

8

9637611

SCREW,Hex Flng, 5/16" - 24 x 3/4"

4шт.
