Запчасти Case 570N EP (25.102.AP[01]) - FRONT AXLE, PLANETARY GEAR, 4WD (25) - FRONT AXLE SYSTEM

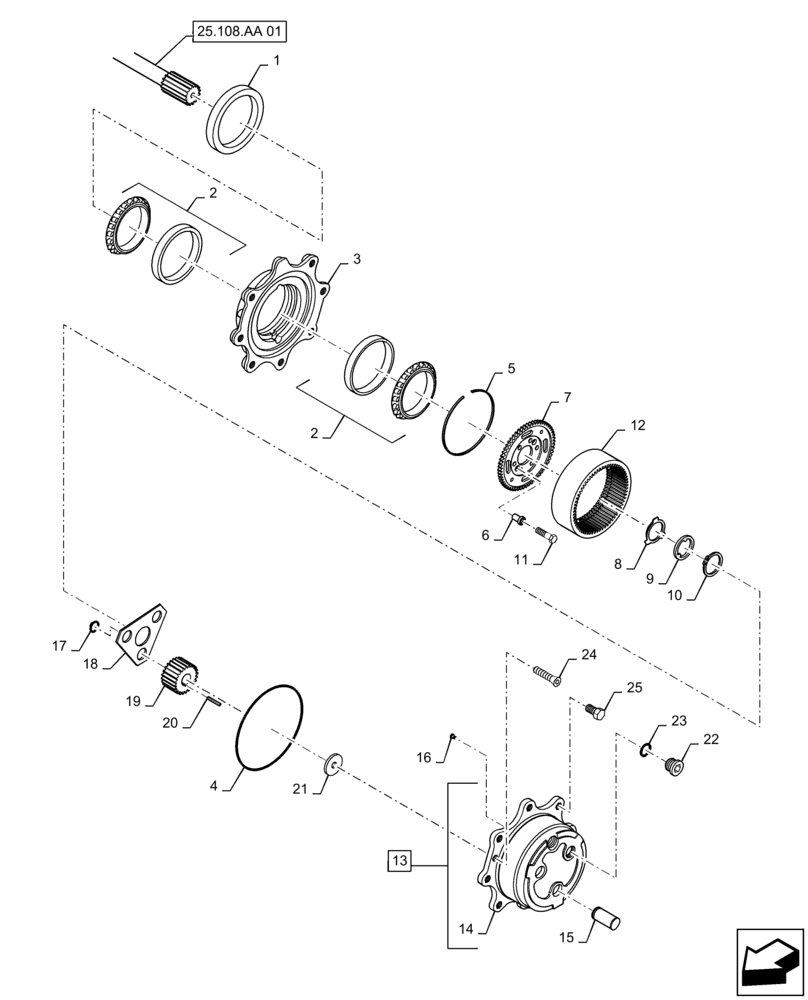

Схема запчастей Case 570N EP - (25.102.AP[01]) - FRONT AXLE, PLANETARY GEAR, 4WD (25) - FRONT AXLE SYSTEM
13
19
17
22
20
11
25
9
1
2
18
10
8
16
4
6
23
14
25.108.aa 01
24
15
2
21
12
5
3
7

Артикул

Название

Примечание

Количество

1

47123727

SEAL,130mm ID x 160mm OD x 16mm Thk

Wheel Hub

1шт.

2

84552720

BEARING ASSY,Tapered Rolled, 95mm ID x 135mm OD x 20mm W

2шт.

3

47491944

HUB

Wheel

1шт.

4

14468780

O-RING,0.139" Thk x 8.73" ID, -269, Cl 5, 75 Duro

1шт.

5

5165162

SNAP RING,M50, Int

Retaining

1шт.

6

84270060

SLEEVE,10.55mm ID x 16.069mm OD x 23mm L

10.55mm x 16.069mm x 23mm

6шт.

7

84469354

SUPPORT

Ring Gear

1шт.

8

84469386

THRUST WASHER,45mm ID x 64mm OD x 2.5mm thk

External

1шт.

9

84469371

THRUST WASHER,33.08mm ID x 51.25mm OD x 2.5mm thk

Internal

1шт.

10

47703830

SNAP RING,M39, Int

Circlip

1шт.

11

84470404

BOLT,M10 x 1.5 x 40 full

6шт.

12

47438349

RING GEAR,60 teeth

1шт.

13

47436748

KIT

Planetary Carrier, Incl 14 - 15

1шт.

14

NSS

NOT SOLD SEPARAT

Planetary Carrier, Incl In 13

1шт.

15

NSS

NOT SOLD SEPARAT

Pin, Planetary Drive, Incl In 13

3шт.

16

84469423

BUTTON

Thrust

1шт.

17

370004

SNAP RING,M35 x 1.5mm Thk, External

3шт.

18

47435816

WASHER,triangular 50mm ID x 1.5mm thk

Triangular

1шт.

19

47435814

PLANETARY GEAR,23T

3шт.

20

47435841

NEEDLE ROLLER,4mm OD x 29.8mm L

4mm x 29.8mm

93шт.

21

47435813

THRUST WASHER,35.9mm ID x 58mm OD x 1.5mm Thk

Planetary

3шт.

22

84272055

PLUG,M30 x 2

1шт.

23

9626929

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

24

47361879

SCREW,M8 x 20 Full 8.8 PHC

2шт.

25

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

8шт.

Выбрано товаров: 25
