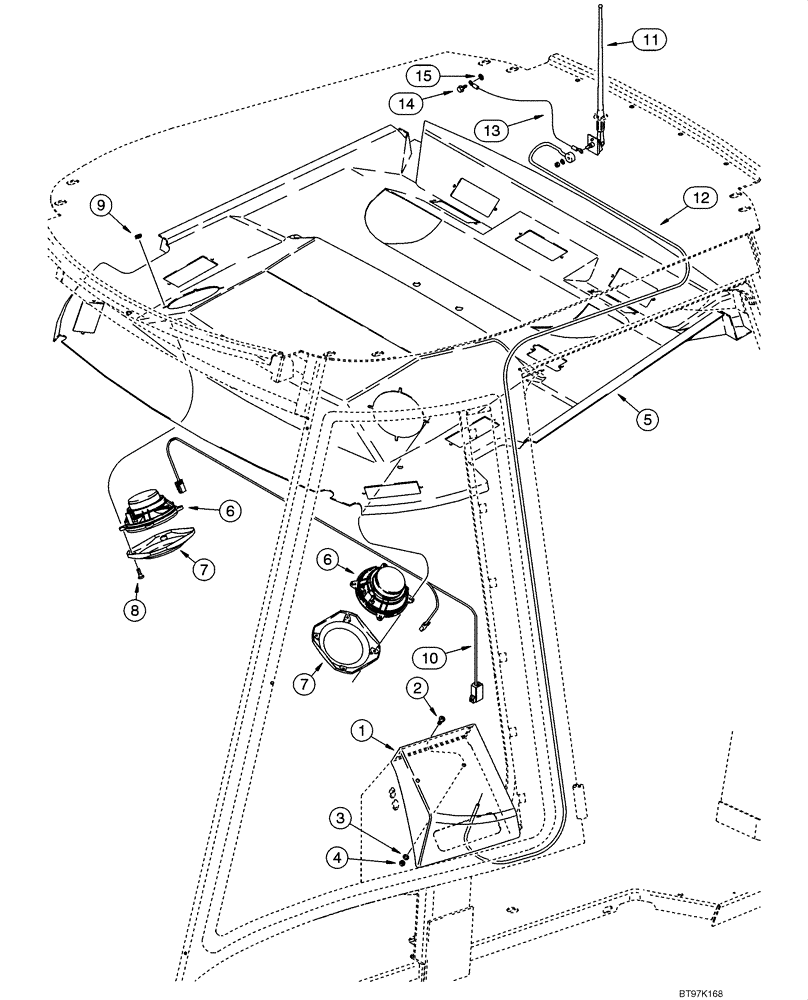

Запчасти Case 570MXT (04-21) - ANTENNA, RADIO - HARNESS, RADIO (04) - ELECTRICAL SYSTEMS

1

404167A1

BOX

Radio Mounting

1шт.

2

161-115

HEX SOC SCREW,Btn Hd, 1/4" - 20 x 3/4"

2шт.

3

495-11028

WASHER,1/4", SAE

2шт.

4

231-1444

NUT,1/4"-20, GB

2шт.

5

390772A1

ROOF LINING

See Figure 9-47

1шт.

6

182721A2

SPEAKER

5-1/2

2шт.

7

187281A1

COVER

2шт.

8

1977686C1

SCREW

M4,2 x 25

8шт.

9

177269A1

SPRING NUT,M4.2

8шт.

10

298228A1

HARNESS

Speaker

1шт.

11

197745A1

ANTENNA

Radio; Incl. Flat Washer and Nut Which Are Not Serviced Separately

1шт.

12

284549A1

CABLE

1шт.

13

291010A1

ELECTRICAL WIRE

WIRE Ground

1шт.

14

282-16512

SCREW,Hex Wshr Hd, #10 - 16 x 3/4"

1шт.

15

893-11005

LOCK WASHER,Ext Tooth, M5

1шт.
