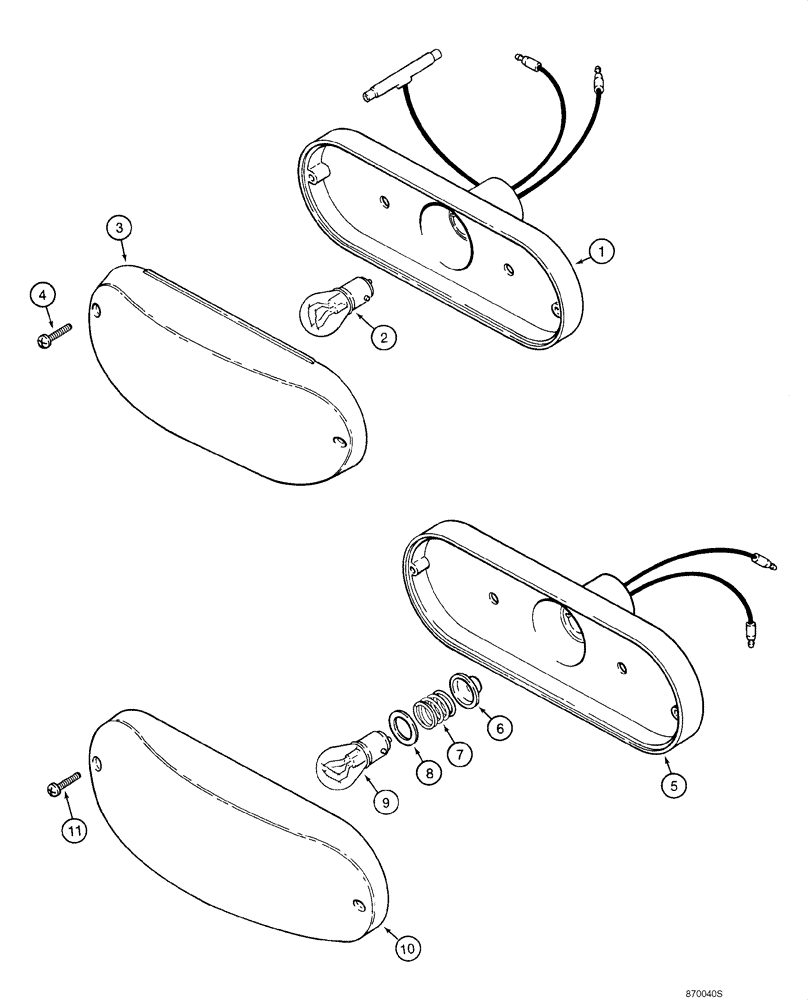

Запчасти Case 570MXT (04-16) - LAMP ASSY - ROPS CANOPY MODELS (04) - ELECTRICAL SYSTEMS

D121152

LAMP,12V

Stop And Tail Lamp; Red; Incl. 1 - 4

2шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

T34857

BULB,C6, #1157, 12.8V

1шт.

3

N6836

LENS

Red

1шт.

4

261-14310

SELF-TAP SCREW,Cross Pan Hd, #6 x 5/8"

2шт.

D135384

LAMP,12V

Turn Signal and Flasher; Amber; Incl. 5 - 11

4шт.

5

NSS

NOT SOLD SEPARAT

Housing

1шт.

6

NSS

NOT SOLD SEPARAT

Seal

1шт.

7

NSS

NOT SOLD SEPARAT

Spring

1шт.

8

NSS

NOT SOLD SEPARAT

Insulator

1шт.

9

A41264

BULB,#1156, 12V

1шт.

10

N14283

LENS

Amber

1шт.

11

261-14310

SELF-TAP SCREW,Cross Pan Hd, #6 x 5/8"

2шт.
