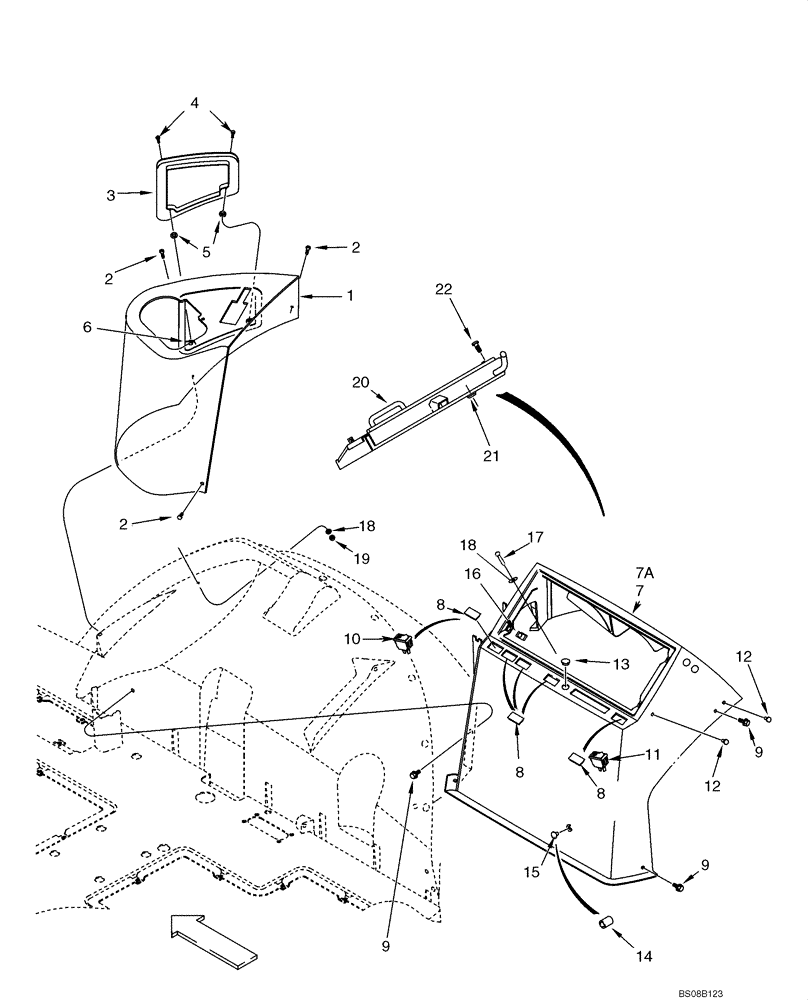

Запчасти Case 570MXT (04-11) - INSTRUMENT PANEL, SIDE - SWITCHES AND COVERS (04) - ELECTRICAL SYSTEMS

1

390993A1

COVER

Loader Control

1шт.

2

555-10

BOLT,Hvy Hex, M6 x 16mm, Cl 8.8

Used With Ref. 2A

3шт.

2a

86625073

SPRING NUT,M6 x 1

Clip, Not Illustrated

3шт.

3

390992A1

PANEL

Fuse Access

1шт.

4

87310086

CAPTIVE WASHER SCREW,Sl Pan Hd, #10 - 16 x 17mm, Stainless Steel

Includes Washer, Stainless Steel

2шт.

5

127009A1

CLIP,ELECTRICAL

2шт.

6

131-861

SPRING NUT,Tinn, U, #10-24

2шт.

7

395892A1

CONSOLE

Side; Models Without Radio; Also Order (1) 181385A1 Threaded Insert; If Used

1шт.

7a

395893A1

BRACKET

Console, Side; Models With Radio; Also Order (1) 181385A1 Threaded Insert; If Used; Not Illustrated

1шт.

8

86000535

PLUG,1.427" x .62", Plastic

Accessory; If Used

1-5шт.

9

555-10

BOLT,Hvy Hex, M6 x 16mm, Cl 8.8

3шт.

10

398675A2

ROCKER SWITCH

Loader Tool Quick Coupler; If Used

1шт.

11

405512A1

ROCKER SWITCH

Three Point Hitch; If Used

1шт.

12

353-402

PLUG,Dome, .375" hole, Nylon

2шт.

13

353-429

PLUG

1шт.

14

181385A1

RIVET

M8

1шт.

15

353-425

PLUG,0.437 Hole OD

1шт.

16

176857A1

SPRING NUT

J, 10 x 24

4шт.

17

814-6050

BOLT,Hex, M6 x 1 x 50mm, Cl 8.8

1шт.

18

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

2шт.

19

832-10406

NUT,M6 x 1, Cl 8

1шт.

393009A1

FRAME

Gray; Instrument Panel; Anti-Vandalism; Canopy Models; Incl. 20, 21

1шт.

20

NSS

NOT SOLD SEPARAT

Cover

1шт.

21

F22426

STOP

3шт.

22

140-119

SCREW,Cross Pan Hd, #10 - 24 x 1 1/4"

4шт.
