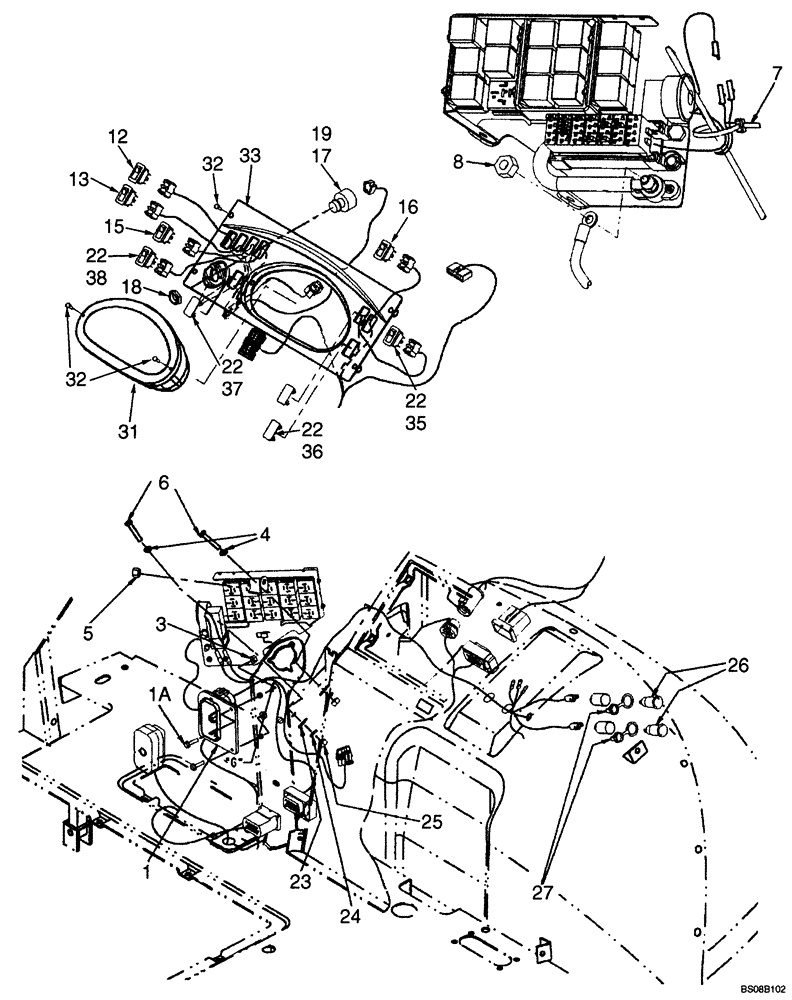

Запчасти Case 570MXT (04-09) - HARNESS, SIDE CONSOLE - SWITCHES (04) - ELECTRICAL SYSTEMS

1

87685356

WIRE HARNESS

Side Console

1шт.

1a

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

2шт.

3

832-10406

NUT,M6 x 1, Cl 8

2шт.

4

495-21038

WASHER,5/16"

2шт.

5

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

6

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

7

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

1шт.

8

425-106

NUT,3/8"-16, Cl 5

Attaches Power Wire from Starter to Junction Block

1шт.

12

133711A1

LIGHT SWITCH

Driving Lamps

1шт.

13

133713A1

LIGHT SWITCH

Front Work Lamps

1шт.

15

133715A1

LIGHT SWITCH

Rear Flood Lamp

1шт.

16

283167A3

ROCKER SWITCH

Differential Lock

1шт.

282775A1

IGNITION SWITCH

Inc. Refs. 17 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

Switch

1шт.

18

NSS

NOT SOLD SEPARAT

Nut

1шт.

19

1964831C2

IGNITION KEY

Padded Key; Set Of Two

1шт.

22

86000535

PLUG,1.427" x .62", Plastic

For Optional Switches; Cold Start, 4WD, Ride Control, Auxiliary

1-4шт.

23

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.

24

892-11008

LOCK WASHER,8mm ID

2шт.

25

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

26

283779A1

POWER SOCKET,12V

2шт.

27

283781A1

CAP,Polyester Elastomer

2шт.

31

87521766

MILES COUNTER DEVICE

CLUSTER, INSTRUMENT, See Figure 04-12

1шт.

87521766R

REMAN-INSTR CLUSTER

570MXT SERIES 3 TIER 3 (4/08-)

1шт.

87521766C

CORE-CLUSTER, INSTR

Return Number

1шт.

32

140-119

SCREW,Cross Pan Hd, #10 - 24 x 1 1/4"

6шт.

33

410932A1

BEZEL

Instrument Cluster; Incl. Ref. 33A

1шт.

33a

390258A1

INSERT

No. 10, Not Illustrated

2шт.

35

133716A1

ROCKER SWITCH

Four Wheel Drive; If Used

1шт.

36

235002A1

ROCKER SWITCH

Ride Control; If Used

1шт.

37

386791A1

SWITCH

Cold Start; If Used

1шт.

38

386851A1

BEACON SWITCH

Rotating Beacon; If Used

1шт.
