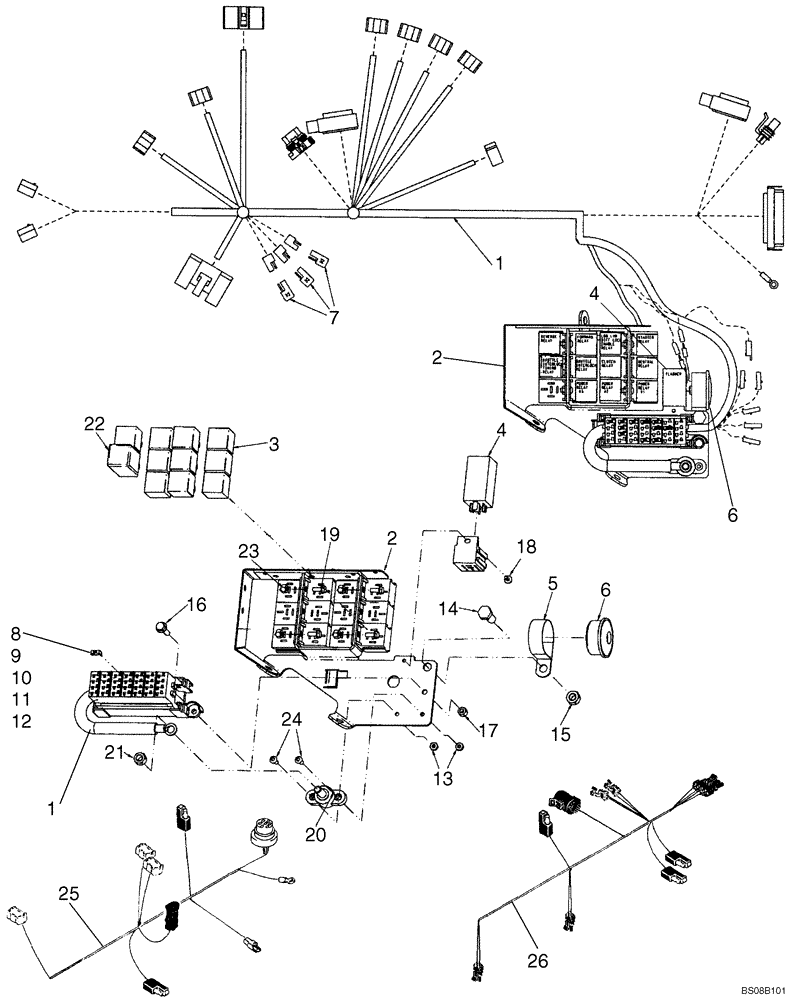

Запчасти Case 570MXT (04-08) - HARNESS, SIDE CONSOLE - MOUNTING AND CONNECTIONS (04) - ELECTRICAL SYSTEMS

1

87685356

WIRE HARNESS

HARNESS, WIRE, Side Console

1шт.

2

304898A1

BRACKET

Fuse and Relay Mounting

1шт.

3

87436836

RELAY,12V, 40 Amp

Mini, 40 amp, 12V

10шт.

4

87578455

RELAY,12V, Turn Signal and Hazard

Turn Signal and Hazard

1шт.

5

D120561

CLAMP

1шт.

6

D137468

BUZZER

Warning

1шт.

7

L71879

DIODE ELEMENT,400V, 3A

3шт.

8

121412A1

FUSE,10A, Mini, Red

Red

5-6шт.

9

121413A1

FUSE,15A, Mini, Blue

Blue

2шт.

10

121414A1

FUSE,20A, Mini, Yellow

Yellow

1шт.

11

121415A1

FUSE,25A, Mini, Clear

Clear

1шт.

12

121416A1

FUSE,30A, Mini, Green

Green

2шт.

13

193-1000

NUT,Keps, w/LW,#10-32

2шт.

14

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

15

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

16

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

1шт.

17

832-10406

NUT,M6 x 1, Cl 8

1шт.

18

329032A1

SELF-TAP SCREW,Hex WAHR HD TPG #10 x 0.375 END TT

1шт.

19

87301687

SCREW,HWH, #10 - 32 x 1/2"

4шт.

20

184277A1

CONNECTION

Power

1шт.

21

425-106

NUT,3/8"-16, Cl 5

1шт.

22

347706A3

RELAY,12V, 5A

Time Delay

1шт.

23

231-24409

NUT,#10-32

4шт.

24

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

2шт.

25

400623A2

HARNESS

Side Console Options; Incl. (1) L71879; Optional Equipment Harness, Ride Conrol, 3 Pt. Hitch, Quick Coupler

1шт.

L71879

DIODE ELEMENT,400V, 3A

1шт.

26

87489430

WIRE HARNESS

Chassis Options; Ride Control, 3 Pt. Hitch, Quick Coupler

1шт.
