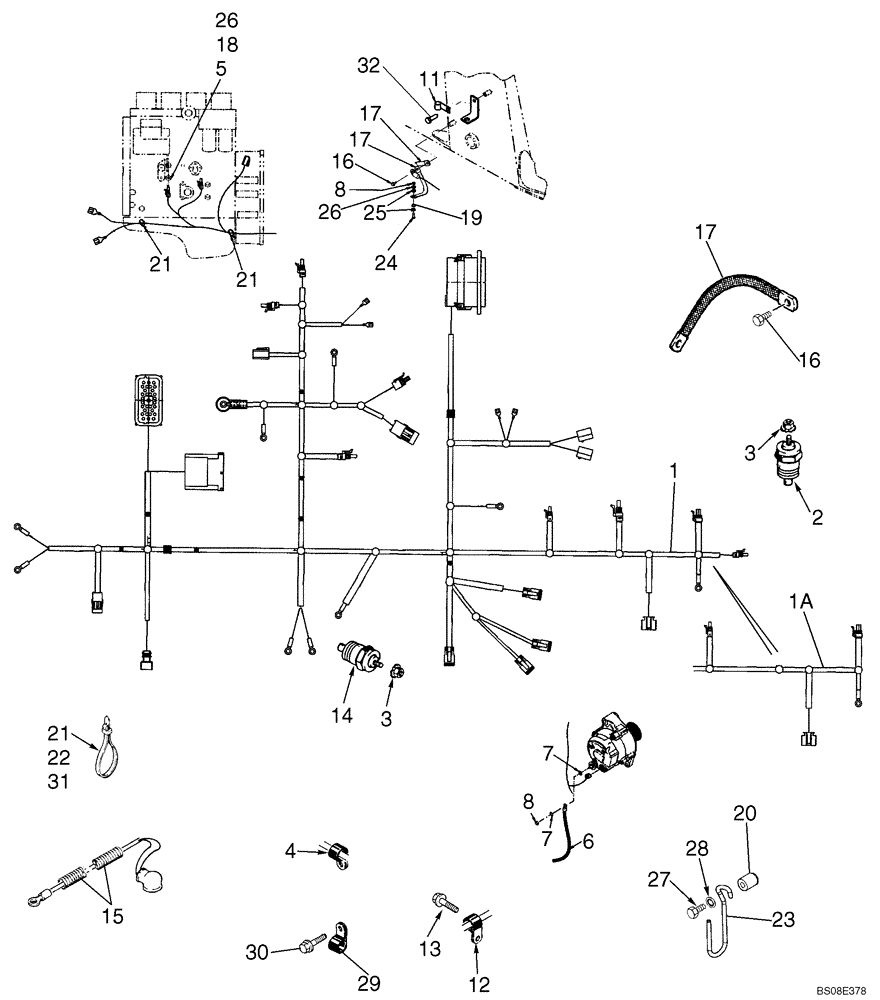

Запчасти Case 570MXT (04-04) - HARNESS, ENGINE - MOUNTING AND CONNECTIONS (04) - ELECTRICAL SYSTEMS

1

87473323

WIRE HARNESS

Main Chassis; Models W/Air Conditioning

1шт.

1a

87473319

WIRE HARNESS

Main Chassis; Models W/O Air Conditioning

1шт.

2

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

Engine Water Coolant

1шт.

3

193-1000

NUT,Keps, w/LW,#10-32

2шт.

4

515-2379

CLAMP,5/16", Insul, 3/8" Bolt

1шт.

5

D147383

CLIP,5/8" J

J-Clamp, 5/8; Left-Hand Side of Engine

1шт.

6

D143830

CABLE

, Serial Range: Alternator-Starter

1шт.

7

493-21033

LOCK WASHER,Int Tooth, 5/16"

2шт.

8

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

11

87032428

CLAMP,22.2mm, Coat, 10.3mm Bolt Hole, J Type

3шт.

12

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

2шт.

13

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

3шт.

14

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

Transmission

1шт.

15

184188A1

HARNESS

Fuse Block Power

1шт.

16

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

1шт.

17

D127018

STRAP

Ground

2шт.

18

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

19

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

2шт.

20

130245A1

SPACER

1шт.

21

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

18шт.

22

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

8шт.

23

223722A1

SUPPORT

1шт.

24

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

1шт.

25

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

26

892-11008

LOCK WASHER,8mm ID

2шт.

27

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

1шт.

28

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

29

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

2шт.

30

121856A1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

1шт.

31

305342A1

STRAP,450mm L

1шт.

32

121856A1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

1шт.
