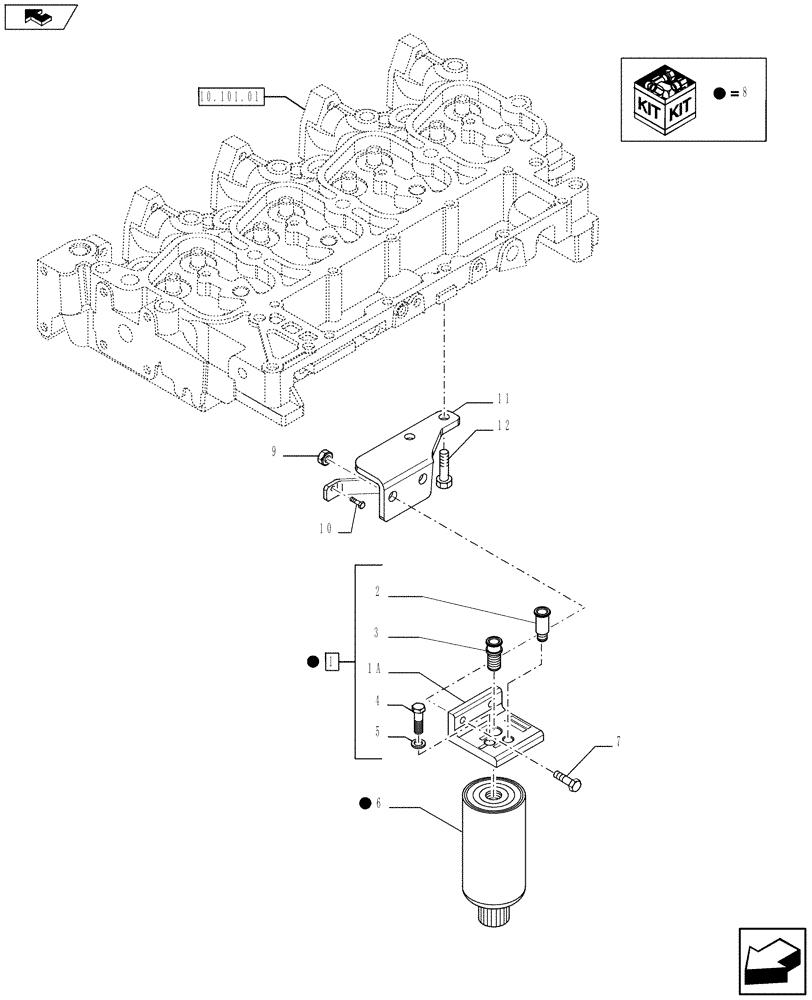

Запчасти Case 570MXT (03-08[01]) - FUEL FILTER (03) - FUEL SYSTEM

1

2859157

FUEL FILTER

Assembly, Incl 1A - 5

1шт.

1a

NSS

NOT SOLD SEPARAT

1шт.

2

2830454

ADAPTER,M12 x 1.5

1шт.

3

2830453

ADAPTER,M16 x 1.5

1шт.

4

2859159

PLUG,Hex, M8 x 1.5

1шт.

5

2859160

GASKET

1шт.

6

84526251

FUEL FILTER

CNH Labeled

1шт.

7

4899849

SCREW,Hex, M10 x 1.5 x 35mm

2шт.

9

4895166

FLANGE NUT,M10, 1.50mm Pitch, Cl 10

2шт.

10

4899068

BOLT,Flng, M8 x 1.25 x 16mm

1шт.

11

2855103

SUPPORT

1шт.

12

2830411

BOLT,Flng, M8 x 1.25 x 30mm

2шт.
