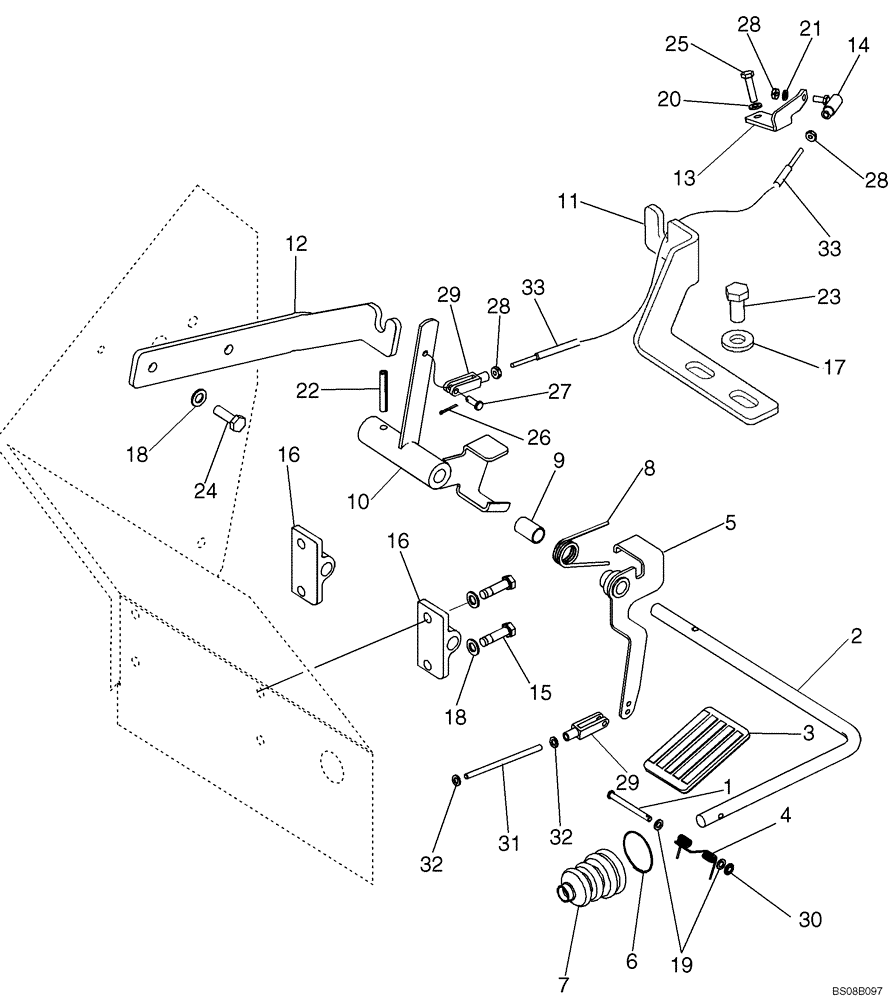

Запчасти Case 570MXT (03-03) - CONTROLS - THROTTLE, FOOT (03) - FUEL SYSTEM

1

322860A1

PIN,7.9mm OD x 55.6mm L

1шт.

2

282931A1

LEVER

1шт.

3

282242A1

PEDAL

Throttle

1шт.

4

256776A1

SPRING

Foot Throttle Pad

1шт.

5

245287A1

SUPPORT

Throttle Return

1шт.

6

189109A1

SPRING,Compression, 42mm OD

Accelerator Pedal Rod

1шт.

7

132931A1

BOOT

1шт.

8

123558A1

SPRING

Throttle Return

1шт.

9

123392A1

SPACER

Throttle Spring

1шт.

10

87741496

LEVER

LEVER, Throttle

1шт.

11

87739250

BRACKET, SUPPORTING

BRACKET, Throttle

1шт.

12

87739249

BRACKET, SUPPORTING

SUPPORT

1шт.

13

87452823

BLOCK ASSY.

1шт.

14

87421807

JOINT ASSY.

1шт.

15

87378776

BOLT,Hex, M8 x 30mm, Cl 8.8

4шт.

16

87345006

BLOCK

2шт.

17

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

18

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

19

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

20

892-11006

LOCK WASHER,M6

2шт.

21

892-11005

LOCK WASHER,M5

1шт.

22

838-3640

PIN,M6 x 40, Coiled

1шт.

23

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

24

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

25

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

2шт.

26

432-48

COTTER PIN,1/16" x 1/2"

1шт.

27

427-3058

CLEVIS PIN,3/16" x .580"

1шт.

28

225-14210

NUT,#10-32

6шт.

29

213-123

ADJUSTABLE CLEVIS,#10-32 x 1 9/16"

2шт.

30

103-1518

SNAP RING,#18, Ext

1шт.

31

193376A1

THREADED ROD

1шт.

32

495-61020

WASHER,0.203" ID x 0.75" OD x 0.067" Thk

2шт.

33

275454A1

CABLE,812.8mm L

Accelerator

1шт.
