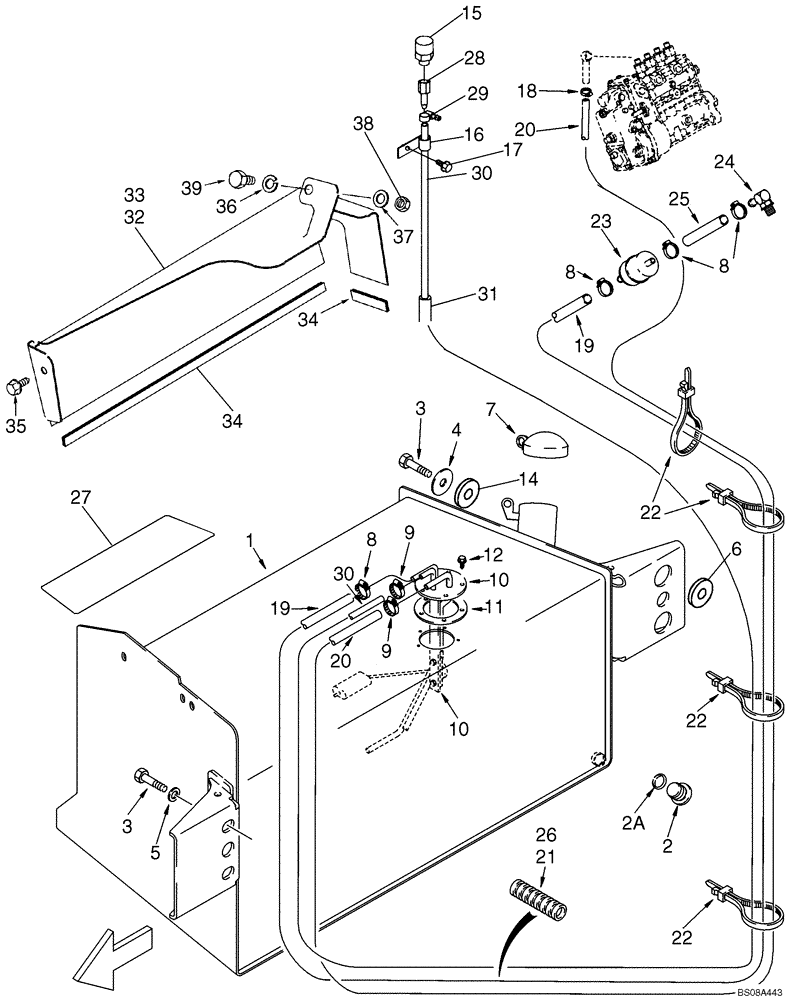

Запчасти Case 570MXT (03-01) - FUEL TANK AND LINES (03) - FUEL SYSTEM

1

87429259

TANK

Fuel, 31 gal, Incl. Left Hand Steps, Incl. 2

1шт.

1

87429264

TANK

Fuel, 40 gal, Incl. Left Hand Steps, Incl. 2

1шт.

2

218-5211

PLUG,Hex Soc, 7/8"-14 ORB

Includes Ref. 2A

1шт.

2a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

3

627-20060

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

4шт.

4

302358A1

WASHER,21mm ID x 54mm OD x 4mm Th

2шт.

5

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

2шт.

6

87360280

SPACER,22mm ID x 57mm OD x 8.25 Th

22 ID x 57 OD x 8.25 mm thk, Flat

2шт.

7

87335469

LOCKABLE FUEL CAP,Male, Lockable

1шт.

8

214-1708

HOSE CLAMP,#08, 0.5" - 0.91", Type M Worm

4шт.

9

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

10

86989676

SENDER UNIT

Fuel Level, 31 Gallon Tank, Without Tubes, Includes Seal and Grounding Hardware, If Used

1шт.

10

87408480

SENDER UNIT

Fuel Level, 40 Gallon Tank, Without Tubes, Includes Seal and Grounding Hardware, If Used

1шт.

12

87693492

SCREW,#10 - 32 x 5/8mm, Stainless

No. 10 NF x 5/8

5шт.

14

185926A1

SPACER,21mm x 40mm x 6.6mm Th

21 ID x 40 OD x 6.6 mm thk

2шт.

15

130047A1

BREATHER ASSY.

Fuel

1шт.

16

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

17

121856A1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

1шт.

18

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

1шт.

19

87748807

HOSE,12.70 mm ID x 1420 mm, SAE 30R7

Fuel Supply

1шт.

20

87472225

FUEL HOSE,9.53 mm ID x 1745.00 mm, SAE R7

Fuel Return

1шт.

21

399004A1

HOSE PROTECTION,38.90 mm ID x 270.00 mm

1шт.

22

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP 7"-8" lg.

4шт.

23

87733726

FUEL FILTER

Filter, Fuel, In-Line

1шт.

24

87414560

90 ELBOW

1шт.

25

87739247

HOSE,9.53mm ID x 375mm L, SAE 30R7

1шт.

26

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 15 In

2шт.

27

87679228

ANTI-SKID STRIP

737 mm x 217 mm

1шт.

28

217-117

FITTING,1/4" Hose x 1/4" NPTF, Fem, Barbed

1шт.

29

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

1шт.

30

87362937

HOSE,6.35mm ID x 1080mm L, SAE 30R6

1/4 ID x 1080 mm; Cut Hose Both Ends; Fuel Vent

1шт.

31

D132982

PADDLE,26.87mm ID x 400mm L

Hose Sleeve

1шт.

32

189602A3

COVER

Mounted Above Fuel Reservoir; Models Without Clam Bucket Or Auxiliary Hydraulics

1шт.

33

188009A3

COVER

Mounted Above Fuel Reservoir; Models With Clam Bucket

1шт.

34

191046A1

ORNAMENTAL STRIP

650 mm; Cut From A165860; Apply 75 mm (3 in) Of Trim To Front Lower Edge, 240 mm (9-1/2 in) Trim To Outside Lower Edge Of Cover

1шт.

35

307577A1

BOLT

M8 x 20

1шт.

36

892-11010

LOCK WASHER,M10

1шт.

37

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

38

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

39

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

Used with 188009A3 Cover on Models with Three Spool Loader Valve

1шт.

39

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

Used with 189602A3 Cover On Models With Two Spool Loader Valve

1шт.

40

87498489

HOSE PROTECTION

325 mm; Not Illustrated

1шт.
