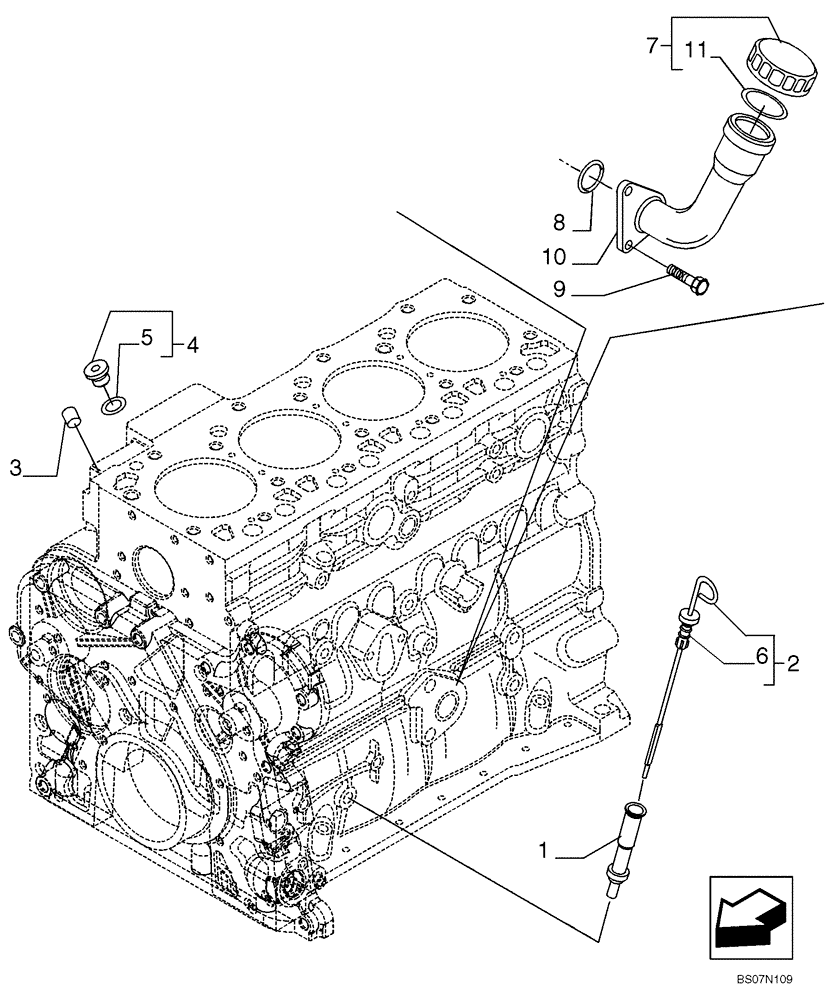

Запчасти Case 570MXT (02-30) - ENGINE OIL DIPSTICK (02) - ENGINE

1

2852122

TUBE,81 mm Length

Assembly, Oil Level, Incl 2

1шт.

Straight Tube as Illustrated

1шт.

1

84136853

DIPSTICK

Assembly, Oil Level, Incl 2

1шт.

45 Degree Bend in Tube - Not Illustrated

1шт.

1

84140845

TUBE

1шт.

45 Degree Bend in Tube - Not Illustrated

1шт.

2

2852125

DIPSTICK,351.5mm L

Incl. 6 (Used with Straight Tube)

1шт.

2

84140844

DIPSTICK

Incl. 6 (Used with 45 Degree Bend in Tube)

1шт.

3

4895406

EXPANSION PLUG,9.8mm OD

1шт.

4

4897330

HEX SOCKET PLUG,M12 x 1.5

Incl. Ref 5

2шт.

5

4895610

O-RING,2.2mm Thk x 9.3mm ID

1шт.

6

2852127

GASKET,5mm ID, 18mm OD, 13mm OD, 43mm L

1шт.

7

2853410

FILLER CAP,Female

Incl. 11

1шт.

8

2852135

O-RING,2.6mm Thk x 37.7mm ID

1шт.

9

2852134

FLANGE BOLT,Hex, M12 x 1.75 x 25mm

2шт.

10

2853407

NECK FILLER,143, 117.3 mm Length

1шт.

11

2853412

O-RING,0.21" Thk x 1.475" ID

1шт.
