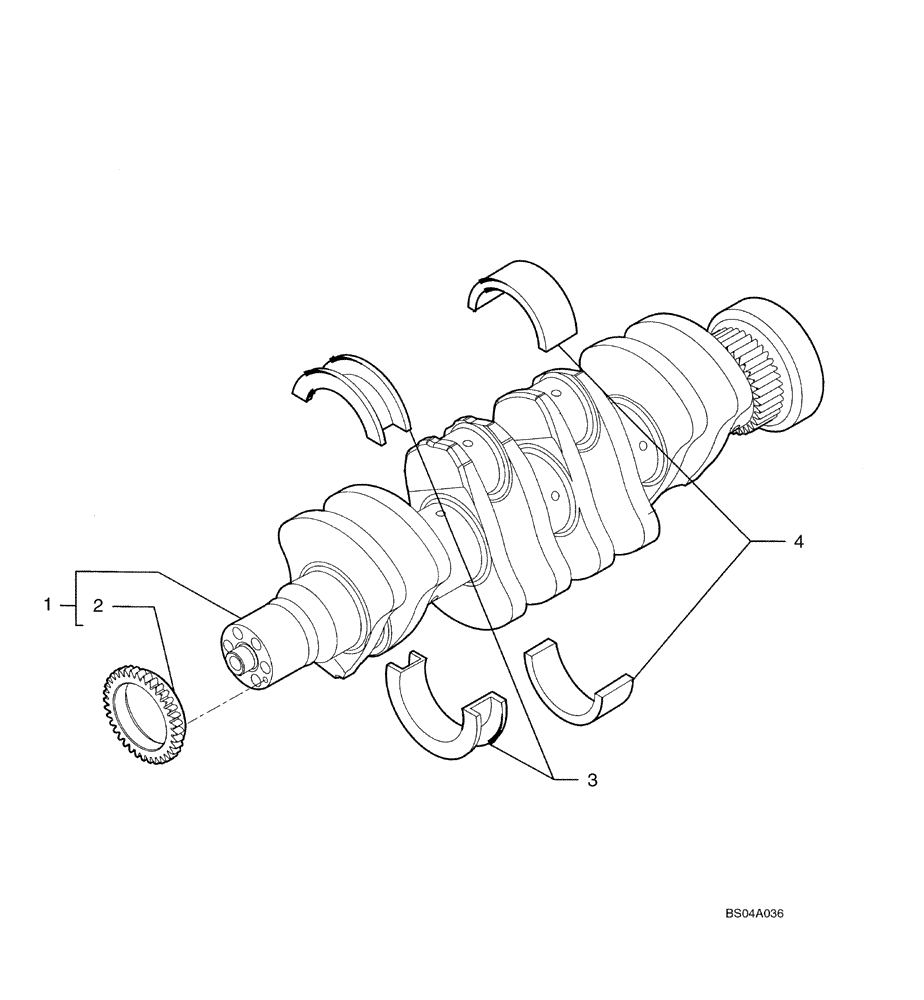

Запчасти Case 570MXT (02-21) - CRANKSHAFT (02) - ENGINE

1

2853822

CRANKSHAFT

Incl. Ref. 2

1шт.

1

2853822R

REMAN-CRANKSHAFT

Reman For New PN 2853822

1шт.

1

2853822C

CORE-CRANKSHAFT

Return Number

1шт.

2

4893386

GEAR,36 T

1шт.

3

2995784

SET OF THRUST WASHER

1шт.

3

2995785

SET OF MAIN BRGS-.25

-0.25

1шт.

3

2995786

SET OF THRUST WASHER

-0.5

1шт.

4

2995787

SET OF STD MAIN BRGS

4шт.

4

2995788

SET OF MAIN BRGS-.25

4шт.

4

2992149

SET OF MAIN BRGS -

; -0.5

4шт.

5

4899046

DOWEL,M6 x 9 L

Not Illustrated

1шт.

84131040

SHORT ENGINE

Kit, Tier 3 Short Block; Includes All Items on Fig 02-09, Ref 1, 6 - 10 On Fig 02-10, Ref 1 - 4 On Fig 02-21, Ref 1, 4 On Fig 02-22, Ref 1 - 4 On Fig 02-23, And Ref 1 - 7 On Fig 02-28

1шт.

84131040R

1шт.

84131040C

Return Number

1шт.

84131040ER

REMAN-SHORT ENGINE

1шт.

84131040EPAC

CORE-SHORT ENGINE

Return Number

1шт.
