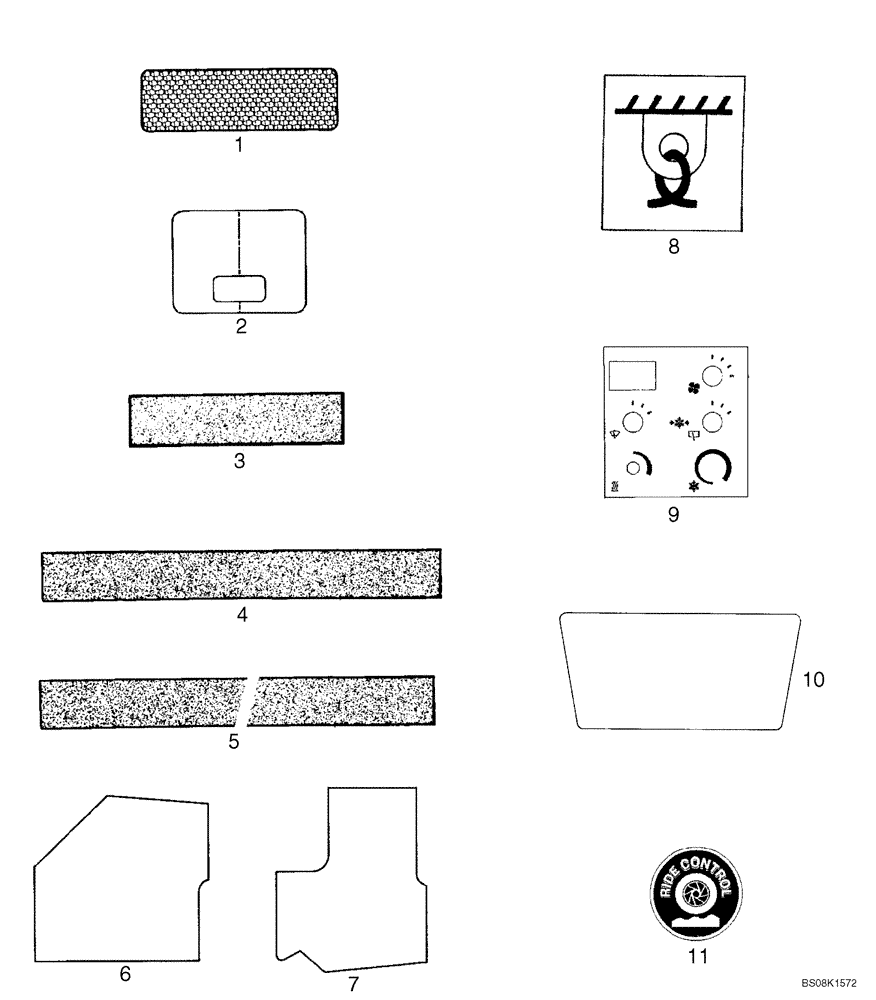

Запчасти Case 570MXT (09-60) - DECALS (09) - CHASSIS/ATTACHMENTS

1

449842A1

REFLECTOR,160mm x 50.8mm H - Red

2 x 6-5/16 in; Red; Reflector

2шт.

2

192450A1

DECAL

Clear Vinyl; Hood

1шт.

3

D55216

PAD,2" x 9"

2 x 9 in

4-10шт.

4

D80270

ANTI-SKID STRIP,635mm / 25 Inch

635 mm (25 in);

3-4шт.

5

307348A1

ANTI-SKID STRIP

700 mm (27-9/16"); 40 gallon fuel tank

2шт.

6

197345A1

LINING

Anti-Skid; Left-Hand; Canopy Models

1шт.

7

197346A1

LINING

Anti-Skid; Right-Hand; Canopy Models

1шт.

8

87626017

DECAL

Tie Down

2шт.

9

135183A1

DECAL

Cab Environmental Control

1шт.

10

87679232

ANTI-SKID STRIP

Hydraulic Tank

1шт.

11

304083A1

DECAL

Ride Control

2шт.

12

T41159

TAPE,82mm x 35mm H

Not Illustrated

1шт.
