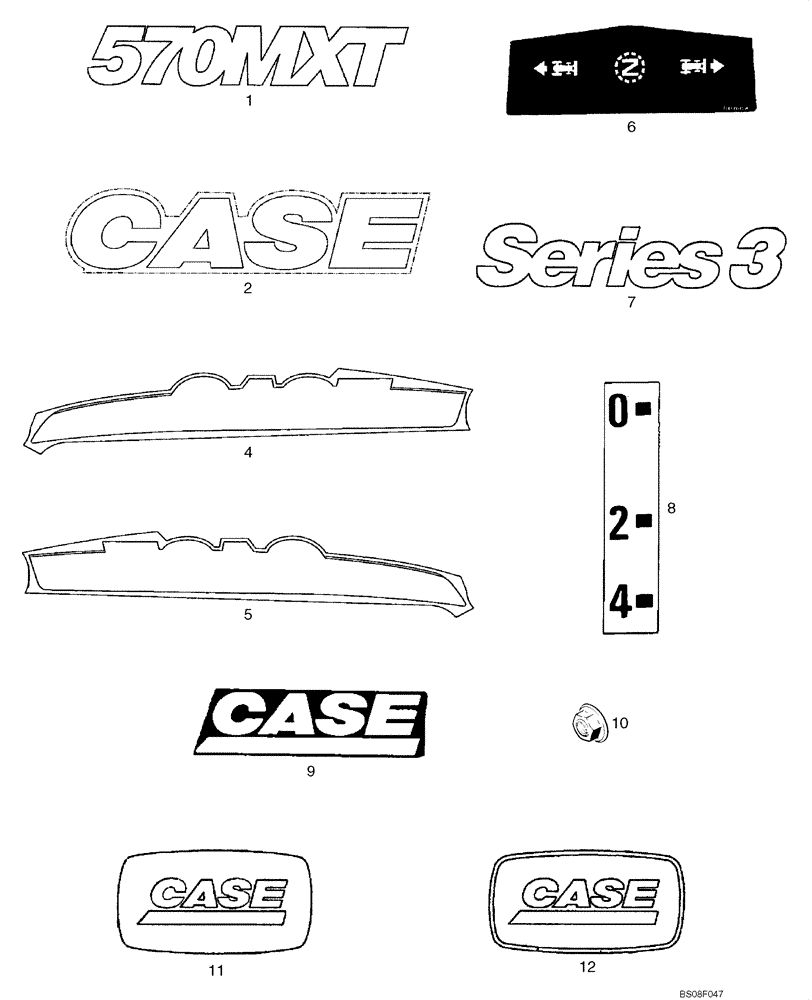

Запчасти Case 570MXT (09-59) - DECALS (09) - CHASSIS/ATTACHMENTS

1

87754368

DECAL

Decal, Model Designation

2шт.

2

87479118

DECAL

630 mm (24-3/4 in); Case Logo; Loader Arm

2шт.

4

87751884

DECAL

Case; Loader Arm Pin Stripe; Left-Hand Stripe; Replaces 87707526

1шт.

5

87751885

DECAL

Case; Loader Arm Pin Stripe; Right-Hand Stripe; Replaces 87707524

1шт.

6

D137615

DECAL

Shuttle Shift

1шт.

7

87412815

DECAL

Series 3

2шт.

8

321-1708

DECAL

0-2-4; Clam Bucket Opening Indicator

1шт.

9

186989A1

EMBLEM

1шт.

10

131-431

PUSH-ON NUT,Self, Threading, 1/4"

2шт.

11

87415931

DECAL

Case, Located On Engine Filters

2шт.

12

87429186

EMBLEM

Case, Located on Engine

1шт.
