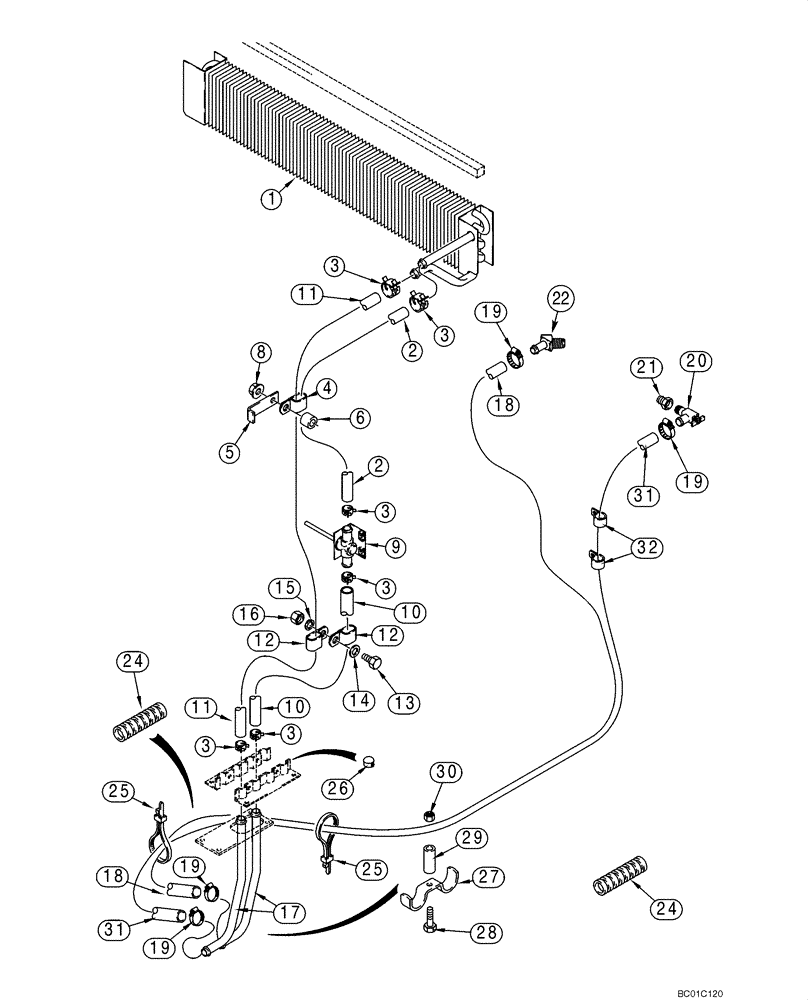

Запчасти Case 570MXT (09-50) - CAB - HEATER (09) - CHASSIS/ATTACHMENTS

1

131124A1

CORE

Mounts In Blower Housing Box; Seal Mounts On Top Of Core On Models With Heat Only

1шт.

2

128412A1

HEATER HOSE,15.50 mm ID x 1100.00 mm, SAE J20, 20R3

Cut From 86997299

1шт.

3

1954736C1

HOSE CLAMP,#24

6шт.

4

470375C1

CLAMP,1", Insul, 3/8" Bolt

2шт.

5

R53634

SHIN

Incl. In Air Conditioning Package

2шт.

6

126907A1

SPACER,10.31 ID x 15.85 OD x 16.7 L

2шт.

8

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

2шт.

9

R52483

VALVE

Temperature Control, Heater

1шт.

10

128410A1

HEATER HOSE,15.50 mm ID x 925.00 mm, SAE J20, 20R3

Cut From 86997299

1шт.

11

128411A1

HEATER HOSE,15.50 mm ID x 2030.00 mm, SAE J20, 20R3

Cut From 86997299

1шт.

12

470375C1

CLAMP,1", Insul, 3/8" Bolt

2шт.

13

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

14

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

15

892-11008

LOCK WASHER,8mm ID

1шт.

16

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

17

428362A1

HEATER TUBE

2шт.

18

225713A1

LARGE HOSE,15.88 mm ID x 2400.00 mm, SAE J20, SAE 20R3

HOSE,LARGE Cut from 86997299; LH Side of Engine

1шт.

19

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

4шт.

20

87686604

SHUT-OFF VALVE

Right-Hand Side Of Engine

1шт.

21

221-1089

REDUCER,Hex, 1/2" x 3/8" NPT

1шт.

22

87686605

STEM

1шт.

24

D132982

PADDLE,26.87mm ID x 400mm L

400 mm (15-3/4 in); Cut From D134399

4шт.

25

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

4шт.

26

353-406

PLUG,Dome, .625" hole, Nylon

Models with Heat Only

2шт.

27

D143427

CLAMP

1шт.

28

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

29

D143417

SPACER,10.31mm ID x 15.88mm OD x 6.4mm L

1шт.

30

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

31

225714A1

LARGE HOSE,15.88 mm ID x 3300.00 mm, SAE J20, SAE 20R3

HOSE,LARGE Cut from 86997299

1шт.

32

D88052

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

2шт.
