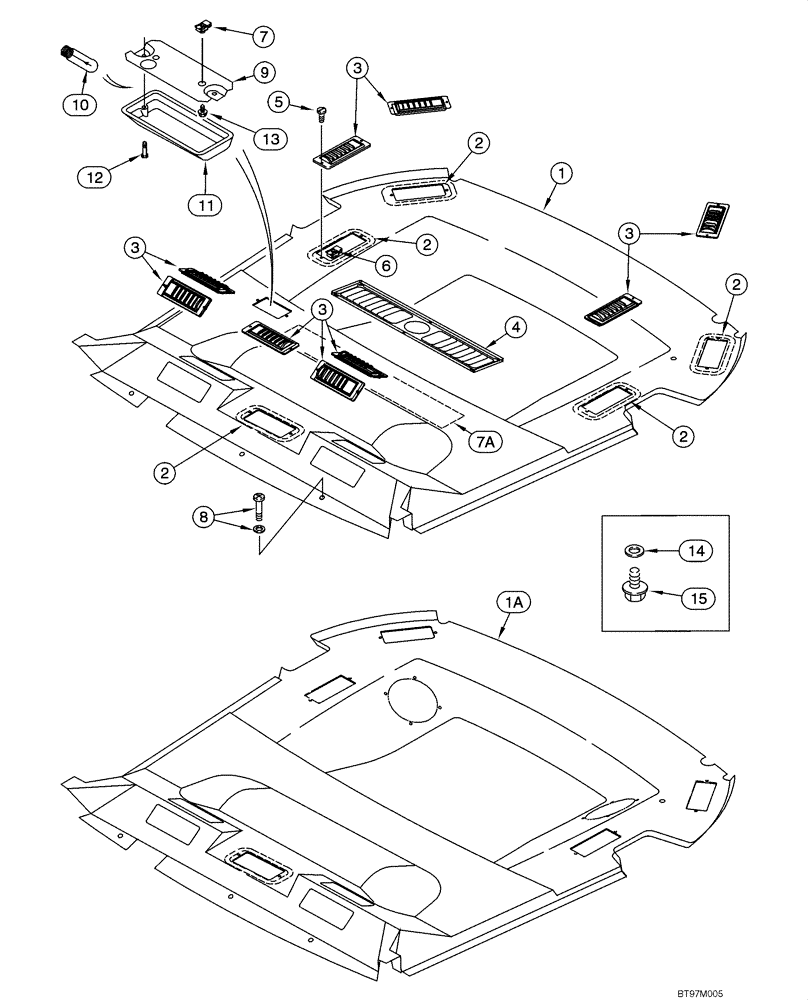

Запчасти Case 570MXT (09-47) - CAB - HEADLINER FILTER, LOUVERS, DOME LAMP (09) - CHASSIS/ATTACHMENTS

404172A1

ROOF LINING

Without Speakers and Radio; Standard Interior; Not Illustrated; Incl. 1, 2 - 7A

1шт.

390772A1

ROOF LINING

Models With Speakers and Radio; Deluxe Interior; Incl. 1A - 7

1шт.

1

NSS

NOT SOLD SEPARAT

Headliner; Without Speakers and Radio

1шт.

1a

NSS

NOT SOLD SEPARAT

Headliner; Models With Speakers and Radio

1шт.

2

131973A1

SEAL

5шт.

3

125688A1

DIFFUSER

Heat and Air

9шт.

4

1331102C2

DIFFUSER

Air Recirculation; Incl. 4A

1шт.

4a

NSS

NOT SOLD SEPARAT

Knob; Not Illustrated

1шт.

5

140-103

SCREW,Cross Pan Hd, #6 - 32 x 3/4"

24шт.

6

125749A1

SPRING NUT

24шт.

7

131-861

SPRING NUT,Tinn, U, #10-24

2шт.

7a

186797A1

SEALING STRIP

Used With 404172A1

1шт.

8

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

With Washer; Used In Production, For Service, Order F64315, 265-16512

5шт.

F64315

WASHER

5шт.

265-16512

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

5шт.

R53755

LIGHT ASSY.,12V

Dome Lamp; Incl. 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

Base

1шт.

10

N14466

BULB

1шт.

11

N14465

LENS

1шт.

12

440-1088

SCREW,Cross Pan Hd, #8-32 x 1/2"

Base to Lens

2шт.

13

281-54512

SCREW,Hex Wshr Hd, #10 - 24 x 3/4"

Lamp To Headliner

2шт.

14

194858A1

CUP WASHER

2шт.

15

D134923

CAP

2шт.
