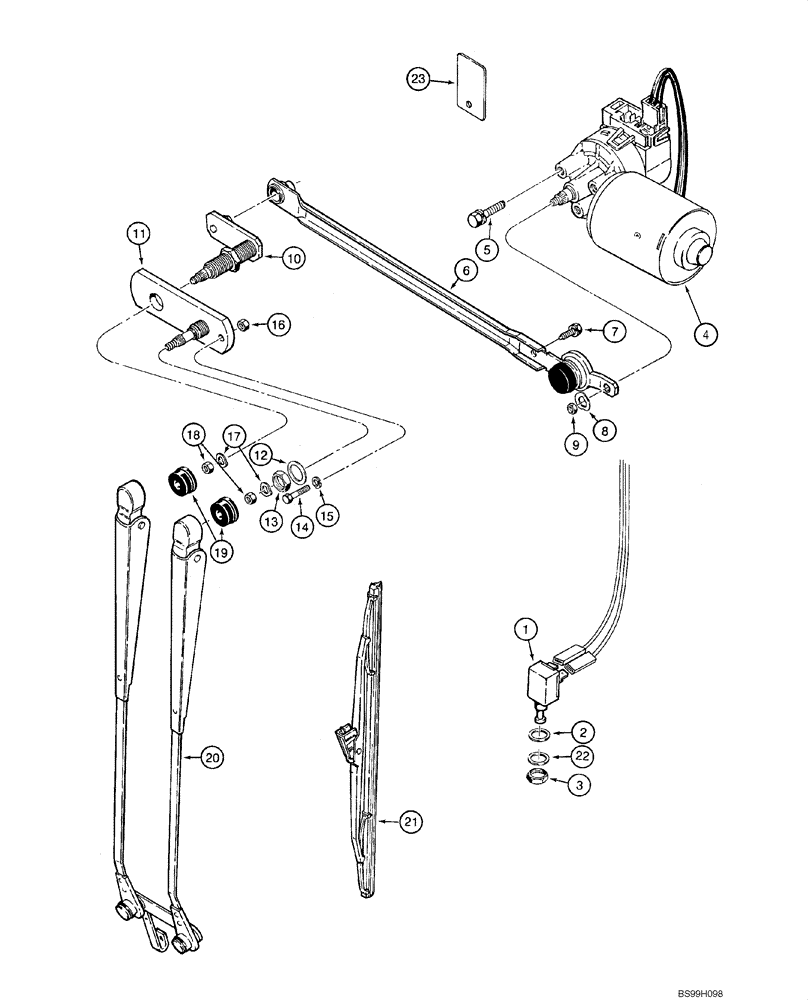

Запчасти Case 570MXT (09-46) - CAB - WIPER, REAR (09) - CHASSIS/ATTACHMENTS

1

A187714

PUSH BUTTON SWITCH

SWITCH - wiper stop

1шт.

2

A165395

WASHER,.50mm ID x 1.0mm OD x .060 Thk

1шт.

3

425-157

JAM NUT,Jam, 7/16"-20, G5

1шт.

4

184118A1

WIPER MOTOR

MOTOR, WIPER 12V

1шт.

5

N8362

CAPTIVE WASHER SCREW,Hex, M6 x 18.50mm, Gr 10.9

3шт.

D128018

LINK

Incl. 6, 7

1шт.

6

NSS

NOT SOLD SEPARAT

Link

1шт.

7

N8362

CAPTIVE WASHER SCREW,Hex, M6 x 18.50mm, Gr 10.9

1шт.

8

N8361

SPRING WASHER

1шт.

9

L112090

NUT

8 mm

1шт.

10

D128020

SHAFT

Incl Nut

1шт.

11

D128021

SHAFT

1шт.

12

L112088

WASHER

1шт.

13

L112087

NUT

1шт.

14

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

15

492-11025

LOCK WASHER,1/4"

1шт.

16

425-104

NUT,1/4"-20, Cl 5

1шт.

17

L112089

WASHER

2шт.

18

L112090

NUT

8 mm

2шт.

19

L112081

CAP

2шт.

20

R52408

WIPER ARM

ARM, WIPER Clip on blade

1шт.

20

87476205

WIPER ARM

Bolt on blade (Not Shown)

1шт.

21

D128022

WIPER BLADE

BLADE, WIPER Bolt on arm

1шт.

21

87476206

WIPER BLADE

Bolt on arm ( Not shown)

1шт.

22

495-21044

WASHER,3/8"

1шт.

23

193707A1

LARGE PLATE

PLATE, LARGE

1шт.
