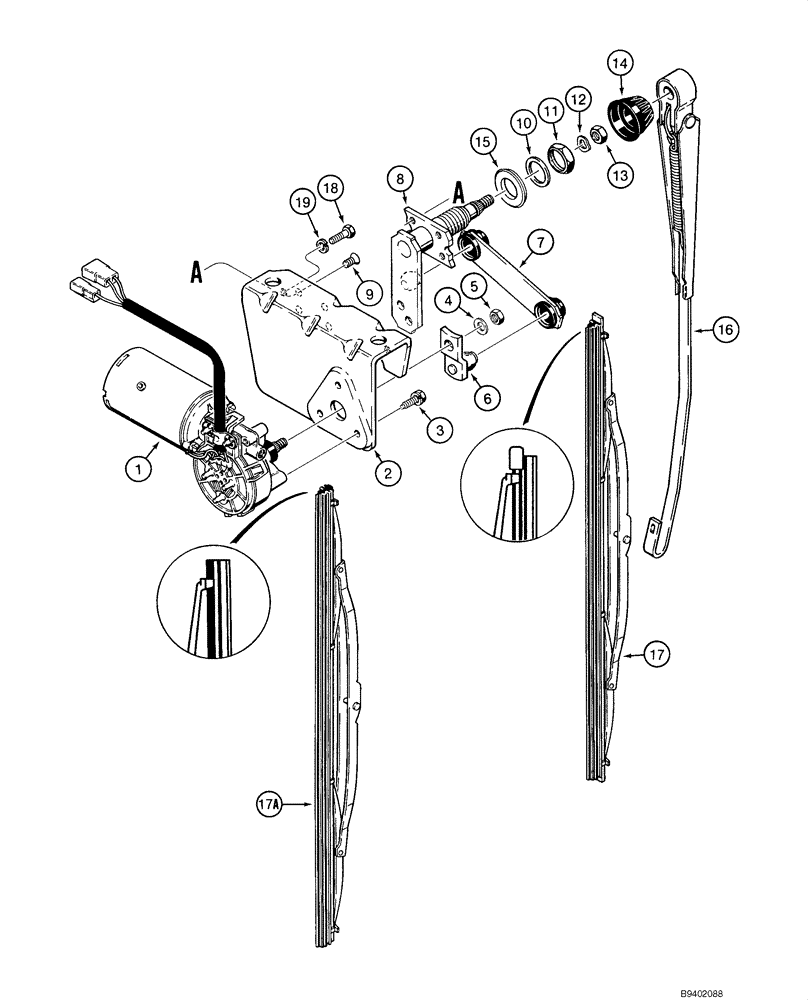

Запчасти Case 570MXT (09-45) - CAB - WIPER, FRONT (09) - CHASSIS/ATTACHMENTS

A186171

WIPER MOTOR

MOTOR, WIPER 12V; Incl. 1 - 9

1шт.

1

47581728

WIPER MOTOR

12V

1шт.

2

N8359

SUPPORT

1шт.

3

N8362

CAPTIVE WASHER SCREW,Hex, M6 x 18.50mm, Gr 10.9

3шт.

4

N8361

SPRING WASHER

1шт.

5

L112090

NUT

8 mm

1шт.

6

N8360

SUPPORT

1шт.

7

N8358

LINK

1шт.

8

N14112

SHAFT

1шт.

9

N8356

SCREW,Phillips Drive, Flat HD, M5 x 8mm

4шт.

10

L112088

WASHER

1шт.

11

L112087

NUT

1шт.

12

L112089

WASHER

1шт.

13

L112090

NUT

8 mm

1шт.

14

L112081

CAP

1шт.

15

R54241

SPACER

1шт.

16

D128745

WIPER ARM

ARM, WIPER

1шт.

17

A187909

WIPER BLADE

BLADE, WIPER 500 mm; Used In Production, For Service, Order 132024A1

1шт.

17a

132024A1

WIPER BLADE

For Rubber Blade Refill, Order 132025A1

1шт.

132025A1

WIPER BLADE

500 mm

1шт.

18

414-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

2шт.

19

492-11025

LOCK WASHER,1/4"

2шт.
