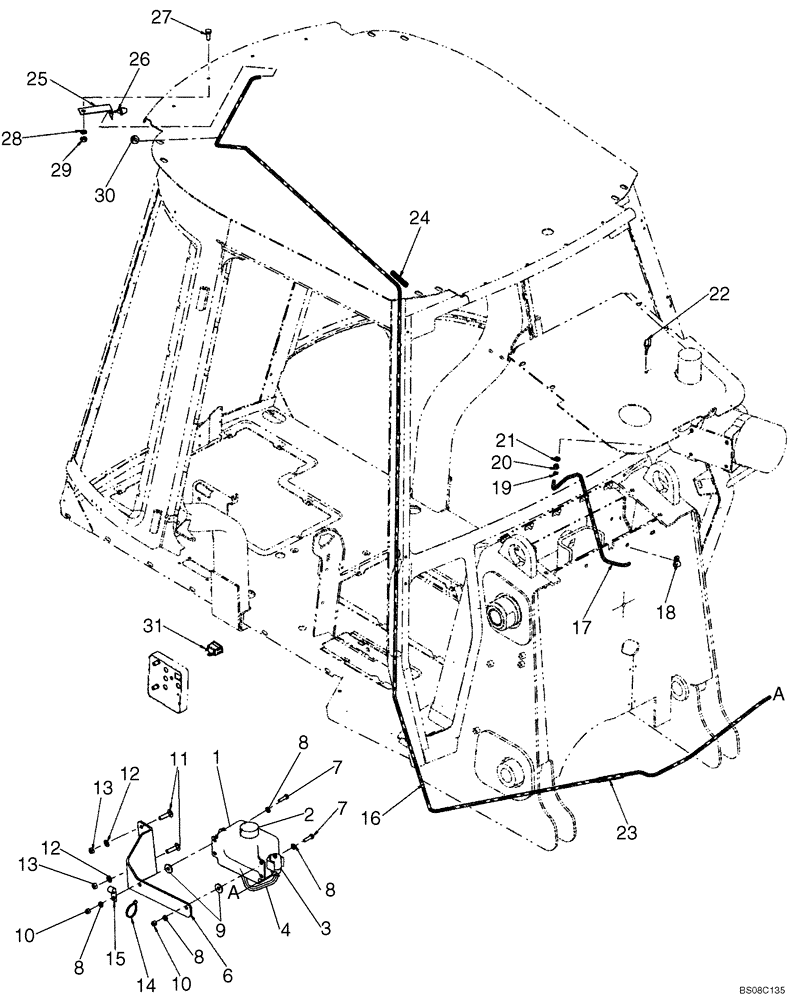

Запчасти Case 570MXT (09-44) - CAB - WASHER, WINDSHIELD (09) - CHASSIS/ATTACHMENTS

87448685

WINDSHIELD WASHER

Incl. 1 - 5

1шт.

1

87449514

RESERVOIR, WINDSHIEL

2 qt.

1шт.

2

86507190

CAP

1шт.

3

86507198

PUMP,Windshield Washer

2шт.

4

87449517

HOSE, BULK

HOSE, METERS 203 mm (8 in)

1шт.

5

529070

CABLE TIE,368.3mm L

CABLE STRAP Not Illustrated

1шт.

6

87693518

BRACKET, SUPPORTING

Bracket

1шт.

7

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

8

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

4шт.

9

496-41041

WASHER,13/32" x 1 1/8" x .134"

2шт.

10

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

11

711-10040

CARRIAGE BOLT,Short NK, M10 x 40, Cl8.8, Full Thd

2шт.

12

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

13

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

14

529070

CABLE TIE,368.3mm L

CABLE STRAP

3шт.

15

D147383

CLIP,5/8" J

1шт.

16

87442091

HOSE, BULK

HOSE, METERS 5020 mm (197-5/8/in); Rear Washer

1шт.

17

87326726

HOSE, BULK

HOSE, METERS 700 mm (27-1/2 in); Front Washer

1шт.

18

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

1шт.

19

87444176

HOSE CLIP

1шт.

20

425-106

NUT,3/8"-16, Cl 5

1шт.

21

492-11038

LOCK WASHER,3/8"

1шт.

22

284154A1

NOZZLE,3/8" - 16

1шт.

23

408966A1

GUARD

Rear Washer Hose, Lower; 2200 mm (86-5/8 in), Cut From 397155A2

1шт.

24

408965A1

GUARD

Rear Washer Hose, Upper; 550 mm (21-11/16 in), Cut From 397155A2

1шт.

25

305818A1

SUPPORT

1шт.

26

E43769

SPRAY

1шт.

27

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

28

892-11010

LOCK WASHER,M10

1шт.

29

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

30

87442448

GROMMET

2шт.

31

144900A1

WINDSHIELD WASHER SW

Windshield Washer, Front and Rear, Mounts In Cab Control Panel

1шт.
