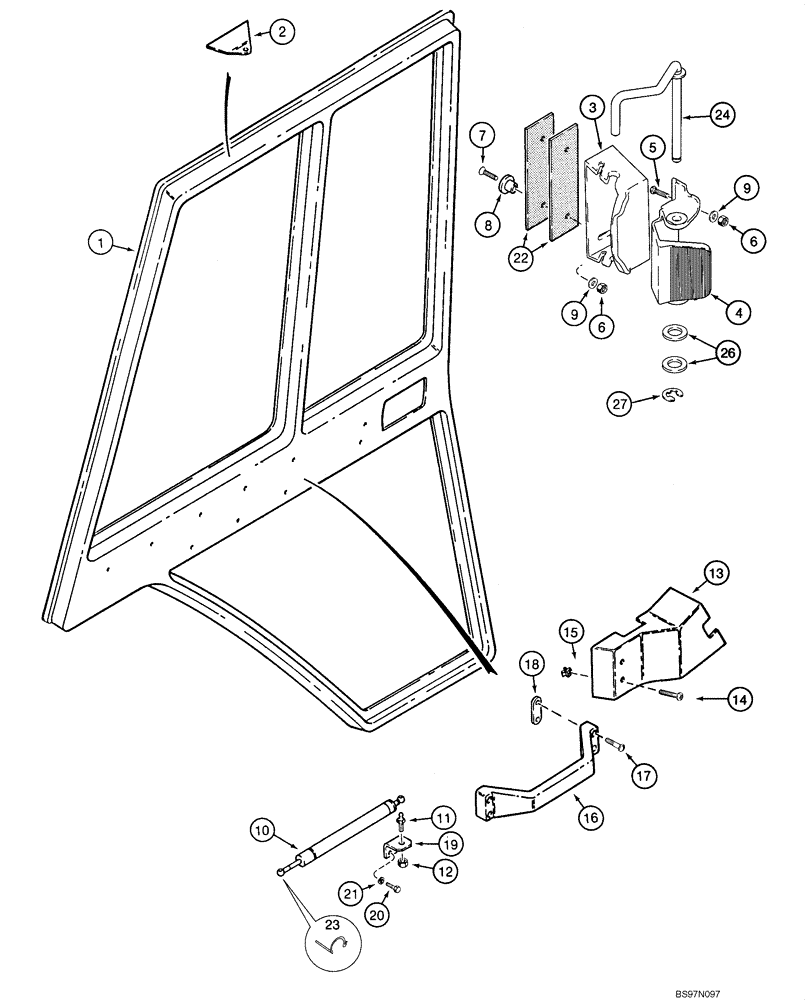

Запчасти Case 570MXT (09-40) - CAB - DOORS, INTERIOR (09) - CHASSIS/ATTACHMENTS

1

137868A3

DOOR ASSY.

Left-Hand Door; Incl. 2

1шт.

1a

137869A3

DOOR ASSY.

Right-Hand Door; Incl. 2

1шт.

2

R53562

BRACKET

Welded On; Cable

1шт.

3

281069A1

HANDLE

Window

2шт.

4

281068A1

HANDLE

Window

2шт.

5

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

4шт.

6

F45165

SPECIAL NUT,#10-24

No. 10

8шт.

7

142-104

SCREW,Oval HD, #10 - 24 x 1"

4шт.

8

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

Nylon

4шт.

9

195-81023

WASHER,5.94mm ID x 14.28mm OD x 1.25mm Thk

8шт.

10

F44881

CYLINDER ASSY.

2шт.

11

1340345C1

BALL STUD

BALL PIN

2шт.

12

230-4215

NUT,5/16"-18, GA

2шт.

13

108938A2

PANEL

Left-Hand Door

1шт.

13a

108936A2

PANEL

Right-Hand Door

1шт.

14

260-16524

SELF-TAP SCREW,Phillips Drive, Pan HD, #10 - 16 x 1-1/2"

4шт.

15

R53000

GROMMET

4шт.

16

1958970C1

HANDLE

2шт.

17

165-129

HEX SOC SCREW,Self-Lkg, 1/4" - 20 x 3/4"

8шт.

18

1971368C1

PLATE ASSY.

4шт.

19

1977399C1

SUPPORT ASSY.

2шт.

20

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

21

492-11025

LOCK WASHER,1/4"

4шт.

22

R54047

PAD,30mm OD x 0.76mm Thk

4шт.

23

F44883

CLIP,DIN 71805 - S10

2шт.

24

291129A1

STEM

Hold Open; Left-Hand

1шт.

25

280336A1

STEM

Hold Open; Right-Hand; Not Illustrated

1шт.

26

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

27

100-3331

SNAP RING,#X31, .243" Dia, E-Type

2шт.
