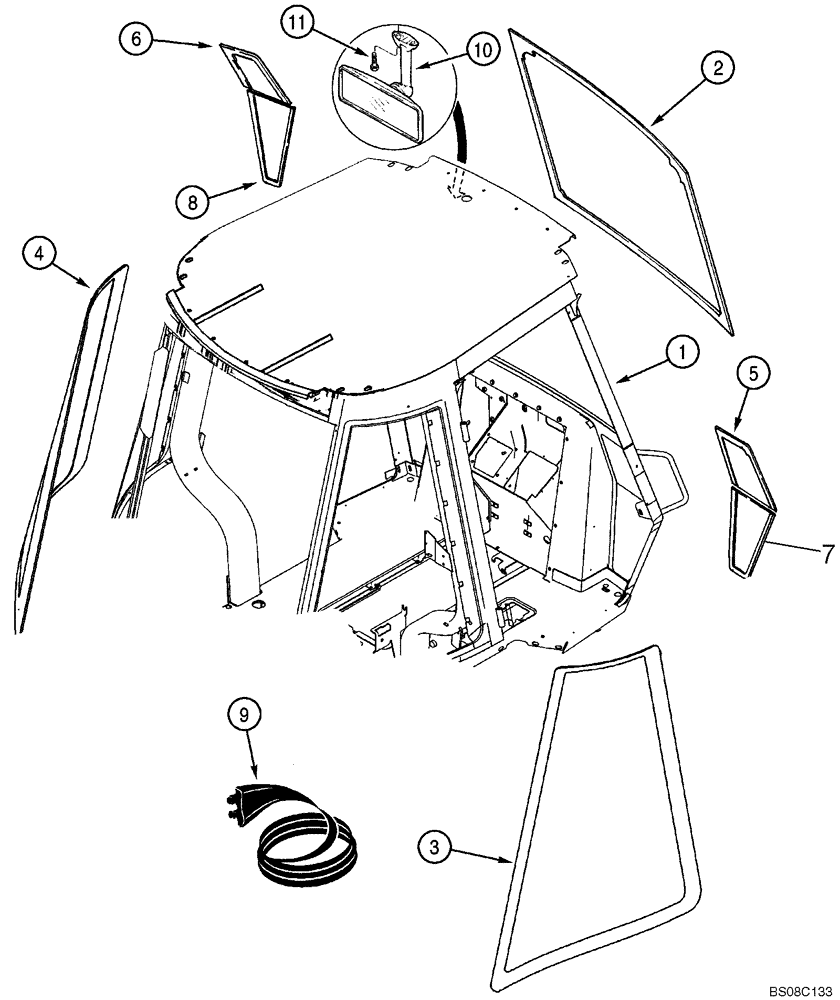

Запчасти Case 570MXT (09-37) - CAB - GLASS AND MIRROR (09) - CHASSIS/ATTACHMENTS

1

87566949

CAB

Complete With Heat; Order From Machinery Price List; 3 Pt Hitch With Straight Draft Arms

1шт.

1

87557495

CAB

Complete With Heat and Air Conditioning; Order From Machinery Price List; 3 Pt Hitch With Straight Draft Arms

1шт.

2

97290C1

GLASS

1шт.

3

87546576

CAB GLASS

Right Rear Quarter Panel

1шт.

4

87546577

CAB GLASS

Left Rear Quarter Panel

1шт.

5

107230A1

GLASS

Right-Hand

1шт.

6

107233A1

GLASS

Left-Hand

1шт.

7

107232A1

GLASS

1шт.

8

107234A1

GLASS

1шт.

9

108513A1

SEAL, GLASS,290mm L

290 mm (11-7/16 in); Front Knee Glass

2шт.

10

87406922

REAR VIEW MIRROR

Interior

1шт.

11

286-56520

SELF-TAP SCREW,Cross Fil Hd, #10-24 x 1 1/4"

2шт.

12

87546575

CAB GLASS

Upper Rear; Not Illustrated

1шт.
