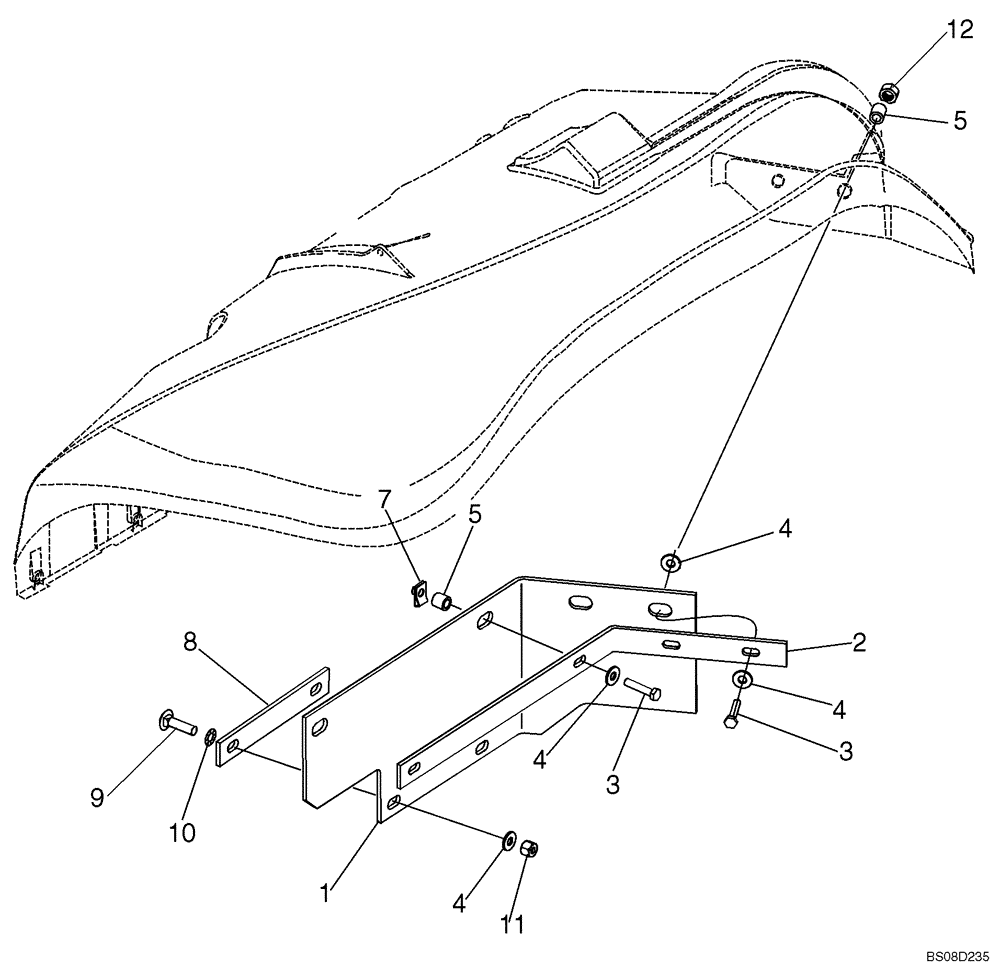

Запчасти Case 570MXT (09-31) - GUARD, MUD (09) - CHASSIS/ATTACHMENTS

1

87592763

GUARD

Mud Guard

1шт.

2

87592762

SECURING STRAP

Mud Guard Strip

1шт.

3

614-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8, Full Thd

4шт.

4

K691987

WASHER,10.5mm ID x 30mm OD x 3.0mm Thk

Flat, M10

8шт.

5

D146035

SPACER,10.31mm ID x 16mm OD x 15.5mm L

4шт.

7

833-40408

NUT,M8, U

2шт.

8

362557A1

STRIP

Reinforcing Bar

1шт.

9

43473

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

10

368417A1

WASHER

2шт.

11

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

12

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.
