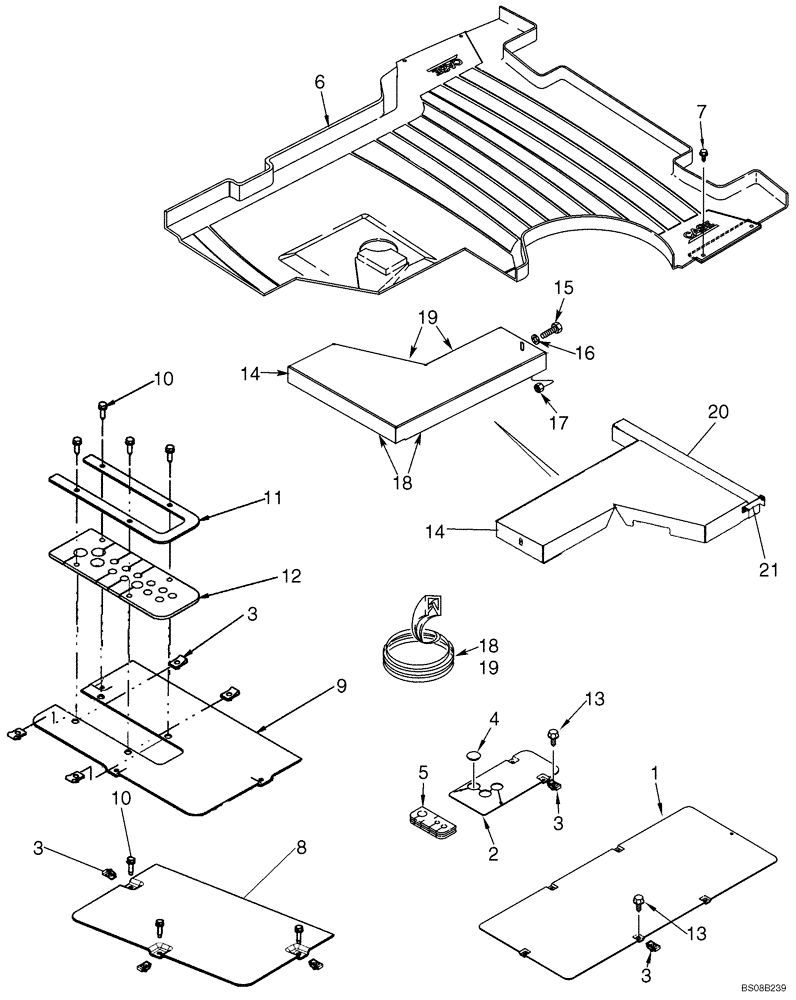

Запчасти Case 570MXT (09-27) - PLATES, FLOOR - FLOORMATS (09) - CHASSIS/ATTACHMENTS

1

234913A1

LARGE PLATE

PLATE, LARGE Front

1шт.

2

87436076

COVER

Loader Control Lever

1шт.

3

833-40406

NUT,M6, U

13-17шт.

4

353-422

PLUG,Dome, 1.250" hole, Nylon

If Used

1шт.

5

393623A1

GROMMET

Insulator

1шт.

6

87684712

FLOOR MAT

Floormat; Cab Models

1шт.

7

280-16516

SELF-TAP SCREW,Hex Wash Hd, #10 x 1"

4шт.

8

225101A1

CONTACT

Rear; Models Without Three Point Hitch

1шт.

9

399756A1

PLATE

Rear; Models With Three Point Hitch

1шт.

10

435637A2

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9

With Washer; M6 x 25

3-7шт.

11

400659A1

STRAP

Models With Three Point Hitch

1шт.

12

399748A4

GROMMET

Models With Three Point Hitch

1шт.

13

233724A1

FLANGE BOLT,Hex, M6 x 1 x 25mm

M6 x 25

6-10шт.

14

418490A3

COVER

Models Without Three Point Hitch

1шт.

15

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

16

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

17

833-40310

NUT,M10, U

1шт.

18

191047A1

MOLDING

315 mm (12-13/32 in) lg

1шт.

19

191046A1

ORNAMENTAL STRIP

650 mm

2шт.

20

87681792

SEAL

Floor

1шт.

21

87680621

BRACKET

Floor Closure

1шт.
