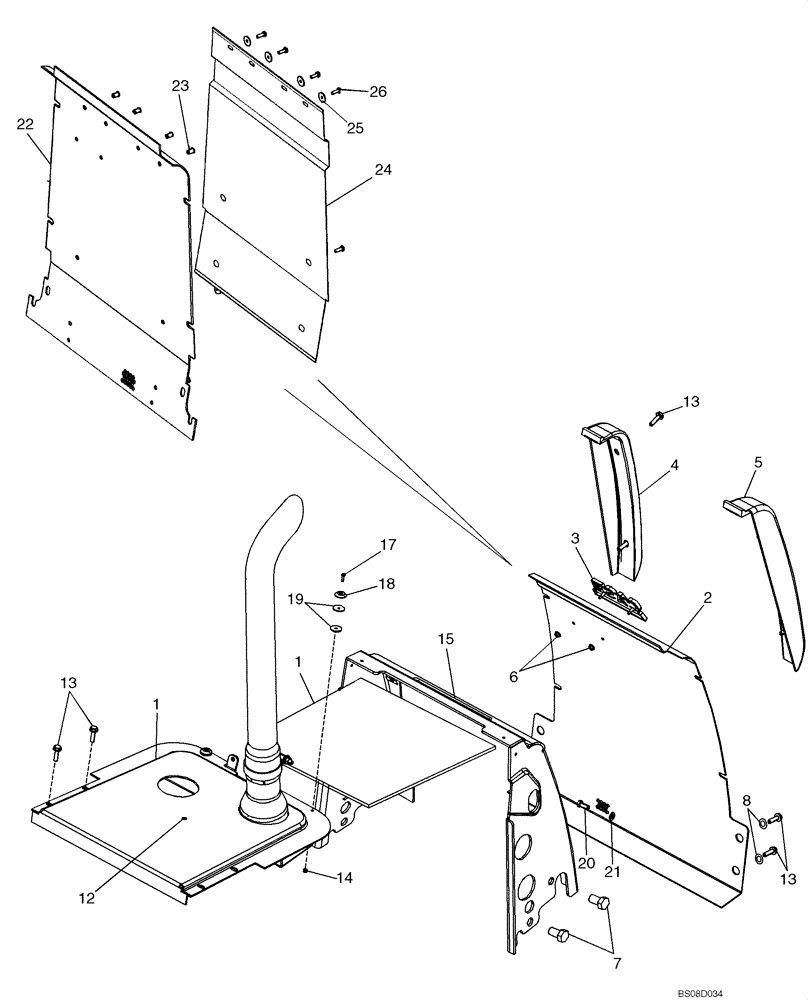

Запчасти Case 570MXT (09-26) - HOOD - GRILLE, CHAFF SCREEN AND RADIATOR WRAPPER (09) - CHASSIS/ATTACHMENTS

1

87687225

ENGINE HOOD

PLATE, Hood

1шт.

2

87402618

SCREEN

GRILLE

1шт.

3

186989A1

EMBLEM

1шт.

4

381927A1

BUMPER

LH

1шт.

5

381926A1

BUMPER

RH

1шт.

6

131-431

PUSH-ON NUT,Self, Threading, 1/4"

2шт.

7

614-20035

BOLT,Hex, M20 x 2.5 x 35mm, Cl 8.8, Full Thd

4шт.

8

87423817

WASHER,11mm ID x 40mm OD x 2mm Thk

4шт.

12

353-402

PLUG,Dome, .375" hole, Nylon

1шт.

13

392828A2

BOLT,M10-1.5 x 40mm L W/CAPTURED WASHER

12шт.

14

231-14109

LOCK NUT,#10-24, GB

2шт.

15

87475209

WRAPPER

Wrapper, Radiator

1шт.

16

187389A1

LARGE PLATE

PLATE, LARGE

1шт.

17

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

2шт.

18

109879A1

SPACER,5.5mm ID x 30mm OD

Hood

2шт.

19

185325A1

SPACER,5.5mm ID x 30mm OD x 2mm L

Hood Button

4шт.

20

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

21

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

22

355542A2

GRILLE

1шт.

23

255447A1

THREADED INSERT

8шт.

24

253889A1

SCREEN

Chaff

1шт.

25

257382A1

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

8шт.

26

257381A1

BOLT

8шт.
