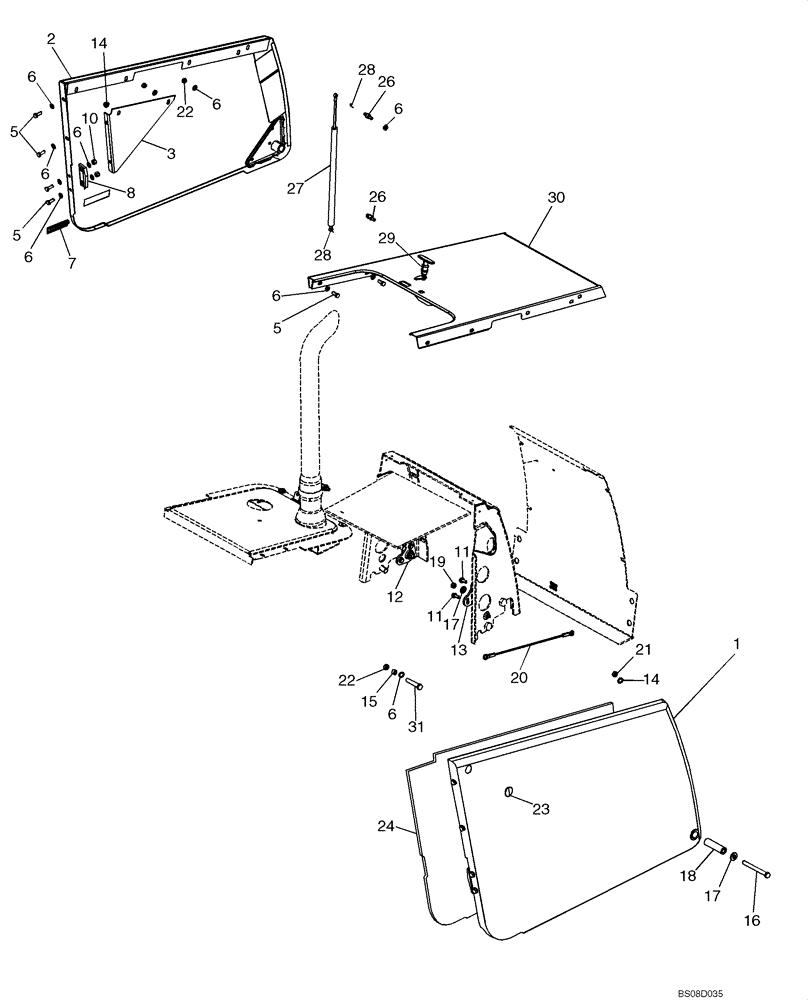

Запчасти Case 570MXT (09-25) - HOOD - PANELS, SIDE (09) - CHASSIS/ATTACHMENTS

1

359425A1

PANEL, SIDE

RH

1шт.

2

359426A1

PANEL, SIDE

LH

1шт.

3

139492A1

LARGE PLATE

PLATE, LARGE LH

1шт.

4

139490A1

LARGE PLATE

PLATE, LARGE RH; Not Illustrated

1шт.

5

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

14шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

27шт.

7

183168A1

HANDLE

LH

1шт.

8

D143715

SUPPORT

RH

1шт.

9

D143714

SUPPORT

RH; Not Illustrated

1шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

11

121856A1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

4шт.

12

310843A1

PIVOT

LH

1шт.

13

310842A1

PIVOT

1шт.

14

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

3шт.

15

396605A1

SPACER,10.31mm ID x 15.88mm OD x 10mm L

1шт.

16

814-12120

BOLT,Hex, M12 x 1.75 x 120mm, Cl 8.8

2шт.

17

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

18

299249A1

TUBE,13.5 mm ID, 25.36 mm OD, 90 mm Length

2шт.

19

829-1412

NUT,M12, Cl 10.9

2шт.

20

144908A2

CABLE,638mm L

1шт.

21

D143417

SPACER,10.31mm ID x 15.88mm OD x 6.4mm L

1шт.

22

829-1410

NUT,M10 x 1.5, Cl 10.9

7шт.

23

D140267

PLUG,30.16mm OD

2шт.

24

297836A1

LARGE PLATE

PLATE, LARGE Insulation, RH

1шт.

25

297837A1

LARGE PLATE

PLATE, LARGE Insulation, LH; Not Illustrated

1шт.

26

139363A1

BALL JOINT,M10 x 1.5mm x 42mm L

4шт.

27

114980A1

GAS STRUT

Spring

2шт.

28

F44883

CLIP,DIN 71805 - S10

4шт.

29

175599A1

LATCH

T-Handle

1шт.

30

401843A1

HOOD

1шт.

31

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.
