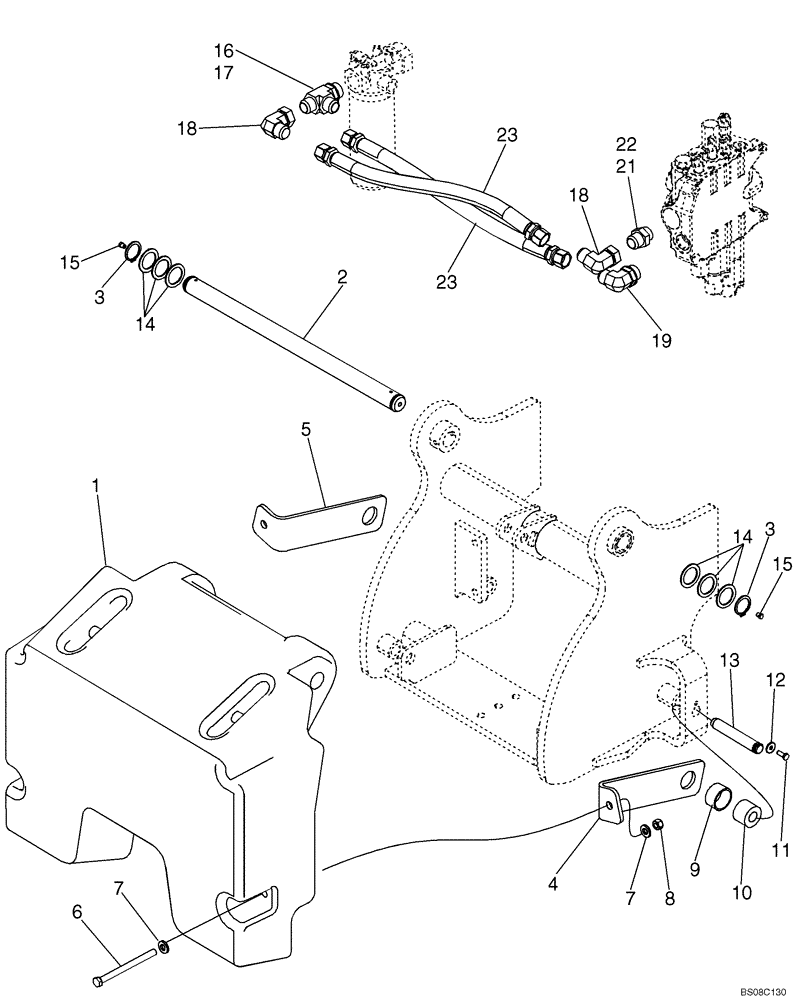

Запчасти Case 570MXT (09-18) - COUNTERWEIGHT, REAR (3000 LBS) (09) - CHASSIS/ATTACHMENTS

1

87341415

COUNTERWEIGHT,Rear, 3000 Lb

Rear

1шт.

2

87518226

PIN

1шт.

3

103-16175

SNAP RING,#175, Ext

2шт.

4

87521725

MOUNTING PLATE

RH

1шт.

5

87521726

MOUNTING PLATE

LH

1шт.

6

814-16200

BOLT,Hex, M16 x 2 x 200mm, Cl 8.8

2шт.

7

896-16016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

4шт.

8

829-1416

NUT,M16, Cl 10

2шт.

9

87592901

SPACER

Inner

2шт.

10

87592902

SPACER

Outer

2шт.

11

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

12

K691987

WASHER,10.5mm ID x 30mm OD x 3.0mm Thk

2шт.

13

87389840

GROOVED PIN

2шт.

14

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

6шт.

15

217-402

PLUG,Hex Hd, 1/8" - 27 NPT

2шт.

16

218-5245

TEE,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. 17

1шт.

17

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

18

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

2шт.

19

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. 20

1шт.

20

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

21

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. 22

1шт.

22

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

23

87454466

HOSE ASSY.,3/4" x 565mm L, 12-AT3K

2шт.

REF

INSTRUCTION

BOX SCRAPER

1шт.

234326A1

ATTACHMENT

BOX, 84 inch Scarifier W/Hd Grdr Edge; Component Parts Not Serviced Separately; Not Illustrated

1шт.
