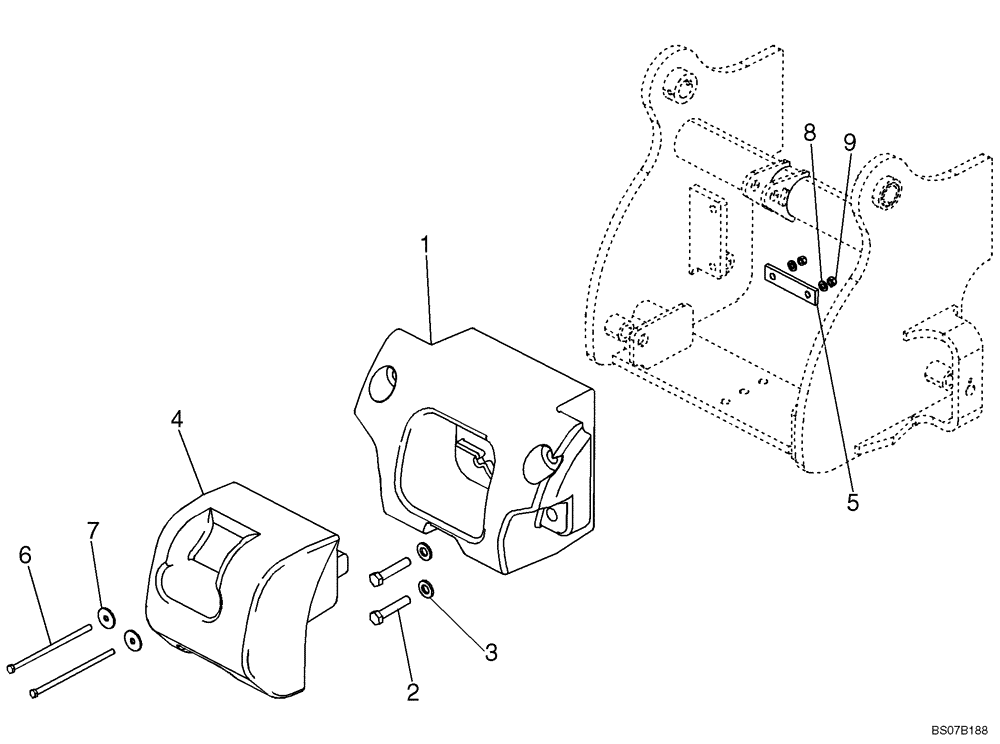

Запчасти Case 570MXT (09-17) - COUNTERWEIGHT, REAR (W/PTO ACCESS) (09) - CHASSIS/ATTACHMENTS

1

87695372

COUNTERWEIGHT

Rear, 239 kg (527 lbs); With PTO Access

1шт.

2

87516998

SPECIAL BOLT,Hex, M20 x 2.5 x 100mm, Class 10.9

M20 x 100, With Loctite

4шт.

3

87313544

WASHER,22mm ID x 44mm OD x 5 mm Thk

Hardened

4шт.

4

87579174

COUNTERWEIGHT,Filler, 500 Lb

219.3 kg (483 lbs) Filler

1шт.

5

87571073

MOUNTING PLATE

Weight

1шт.

6

84019085

BOLT,Hex, M12 x 260mm, Cl 8.8

2шт.

7

496-81018

WASHER,0.521" ID x 2" OD x 0.108 Thk, ZND

2шт.

8

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

9

829-1412

NUT,M12, Cl 10.9

2шт.
