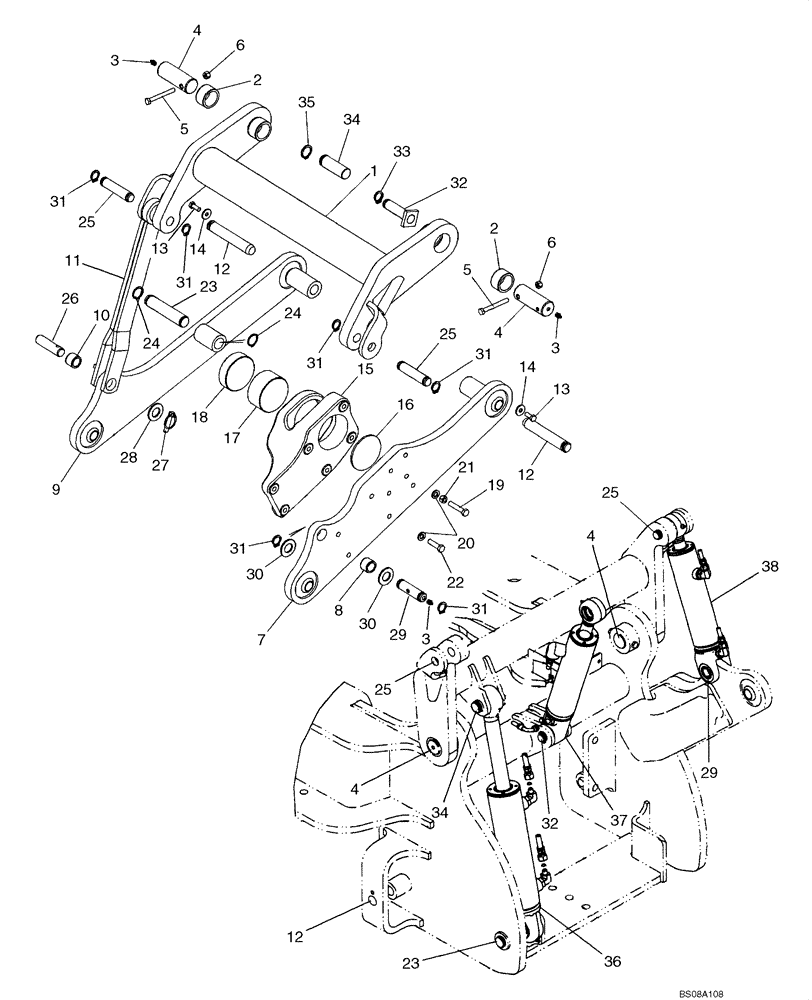

Запчасти Case 570MXT (09-13) - FRAME - HITCH, THREE POINT (09) - CHASSIS/ATTACHMENTS

1

87565751

PIVOT PLATE

Rockshaft Arm, Frame; Incl. Ref 2

1шт.

2

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

2шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

3шт.

4

87389562

PIN

Rockshaft Arm to Chassis Frame

2шт.

5

814-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

2шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

7

87565752

ARM/LIFTING DEVICE

Plate, Right-Hand, Caliper Side; Incl. Ref 8

1шт.

8

D51608

BUSHING,25.63mm ID x 34.92mm OD x 25.4mm L

1шт.

9

87565753

ARM/LIFTING DEVICE

Plate, Left-Hand; Incl. Ref 10

1шт.

10

D51608

BUSHING,25.63mm ID x 34.92mm OD x 25.4mm L

1шт.

11

86981810

STRUT

Stationary; Not Used on Models With Dual Tilt Cylinders

1шт.

12

87389840

GROOVED PIN

Draft Arms to Chassis Frame

2шт.

13

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

14

K691987

WASHER,10.5mm ID x 30mm OD x 3.0mm Thk

2шт.

15

87519826

CASTING

Draft Arm Caliper

1шт.

16

87534158

THRUST WASHER,100mm OD x 4.37mm Thk

Thrust Washer

1шт.

17

87515456

WEAR PAD

1шт.

18

87515429

WEAR PAD

1шт.

19

1637759

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9, Full Thd

3шт.

20

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

9шт.

21

829-1412

NUT,M12, Cl 10.9

3шт.

22

827-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

6шт.

23

87389561

GROOVED PIN,31.7mm OD x 154.4mm L

Lift Cylinder Closed End

1шт.

24

103-16125

SNAP RING,#125, Ext

2шт.

25

87392172

GROOVED PIN,25.32mm OD x 117.1mm L

Tilt Cylinder Rod End and Upper Support Strut to Rockshaft Arm

2шт.

26

433059A1

PIN ASSY.

Lower Support Strut to Draft Arm; Not used on Models With Dual Tilt Cylinder

1шт.

27

D33805

PIN

Lock, Replaces 339466A1 Pin Used in Production; Not Used on Models With Dual Tilt Cylinder

1шт.

28

495-11106

WASHER,1", SAE

1шт.

29

87317419

GROOVED PIN,25.34mm OD x 95mm L

Tilt Cylinder Closed End; Used on Models With Dual Tilt Cylinders; With Hole For Grease Fitting

1шт.

30

495-11106

WASHER,1", SAE

Used on Models With Dual Tilt Cylinders

2-4шт.

31

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

Used on Models With Dual Tilt Cylinders

4-6шт.

32

199189A1

PIN,25.4mm OD x 104.1mm L

Pitch Cylinder closed End to Chassis Frame

1шт.

33

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

1шт.

34

199243A1

PIN,31.8mm OD x 96.5mm L

Lift Cylinder Rod End to Rockshaft Arm

1шт.

35

103-16125

SNAP RING,#125, Ext

1шт.

36

86982542

LIFT CYLINDER,Double Acting, 38.1mm Rod, 207.2mm Stroke

Three-Point Hitch Lift Cylinder, 76 ID x 207 mm strk; See Figure 08-28

1шт.

37

87602156

HYDRAULIC CYLINDER,Double Acting, 31.8mm Rod, 178mm Stroke

Three-Point Hitch Pitch Cylinder, for single cyl. system, 64 ID x 178 mm strk; See Figure 08-30

1шт.

37

87602156R

REMAN-HYD CYLINDER

Reman Three-Point Hitch Pitch Cylinder, for single cyl. system, 64 ID x 178 mm strk; See Figure 08-30

1шт.

37

87602156C

CORE-HYD CYLINDER

Return Number

1шт.

37

84214699

CYLINDER,Double Acting, 31.8mm Rod, 178mm Stroke

Three-Point Hitch Pitch Cylinder, for dual cyl. system, See Figure 08-30

2шт.

38

86982482

CYLINDER ASSY.,Double Acting, 31.8mm Rod, 160mm Stroke

Three Point Hitch Tilt Cylinder, 64 ID x 160 mm strk; See Figure 08-29

1-2шт.
