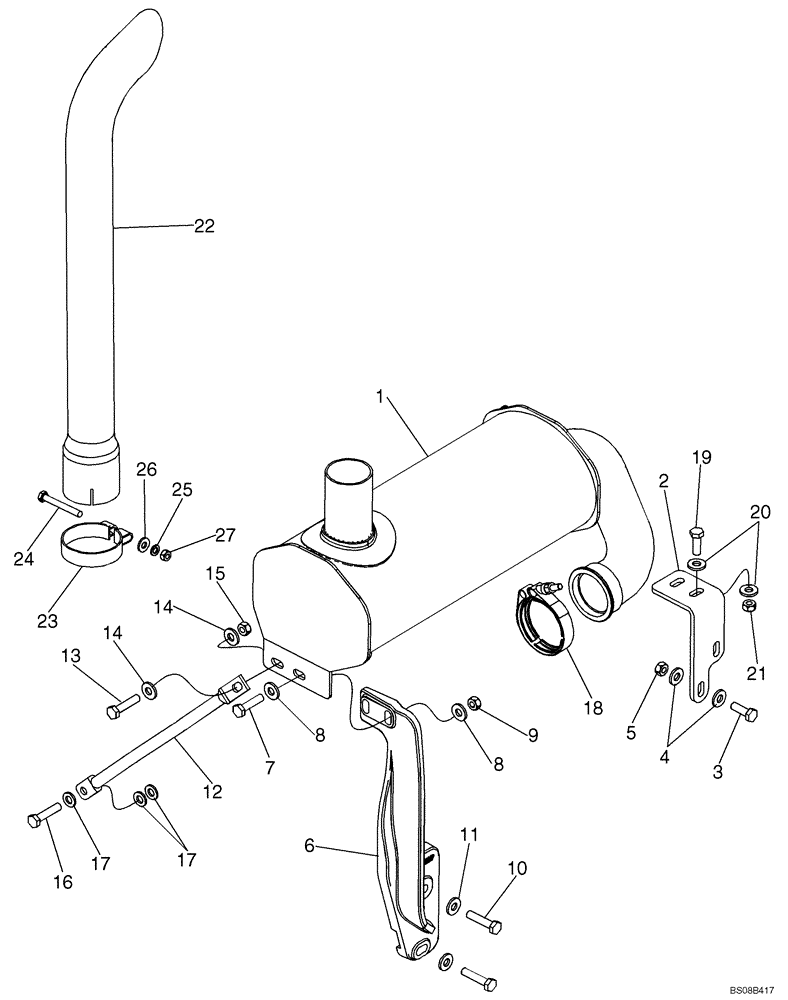

Запчасти Case 570MXT (02-06) - MUFFLER - EXHAUST SYSTEM (02) - ENGINE

1

87310639

MUFFLER

1шт.

2

87423531

BRACKET, SUPPORTING

1шт.

3

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

4

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

5

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

6

87451167

SUPPORT

1шт.

7

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

1шт.

8

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

9

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

10

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

2шт.

11

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

12

87442357

BRACE

1шт.

13

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

1шт.

14

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

15

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

16

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

17

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

3шт.

18

A170467

CLAMP,72mm ID

1шт.

19

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

20

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

21

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

22

87309656

EXHAUST SYSTEM PIPE

1шт.

23

87437804

PIPE CLAMP,94mm ID

1шт.

24

614-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8, Full Thd

1шт.

25

892-11010

LOCK WASHER,M10

1шт.

26

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

1шт.

27

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.
